Screw in Tubular HeaterDownloadsInquiry Form

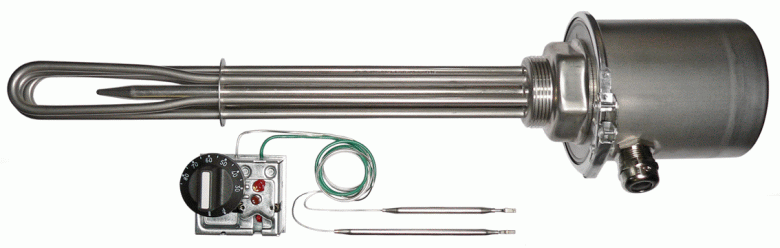

Screw in Tubular Heater Screw in Tubular Heater Screw in Tubular Heaters are the standard solution for all heating processes with liquids or gas. The heater is installed in a tank or a tube system by the G1½" screw fitting. The IP54 connection head, fitting and tubular heater consists of stainless steel. The tube sheath material 1.4529 is resistant to sulphite, phosphors and hydrochloride media.

All types are available

  • without controller and limiter
  • with controller (adjustable from 30 ° to 85 °C, freezing protection at 7 °C)
  • with limiter (adjusted to 110 °C)
  • with controller-limiter-combination
Wattage Voltage Thread IMM*¹ in mm H in mm L in mm D in mm H1 in mm
*¹IMM = Immersion depth
2000W (3x 666W) 3x 230V 1½ G 250 ± 10 132 382 ± 10 93,5 119
3000W (3x 1000W) 3x 230V 1½ G 250 ± 10 132 382 ± 10 93,5 119
4500W (3x 1500W) 3x 230V 1½ G 350 ± 10 132 482 ± 10 93,5 119
6000W (3x 2000W) 3x 230V 1½ G 450 ± 10 132 582 ± 10 93,5 119
7500W (3x 2500W) 3x 230V 1½ G 550 ± 10 132 682 ± 10 93,5 119
9000W (3x 3000W) 3x 230V 1½ G 650 ± 10 132 782 ± 10 93,5 119


Downloads:

  • Chapter Tubular Heaters
    Chapter Tubular Heaters

    Many sections, many lengths: Long-living heating elements for the use in air or tools. We can supply many different shapes, lengths and wattages with the option to be bent by yourselves.

  • Flyer Tubular Heaters 3 x 3 mm / Ø 3,3 mm
    Flyer Tubular Heaters 3 x 3 mm / Ø 3,3 mm

    Download our leaflet to our tubular heaters with the dimensions 3 x 3 mm / Ø 3,3 mm
