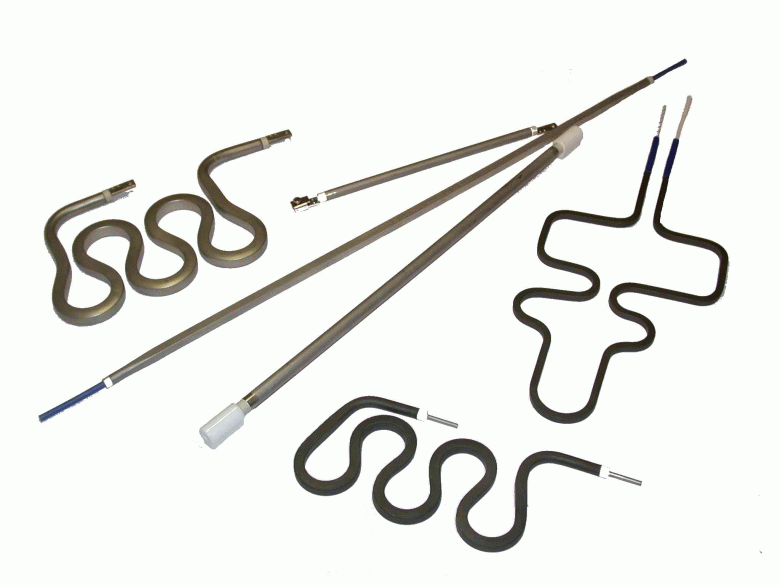

Flexible Tubular Heaters Flexible Tubular Heaters Square stainless steel tubular heaters BASE-flex (1.4541) are a reliable industry standard for the use in heating platens and manifolds.

In contrast to traditional tubular heaters with a round section which have to be bent by machines, square BASE-flex can be fitted into any rectangular groove with simple hand tools. Moreover, the square shape results in a bigger heat emitting area of up to 80% compared with a corresponding round section. Finally, the easy manual mounting saves the usually high technical expenditure for casting-in / soldering / cementing of bent round tubular heaters.

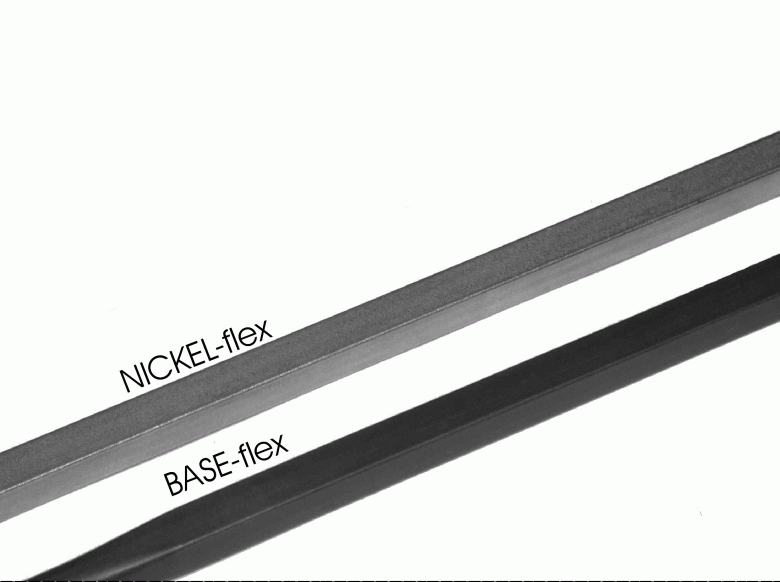

Square Tubular Heater (installation) A soft version of the BASE-flex, the NICKEL-flex (2.4068) is available as special execution. Due to the soft, easy to form nickel material, the NICKEL-flex is suitable for manual mounting with hand tools in round sections, too. Furthermore, Nickel has a better capability to conduct heat compared with stainless steel.

Available terminals
Terminal pin Standard
Terminal pin
Blade terminal 6,3 mm
Blade terminal 6,3 mm
Option for stock items
Blade terminal 6,3 mm

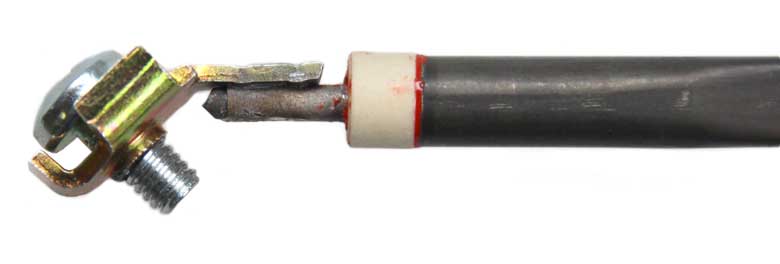

Option for stock items - M4-screw bracket Option for stock items
M4-screw bracket
Option for stock items - M4 Crimped threaded pin Option for stock items
M4 Crimped threaded pin

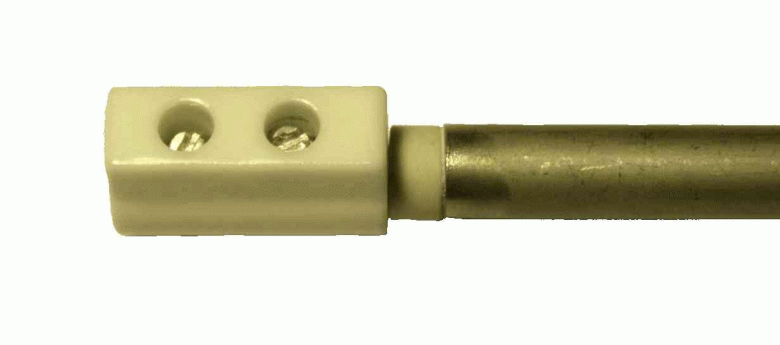

Ceramic connector Option for stock items
Ceramic connector

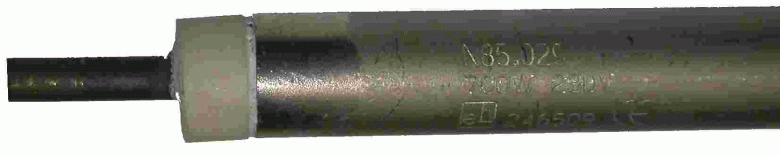

Option for stock items - Fibreglass leads Option for stock items
Fibreglass leads
Option for stock items - Fibreglass leads with shrinking sleeve Option for stock items
Fibreglass leads with shrinking sleeve
Option for stock items - Fibreglass leads with fibreglass sleeve Option for stock items
Fibreglass leads with fibreglass sleeve
Gewindestift On request
Threaded pin
▇ 6 x 6 mm M3
▇ 8 x 8 mm M3

● 6,5 mm M2,5
● 8,5 mm M4
● 10,0 mm M4

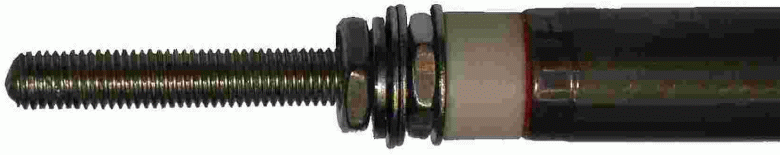

Gewindestift mit Mutter und Unterlegscheibe On request

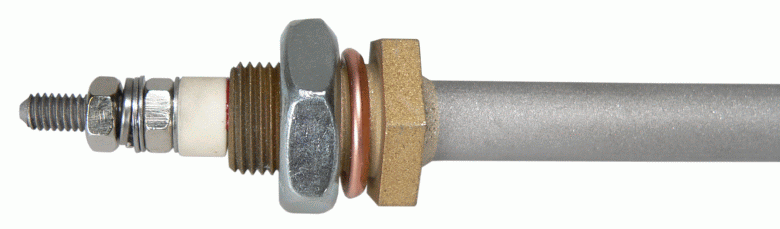

Threaded pin with nut and washers
Fixing options

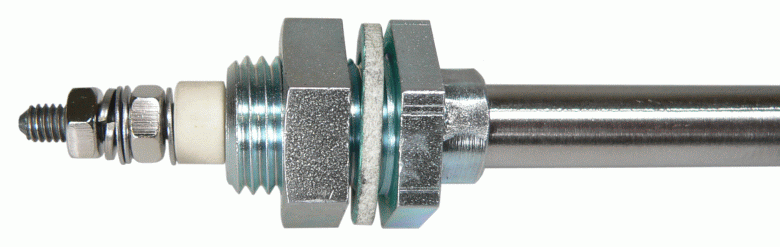

M14 x 1,5 in Edelstahl (Option) Option for stock items
Screw-in nipple M14 x 1,5 in stainless steel
● 6,5 mm
● 8,5 mm
M12 x 1,0 in Messing (Option) Option for stock items
Screw-in nipple M12 x 1,0 in brass
Standard types selection table
Cross section ▇ 4,5 x 4,5 mm ± 0,15
● 5,0 mm ± 0,15
▇ 6 x 6mm ± 0,15 ▇ 8 x 8mm ± 0,15
"flex"-Type BASE-flex (NICKEL-flex on request) BASE-flex (NICKEL-flex on request) BASE-flex (NICKEL-flex on request)
min. bending radius 12 mm 15 mm 20 mm
unheated length 25 mm ±5 30 mm ±5 40 mm ±5
    available from stock
Total length [mm] Power [W] 230 V
250 200 - -
300 250 - -
350 300 550 -
400 350 650 -
450 400 750 -
500 450 800 -
550 500 900 -
600 550 1000 -
650 600 1100 -
700 650 1200 -
750 700 1300 -
800 750 1350 -
850 800 1450 -
900 850 1550 2100
950 900 1650 -
1000 950 1750 2300
1050 - 1850 -
1100 - 1950 2500
1150 - 2050 -
1200 - 2100 2700
1250 - 2200 -
1300 - 2300 2900
1350 - 2400 -
1400 - 2500 3100
1450 - 2600 -
1500 - 2700 3300
1550 - 2800 -
1600 - - 3500
1700 - - 3700
1800 - - 3900
1900 - - 4100
2000 - - 4300
Technical data and tolerances
(No warranty claims can be derived from this table)
Wattage + 5% - 10%
Resistance + 10% - 5%
Dielectric strength 1500 V
Insulation (cold 1000 V DC) > 10 MΩ
Leakage current (cold) < 0,5 mA
Maximum working temperature 750 °C
Length tolerance ± 2% (min. ± 5 mm)
