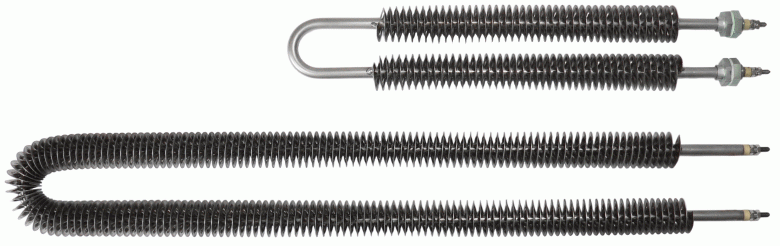

Finned Heaters Finned Tubular Heaters are the ideal solution for air or gas flow heating processes. The ribs enlarge the heat-releasing surface significantly. Basis of the finned tubular heaters are our 8.5 mm tubular heaters. The outer diameter of the fins is 28 mm. The elements can be delivered straight, U-shaped or circular (special design on request). Tubular heater as well as fins are made of stainless steel, the standard for the tube is 1.4828 (other materials possible as in chapter Round Tubular Heaters), the fins are normally made of 1.4301 (1.4571 on request).

Fixing:

  • Screw-in nipple M14 x 1.5 mm

Terminations for finned heaters:

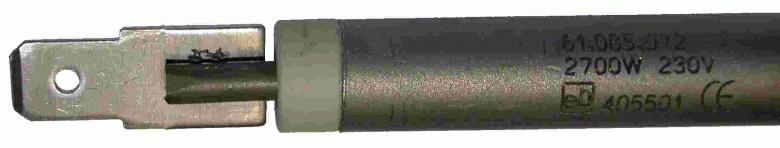

6,3 mm blade terminal 6,3 mm blade terminal
6,3 mm blade terminal

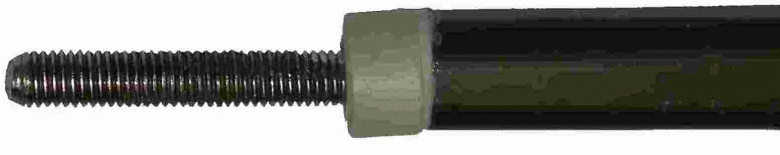

M4 threaded pin threaded pin
With fibreglass leads leads


Downloads:

  • Chapter Tubular Heaters
    Chapter Tubular Heaters

    Many sections, many lengths: Long-living heating elements for the use in air or tools. We can supply many different shapes, lengths and wattages with the option to be bent by yourselves.

  • Flyer Tubular Heaters 3 x 3 mm / Ø 3,3 mm
    Flyer Tubular Heaters 3 x 3 mm / Ø 3,3 mm

    Download our leaflet to our tubular heaters with the dimensions 3 x 3 mm / Ø 3,3 mm
