Thermo SensorsDownloads

Thermo Sensors are needed in any controlled heating process. For various applications different types of thermocouples are obtainable. Most common are thermocouples (TC) and resistance sensors (RS). Both types are available in the same executions as a matter of princible. For non-contact measuring infrared sensors are the rights choice, either in stationary executions or as portable measuring instrument.

Thermo Sensors
Sensor type Measuring range (recommended) Field of application
TC
Type J (Fe-CuNi)
(DIN IEC 584)
-200 °C - 1000 °C
(0 °C - 590 °C)
Cost-effective, suitable for simple PID controllers (in PLC is
often additional electronic necessary), available in grounded
(quick responding) or ungrounded (insensible to
shock and electromagnetic radiation).
TC
Type K (NiCr - Ni)
(DIN IEC 584)
-200 °C - 1270 °C
(400 °C - 900 °C)
RS
(DIN IEC 751)
-200 °C - 850 °C More exact (measuring error < 1 % possible) and less interference-prone.
IS 0 °C - 500 °C Contactless measuring (insensible to air draft or heat radiation),
stationary execution IP65 rated.

Thermocouples (TC) & Resistance Sensors (RS)

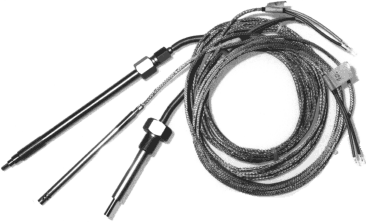

Choose from our thermocouples and resistance sensors between these products: Bayonet TC/RS, Angle TC/RS, Stick TC/RS, Jam or Clamp-band TC/RS, Air TC/RS, Bendable TC/RS, Bayonet caps and screw-in nipples...

Colour Codes for Thermocouples & Resistance Sensors

The following table shows the colour codes for different types of thermocouples...

learn more

Infrared Sensors - Hand Held Devices

thermoMETER MS - the general purpose infrared thermometer for standard applications...

learn more

Service (User Manual)

Here you can see the user manual for our thermo sensors...

learn more


Downloads:

  • Chapter Thermo Sensors
    Chapter Thermo Sensors

    Various sensor shapes, exact measuring: Measurement of temperature in controlled heat processes. We deliver the appropriate sensor for your applications from our standard range or according to your demands.
