Thermocouples (TC) and Resistance Sensors (RS)Downloads

Choose from our Thermocouples (TC) and Resistance Sensors (RS) between these products:


Bayonet Thermocouples/ Resistance Sensors

TEB-VS2

  • Bayonet Thermocouples/ Resistance Sensors - TEB-VS2Thermocouple: Fe-CuNi DIN IEC 584 (J) / Fe-CuNi DIN 43710 (L) / NiCr-Ni DIN IEC 584 (K)
  • Sensor point: Ø 8 mm
  • Built-in depth: about 15 up to about 150 mm
  • Screw-in nipple: MS 58 nickled
  • Bayonet cap: MS 58 nickled
  • Working temperature: max. 400 °C
  • Thermo leads: 2 x 0,35 mm²
  • Measure position: soldered: 118 ° drill angle
  • Compression spring: V2A
TEB-VP2 wie TEB-VS2
TEB-VP2 same as TEB-VS2
but measure position
Ø 8 mm / plane
TEB-VP3 wie TEB-VS2
TEB-VP3 same as TEB-VS2
but measure position
with ceramic insulation; plane
TEB-VH3 wie TEB-VS2
TEB-VH3 same as TEB-VS2
but measure position
with ceramic insulation; hemispherical

Angle Thermocouples/ Resistance Sensors

TEWS-P12

  • Angle Thermocouples/ Resistance Sensors - TEWS-P12Thermocouple: J; L; K
  • Sensor point: Ø 8 mm
  • Built-in depth: to 40 mm
  • Working temperature: max. 400 °C
  • Thermo lead: 2 x 0,35 mm²
  • Protection spring: V2A
  • Measure position: soldered / plane

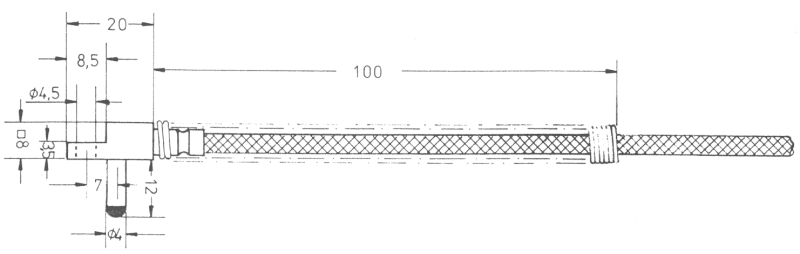

TEWS-H4

  • Angle Thermocouples/ Resistance Sensors - TEWS-H4Thermocouple: J; L; K
  • Sensor point: Ø 5 mm
  • Built-in depth: (A) to » 300 mm (specification)
  • (B) 40 to» 300 mm (specification)
  • Working temperature: max. 400 °C
  • Thermo lead: 2 x 0,35 mm²
  • Protection spring: -
  • Measure position: soldered / hemisherical

TEWS-H17

  • Angle Thermocouples/ Resistance Sensors - TEWS-H17Thermocouple: J; L; K
  • Sensor point: Ø 4 mm
  • Built-in depth: 12 mm (specification)
  • Working temperature: max. 400 °C
  • Thermo lead: 2 x 0,35 mm²
  • Protection spring: -
  • Measure position: soldered / hemispherical

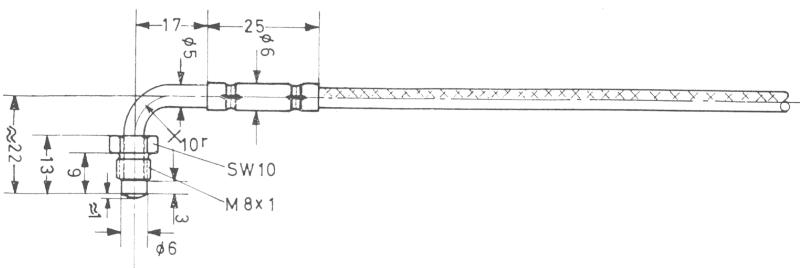

TEW-NH3

  • Angle Thermocouples/ Resistance Sensors - TEW-NH3Thermocouple: J; L; K
  • Sensor point: Ø 6 mm
  • Built-in depth: ca. 7 - 9 mm (incl. thread)
  • Screw-in nipple: MS 58 nickled
  • Bayonet cap: MS 58 nickled
  • Working temperature: max. 400 °C
  • Thermo lead: 2 x 0,35 mm²
  • Measure position: soldered / hemispherical

Regards: is there´s no other information Leads surrounded with fibre glass and specially impregnated. Execution with braided metal sleeve.

Other executions on request.


Stick Thermocouples/ Resistance Sensors

TES-P16

  • Stick Thermocouples/ Resistance Sensors - TES-P16Thermocouple: J; L; K
  • Sensor point: Ø 6 mm
  • Built-in depth: L = 20 - 300 mm (specification)
  • Working temperature: max. 400 °C
  • Thermo lead: 2 x 0,35 mm²
  • Measure position: soldered / plane

TES-P34

  • Stick Thermocouples/ Resistance Sensors - TES-P34Thermocouple: J; K; L
  • Sensor point: Ø 3,5 mm
  • Material: 1.4301
  • Built-in depth: L = 30 mm or as specified
  • Protection spring: fibre glass-silicone sleeve
  • Working temperature: max. 400 °C
  • Thermo lead: 2 x 0,5 mm²
  • Measure position: soldered / plane

TES-LP34

  • Stick Thermocouples/ Resistance Sensors - TES-LP34Thermocouple: J; K; L
  • Sensor point: Ø 3,5 mm
  • Material: 1.4301
  • Built-in depth: L = 30 mm or as specified
  • Protection spring: fibre glass silicone sleeve
  • Working temperature: max. 400 °C
  • Thermo lead: 2 x 0,5 mm²
  • Measure position: soldered / plane
  • Fixing link: 15 x 8 mm

Leads insulated with fibre glass and specially impregnated.


Jam or Clamp-band Thermocouples/ Resistance Sensors

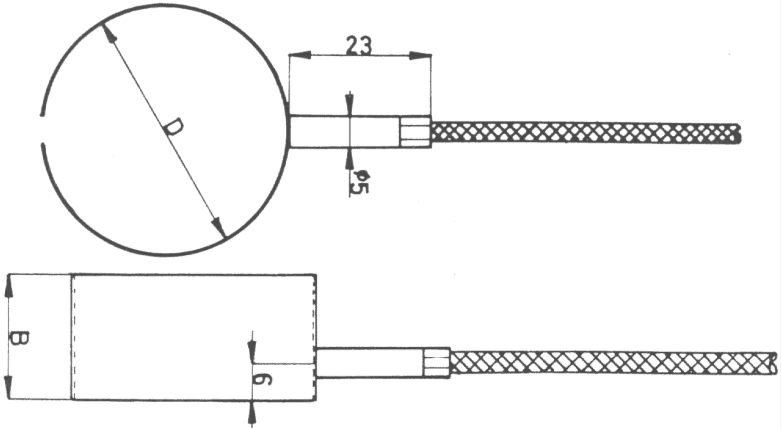

TELK-O

  • Jam or Clamp-band Thermocouples/ Resistance Sensors - TELK-OThermocouple: J; K; L
  • Dimensions: dimension D and B on request
  • Working temperature: max. 400 °C
  • Thermo lead: 2 x 0,35 mm²
  • Measure position: soldered

Up to width 37 mm connection at the edge (drawing) more than 38 mm connection in the middle.

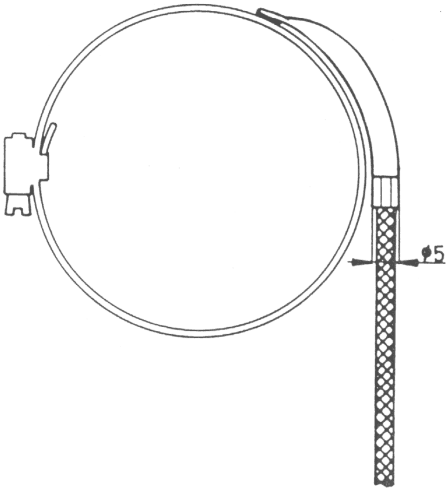

TERT-O

  • Jam or Clamp-band Thermocouples/ Resistance Sensors - TERT-OThermocouple: J; K; L
  • Working temperature: max. 400 °C
  • Thermo lead: 2 x 0,35 mm²
  • Measure position: soldered

Air Thermocouples/ Resistance Sensors

TEL-N7

  • Air Thermocouples/ Resistance Sensors - TEL-N7Thermocouple: J; K; L
  • Sensor point: D = 8 mm, 24 drill holes each D = 3 mm
  • Built-in depth: 75 mm
  • Screw-in nipple: MS 58 nickled
  • Working temperature: max. 400 °C
  • Thermo lead: 2 x 0,35 mm²
  • Measure position: open

Bendable Thermocouples/ Resistance Sensors

  • Type: J (Fe-CuNi) / K (NiCr-Ni)
  • Sheath diametre: 1,0 / 1,5 / 2,0 / 3,0 mm
  • Steath length: as required
  • Min. bending radius: fourfold sheath diametre
  • Sheath material: 1.4301 / 1.4401 / 2.4816
  • Insulation resistance: >200 MΩ (at Ø 1 mm >100MΩ)
  • Testing voltage: 250V
Measurement range
Type 1.4301 / AISI304 1.4401 / AISI316 2.4816 / Inconnel 600
J (Fe-CuNi) -40 bis 450 °C -40 bis 750 °C not possible
K (NiCr-Ni) -40 bis 450 °C -40 bis 750 °C -40 bis 900 °C

Transition head stainless steel

  • Max. temperature: 400 °C
  • Dimension: 4 x 30 mm
  • Water resistant: no
Transition head stainless steel
Transition head stainless steel

Transition head moulded

  • Max. temperature: 400 °C
  • Dimension: 5,5 x 20 mm
  • Water resistant: yes
Transition head moulded
Transition head moulded

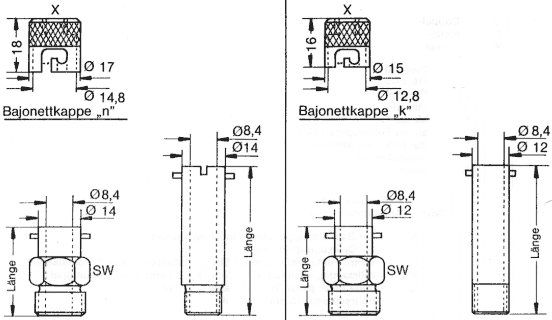

Bayonet caps and screw-in nipples

Bayonet caps and screw-in nipples
from left to right type 1 to type 4
  thread length wrench size
Type 1 M14 x 1,5 30 mm SW 17
M12 x 1 30 mm SW 17
M12 x 1 60 mm SW 17
M12 30 mm SW 17
G3/8" 30 mm SW 17
G1/4" 30 mm SW 17
Type 2 M14 x 1,5 40 mm -
M14 x 1,5 50 mm -
M14 x 1,5 60 mm -
M14 x 1,5 80 mm -
M14 x 1,5 90 mm -
M12 x 1 25 mm -
M12 x 1 40 mm -
M12 x 1 50 mm -
M12 x 1 60 mm -
M12 x 1 40 mm -
Type 3 M 14 x 1,5 30 mm SW 17
M12 x 1 30 mm SW 17
M12 30 mm SW 17
M10 30 mm SW 14
M10 x 1 30 mm SW 14
G3/8" 30 mm SW 17
G1/4" 30 mm SW 17
Type 4 M14 34 mm -
M12 x 1 22 mm -
M12 x 1 50 mm -
M12 x 1 100 mm -
M12 22 mm -
M12 40 mm -
M12 60 mm -
M8 x 0,75 43 mm -

More executions without illustration

  • Bayonet cap "m" inside diametre 10,5 mm
  • Bayonet cap "g" inside diametre 16,8 mm
  • Bayonet cap "gs" inside diametre 15,5 mm mit with pins, pin distance 13,2 mm

Leads surrounded with fibre glass and specially impregnated. Execution with braided metal sleeve. Other executions on customer's request. Please pay attention to general built-in and starting instructions (order if the occasion arises).



Downloads:

  • Chapter Thermo Sensors
    Chapter Thermo Sensors

    Various sensor shapes, exact measuring: Measurement of temperature in controlled heat processes. We deliver the appropriate sensor for your applications from our standard range or according to your demands.
