HotMicroCoil Spare/ Replacement Nozzle Heaters

Downloads Inquiry Form

Spare part cross-reference list

Spare Heaters suitable for hotrunner nozzles of familiar OEMs (Husky, Mastip, Kortec, SIG, ...)

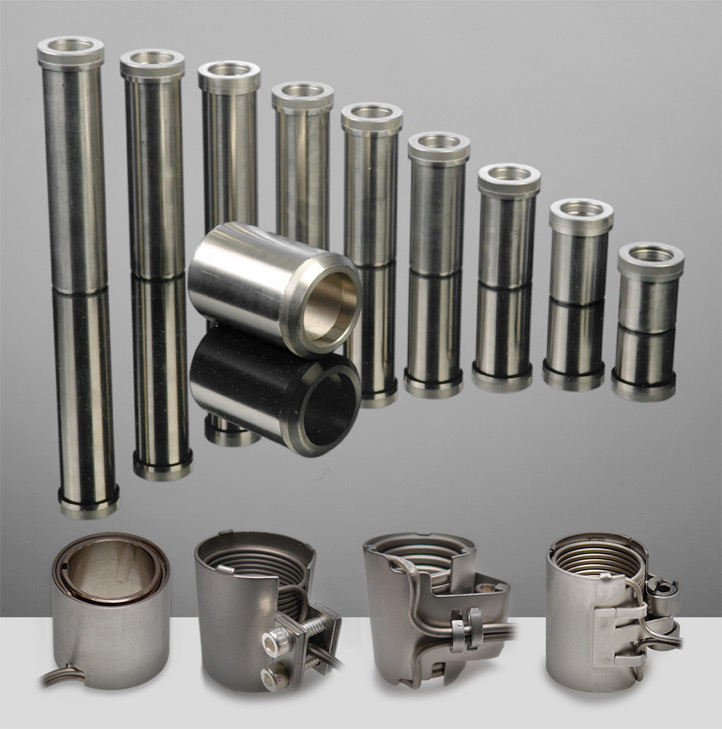

HotMicroCoil Spare/ Replacement Nozzle Heaters

Spare/ Replacement heater for Husky two screw clamp-band heater

OEM replacement/ alternative for Husky 520156, 521334
System OEM
part number		 wattage
[W]		 ID
[mm]		 L
[mm]		 Freek replacement
Order number
"Rosemount style"
(MicroCoil Ø 1,4)		 "Freek style"
(MicroCoil 1,3 x 2,3)
Two Screw Clamp Band (FB) Husky
- 285 W (230 V) 19,00 25,40 (1,0") 64M8.001 on request
520156 149W (240V) 19,05 (3/4") 30,50 (1,2") 64M9.008 on request
521334 250 W (230 V) 19,05 (3/4") 30,50 (1,2") 64M9.001 65M5.017
- 300 W (220V) 19,10 30,50 (1,2") 64MA.001 on request
- 250 W (230 V) 22,22 30,50 (1,2") 64M9.002 on request
- 250 W (230 V) 22,55 30,50 (1,2") 64M9.005 on request
- 440 W (240V) 39,88 44,45 (1,75") 64M9.009 on request

Spare/ Replacement heater for Husky axial clamp-band heater with hex screw (wedge operated)

OEM replacement/ alternative for Husky 534192, 534233, 534234, 534445
System OEM
part number		 wattage
[W]		 ID
[mm]		 L
[mm]		 Freek replacement
Order number
"Rosemount style"
(MicroCoil Ø 1,4)		 "Freek style"
(MicroCoil 1,3 x 2,3)
Axial Clamp Band (FE) Husky
534192 268W (240V) 19,05 (3/4") 30,50 (1,2") 64M9.011 65M5.044
534445 149W (240V) 19,05 (3/4") 30,50 (1,2") 64M9.010 on request

Spare/ Replacement heater for Husky axial clamp-band heater with eccentric screw (cam operated)

OEM replacement/ alternative for Husky 534233, 534234
System OEM
part number		 wattage
[W]		 ID
[mm]		 L
[mm]		 Freek replacement
Order number
"Rosemount style"
(MicroCoil Ø 1,4)		 "Freek style"
(MicroCoil 1,3 x 2,3)
Spare/ Replacement heater for Husky axial clamp-band heater with eccentric screw (cam operated) Husky
534233 268 W (240 V) 19,05 (3/4") 30,50 (1,2") 64M9.003 65M5.037
534234 149 W (240 V) 19,05 (3/4") 30,50 (1,2") 64M9.004 65M5.024

Spare/ Replacement heater for SIG nozzle heater

OEM replacement/ alternative for PET nozzle heater type SIG
System OEM
part number		 wattage
[W]		 ID
[mm]		 L
[mm]		 Freek replacement
Order number
"Rosemount style"
(MicroCoil Ø 1,4)		 "Freek style"
(MicroCoil 1,3 x 2,3)
Reflection Tube Heater with heat conductive sleeve SIG
- 250 W (230 V) 22,55 29 - 65S6.013

Spare/ Replacement heater for Husky 1250 nozzle heater

OEM replacement/ alternative for Husky 1250 nozzle series (Bi-Metall, Ultra)
System OEM
part number		     wattage
[W]		 ID
[mm]		 L
[mm]		 Freek
part number
System Kappa Series Husky 1250 series
1250 Bi-Metal 1250 Bi-Metal
(with TC)		 Ultra 1250
(UNH)
535069 3083481 4187817 400 W
(240 V)		 31,75 (1 1/4") 45 64P8.005
535070 - - - 31,75 (1 1/4") - -
535071 - - - 31,75 (1 1/4") - -
535072 - - - 31,75 (1 1/4") - -
535073 3083485 - 400 W
(240 V)		 31,75 (1 1/4") 124 -
535074 3083486 - 400 W
(240 V)		 31,75 (1 1/4") 144 64P9.001
535075 - - - 31,75 (1 1/4") - -
535344 - - - 31,75 (1 1/4") - -
535345 - - - 31,75 (1 1/4") - -
535346 - - - 31,75 (1 1/4") - -
535347 - - - 31,75 (1 1/4") - -
535348 - - - 31,75 (1 1/4") - -
535230 - - - cap - AXAU.187
- - - - TE - -

Spare/ Replacement heater for Husky 750 nozzle heater

OEM replacement/ alternative for Husky 750 nozzle series (Bi-Metall, Ultra)
System OEM
part number		     wattage
[W]		 ID
[mm]		 L
[mm]		 Freek
part number
System Kappa Series Husky 750 series
750 Bi-Metal 750 Bi-Metal
(HTR S/A)		 Ultra 750
(UNH)
534975 - 5177912
4458363 (166 W)		 220 W (240 V) 19,05 (3/4") 30 64P5.001
- - - 250 W (240 V) 19,05 (3/4") 30 64P5.005
- 1501609 - 350 W (240 V) 19,05 (3/4") 30 64P5.006
534976 - 4458365 (213 W) 220 W (240 V) 19,05 (3/4") 40 64P5.002
- - - 250 W (240 V) 19,05 (3/4") 40 64P5.008
- 1502992 - 350 W (240 V) 19,05 (3/4") 40 64P5.007
534977 - 4458366 (223 W) 220 W (240 V) 19,05 (3/4") 50 64P5.003
- - - 250 W (240 V) 19,05 (3/4") 50 64P5.009
- 1502993 - 350 W (240 V) 19,05 (3/4") 50 64P5.012
534978 - 4458367 (233 W) 220 W (240 V) 19,05 (3/4") 60 64P5.004
- - - 250 W (240 V) 19,05 (3/4") 60 64P5.010
- 1501594 - 400 W (240 V) 19,05 (3/4") 60 64P6.022
534979 - 4458368 (243 W) 220 W (240 V) 19,05 (3/4") 70 64P6.001
- 1502994 - 400 W (240 V) 19,05 (3/4") 70 64P6.006
534980 - 4458369 (253 W) 220 W (240 V) 19,05 (3/4") 80 64P6.002
- 1501595 - 400 W (240 V) 19,05 (3/4") 80 64P6.007
534981 - 4458370 (263 W) 220 W (240 V) 19,05 (3/4") 90 64P6.003
- - - 350 W (240 V) 19,05 (3/4") 90 64P6.019
- 1502995 - 400 W (240 V) 19,05 (3/4") 90 64P6.008
534982 - 4458371 (273 W) 220 W (240 V) 19,05 (3/4") 100 64P6.004
- - - 350 W (240 V) 19,05 (3/4") 100 64P6.020
- 1501596 - 400 W (240 V) 19,05 (3/4") 100 64P6.009
534983 - 4458372 (283 W) 220 W (240 V) 19,05 (3/4") 110 64P6.005
- - - 350 W (240 V) 19,05 (3/4") 110 64P6.021
- 1502996 - 400 W (240 V) 19,05 (3/4") 110 64P6.010
- - 4458373 (293 W) 220 W (240 V) 19,05 (3/4") 120 -
535470 - - 220 W (240 V) 19,05 (3/4") 130 64P7.001
- 1502997 4458374 (303 W) 400 W (240 V) 19,05 (3/4") 130 64P7.003
535471 - - 220 W (240 V) 19,05 (3/4") 150 64P7.002
- 1502998 4458376 (323 W) 450 W (240 V) 19,05 (3/4") 150 64P7.004
535472 - - 220 W (240 V) 19,05 (3/4") 170 64P8.001
- 1502999 4458380 (343 W) 450 W (240 V) 19,05 (3/4") 170 64P8.003
535473 - - 220 W (240 V) 19,05 (3/4") 190 64P8.002
- 1503000 4458382 (363 W) 450 W (240 V) 19,05 (3/4") 190 64P8.004
535474 - - 220 W (240 V) 19,05 (3/4") 210 -
- 1503001 4458386 (383 W) 450 W (240 V) 19,05 (3/4") 210 -
535181 - - - cap - AXAU.095
- - - - TC - -

Spare/ Replacement heater for Husky 500 nozzle heater

OEM replacement/ alternative for Husky 500 nozzle series (Bi-Metall, Ultra)
System OEM
part number		     wattage
[W]		 ID
[mm]		 L
[mm]		 Freek
part number
System Kappa Series Husky 500 series
500 HTM Copper
Ultra 500
(5... = epoxy /
2... = ceramic)		 Ultra 500 (UNH)
- - 4778275 (153 W) 280 W (240 V) 12,75 (1/2") 40 -
- - 4778276 (159 W) 280 W (240 V) 12,75 (1/2") 50 -
- 5442630/2343737 4778277 (164 W) 280 W (240 V) 12,75 (1/2") 60 64P7.013
- 5442631 4778278 (170 W) 280 W (240 V) 12,75 (1/2") 70 -
- 5442632 4778279 (175 W) 280 W (240 V) 12,75 (1/2") 80 -
- 5442633/2343739 4778280 (180 W) 280 W (240 V) 12,75 (1/2") 90 64P7.010
- 5442634/2343741 4778281 (186 W) 280 W (240 V) 12,75 (1/2") 100 64P7.016
3191678 5442635/2343742 4778282 (191 W) 280 W (240 V) 12,75 (1/2") 110 64P7.012
- 5442636/2343743 4778283 (197 W) 280 W (240 V) 12,75 (1/2") 120 -
3191680 5442637/2343744 4778284 (202 W) 280 W (240 V) 12,75 (1/2") 130 64P7.015
- 2343745 4778285 (208 W) 280 W (240 V) 12,75 (1/2") 140 64P7.008
- - 4778286 (213 W) 280 W (240 V) 12,75 (1/2") 150 -
- - 4778287 (218 W) 280 W (240 V) 12,75 (1/2") 160 -
- - 4778288 (224 W) 280 W (240 V) 12,75 (1/2") 170 -
- - 4778289 (229 W) 280 W (240 V) 12,75 (1/2") 180 -
- - 4778290 (235 W) 280 W (240 V) 12,75 (1/2") 190 64P7.011
- - 4778291 (240 W) 280 W (240 V) 12,75 (1/2") 200 -
- - 4778292 (246 W) 280 W (240 V) 12,75 (1/2") 210 64P7.009
- - 4778293 (251 W) 280 W (240 V) 12,75 (1/2") 220 -
- - 4778294 (257 W) 280 W (240 V) 12,75 (1/2") 230 64P7.017
- - 4778295 (262 W) 280 W (240 V) 12,75 (1/2") 240 -
- - 4778296 (267 W) 280 W (240 V) 12,75 (1/2") 250 -
- - 4778297 (273 W) 280 W (240 V) 12,75 (1/2") 260 -
- - 4778298 (278 W) 280 W (240 V) 12,75 (1/2") 270 -
- - 4778299 (284 W) 280 W (240 V) 12,75 (1/2") 280 -
- - 4778300 (289 W) 280 W (240 V) 12,75 (1/2") 290 -
- - 4778301 (295 W) 280 W (240 V) 12,75 (1/2") 300 -

Spare/ Replacement heater for Husky 500 brass nozzle heater

OEM replacement/ alternative for Husky 500 nozzle series (HTM Brass)
System OEM
part number		 wattage
[W]		 ID
[mm]		 L
[mm]		 Freek
part number
System Kappa Series Husky 500 series
500 HTM Brass
5421799 (210 W) 280 W (240 V) 12,75 (1/2") 110 -
5421753 (220 W) 280 W (240 V) 12,75 (1/2") 130 -
5421754 (220 W) 280 W (240 V) 12,75 (1/2") 140 -
5421755 (220 W) 280 W (240 V) 12,75 (1/2") 150 -
5421756 (230 W) 280 W (240 V) 12,75 (1/2") 160 -
5421757 (230 W) 280 W (240 V) 12,75 (1/2") 170 65S6.160
5421758 (230 W) 280 W (240 V) 12,75 (1/2") 180 -
5421759 (230 W) 280 W (240 V) 12,75 (1/2") 190 65S6.159
5421760 (240 W) 280 W (240 V) 12,75 (1/2") 200 65S6.149
5421761 (240 W) 280 W (240 V) 12,75 (1/2") 210 -

Spare/ Replacement heater for Mastip nozzle heater

OEM replacement for Mastip MX nozzle series
System OEM
part number		 wattage
[W]		 ID
[mm]		 L
[mm]		 Freek
part number
Reflection Tube Heater Mastip MX
MX13045HFS 225 W (230 V) 14,55 38,80 65S4.026
MX13055HFS 250 W (230 V) 14,55 48,80 65S5.027
MX13065HFS 250 W (230 V) 14,55 58,80 65S6.037
MX13075HFS 290 W (230 V) 14,55 68,80 65S6.038
MX13095HFS 330 W (230 V) 14,55 88,80 65S6.035
MX13115HFS 400 W (230 V) 14,55 108,80 65S7.023
MX13130HFS 470 W (230 V) 14,55 123,80 65S7.031
MX13145HFS 470 W (230 V) 14,55 138,80 65S7.024
MX13175HFS 550 W (230 V) 14,55 168,80 65S8.048

MX16045HFS 290 W (230 V) 16,55 37,00 65S4.029
MX16055HFS 330 W (230 V) 16,55 47,00 65S5.028
MX16065HFS 330 W (230 V) 16,55 57,00 65S6.039
MX16075HFS 400 W (230 V) 16,55 67,00 65S7.019
MX16095HFS 470 W (230 V) 16,55 87,00 65S7.025
MX16115HFS 550 W (230 V) 16,55 107,00 65S8.050
MX16130HFS 550 W (230 V) 16,55 122,00 65S8.076
MX16145HFS 620 W (230 V) 16,55 137,00 65S8.051
MX16175HFS 700 W (230 V) 16,55 167,00 65S8.052

MX19055HFS 400 W (230 V) 21,05 45,80 65S6.034
MX19065HFS 470 W (230 V) 21,05 55,80 65S8.053
MX19075HFS 470 W (230 V) 21,05 65,80 65S8.043
MX19095HFS 550 W (230 V) 21,05 85,80 65S9.015
MX19115HFS 620 W (230 V) 21,05 105,80 65S9.016
MX19130HFS 620 W (230 V) 21,05 120,80 65S9.025
MX19145HFS 700 W (230 V) 21,05 135,80 65S9.017
MX19175HFS 850 W (230 V) 21,05 165,80 65S9.018
MX19230HFS 1000 W (230 V) 21,05 220,80 65S9.096

Spare/ Replacement heater for Mastip nozzle heater

OEM replacement for Mastip MJ/DX nozzle series
System OEM
part number		 wattage
[W]		 ID
[mm]		 L
[mm]		 Freek
part number
Reflection Tube Heater Mastip DX
DX09055H 150 W (230 V) 8,9 39,00 65S3.029
DX09095H 230 W (230 V) 8,9 79,00 65S4.070

Mastip MJ
MJ09075 200 W (230 V) 8,9 59,50 65S3.030
MJ09095 230 W (230 V) 8,9 79,50 65S4.047
MJ09115 265 W (230 V) 8,9 99,50 65S4.048
MJ09130 295 W (230 V) 8,9 114,50 65S4.049
MJ09145 320 W (230 V) 8,9 129,50 65S4.050
MJ09175 370 W (230 V) 8,9 159,50 65S5.050
