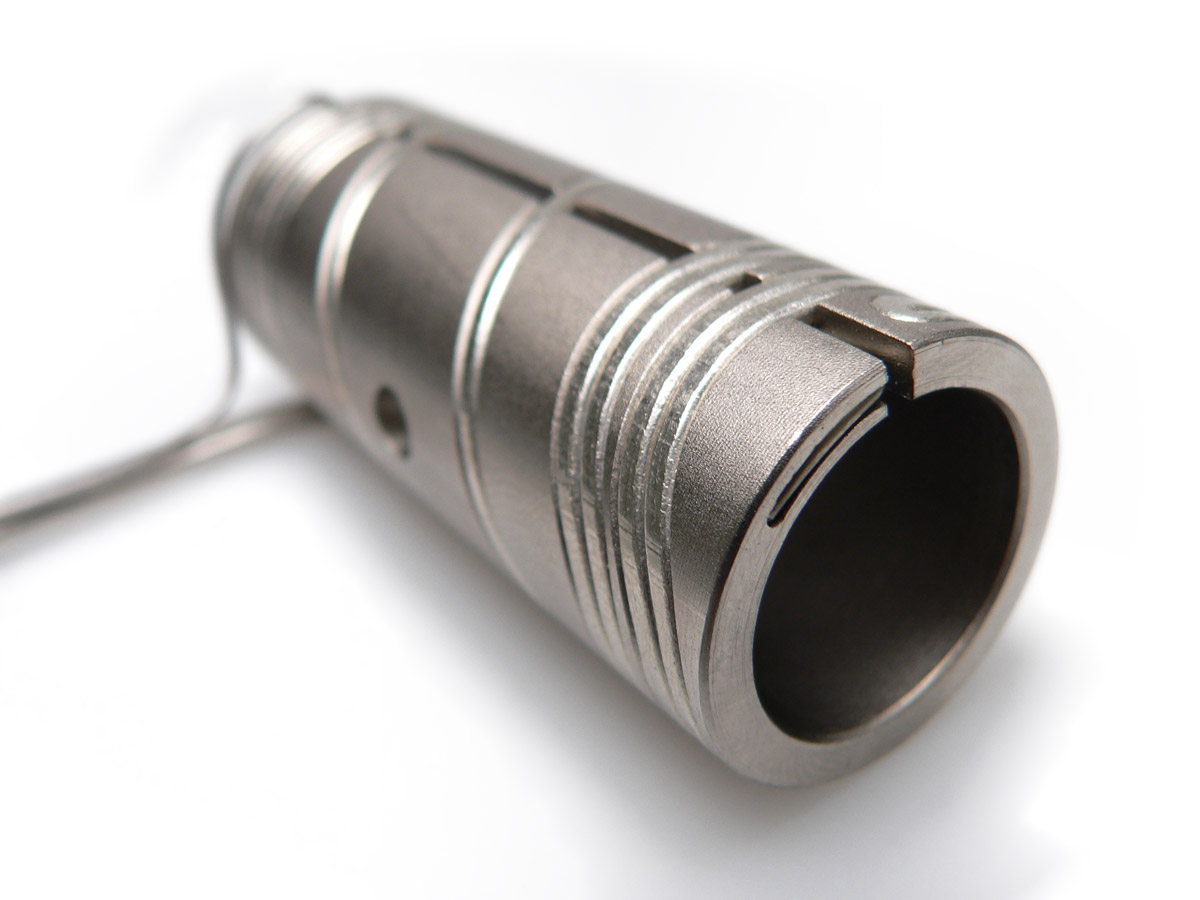

Freek Heat Transfer System (patent)

Freek Heat Transfer System [1 / 2] The Freek heat transfer system especially addresses manufacturers and users who operated their hotrunner nozzles with cast-in heaters in the past and would like to stick to their engineering know-how without paying the high price of this former heater design. The standard material of our patent pending Freek heat transfer alternative is brass, with or without coating, basically with a slit. The slit allows the assembly of an external bendable thermocouple and facilitates the disassembly, e.g. in case of a revision and can be coiled over. This is not possible at competitor's solutions. Freek's tight coiling at the heater's ends provides a maximum possible power concentration (patented).

Specifications for Freek Heat Transfer System
Design Freek
System Heat transfer
Function Toleranced fit
Heater MicroCoils 1,0 x 1,6 / 1,3 x 2,3 mm
other heaters, also HotCoils possible
Industry standard for Freek Heat Transfer System
Dimension Ø min. 8 mm, L freely selectable
Standards see tables "MicroCoil" / "HotCoil" (other wattage possible)

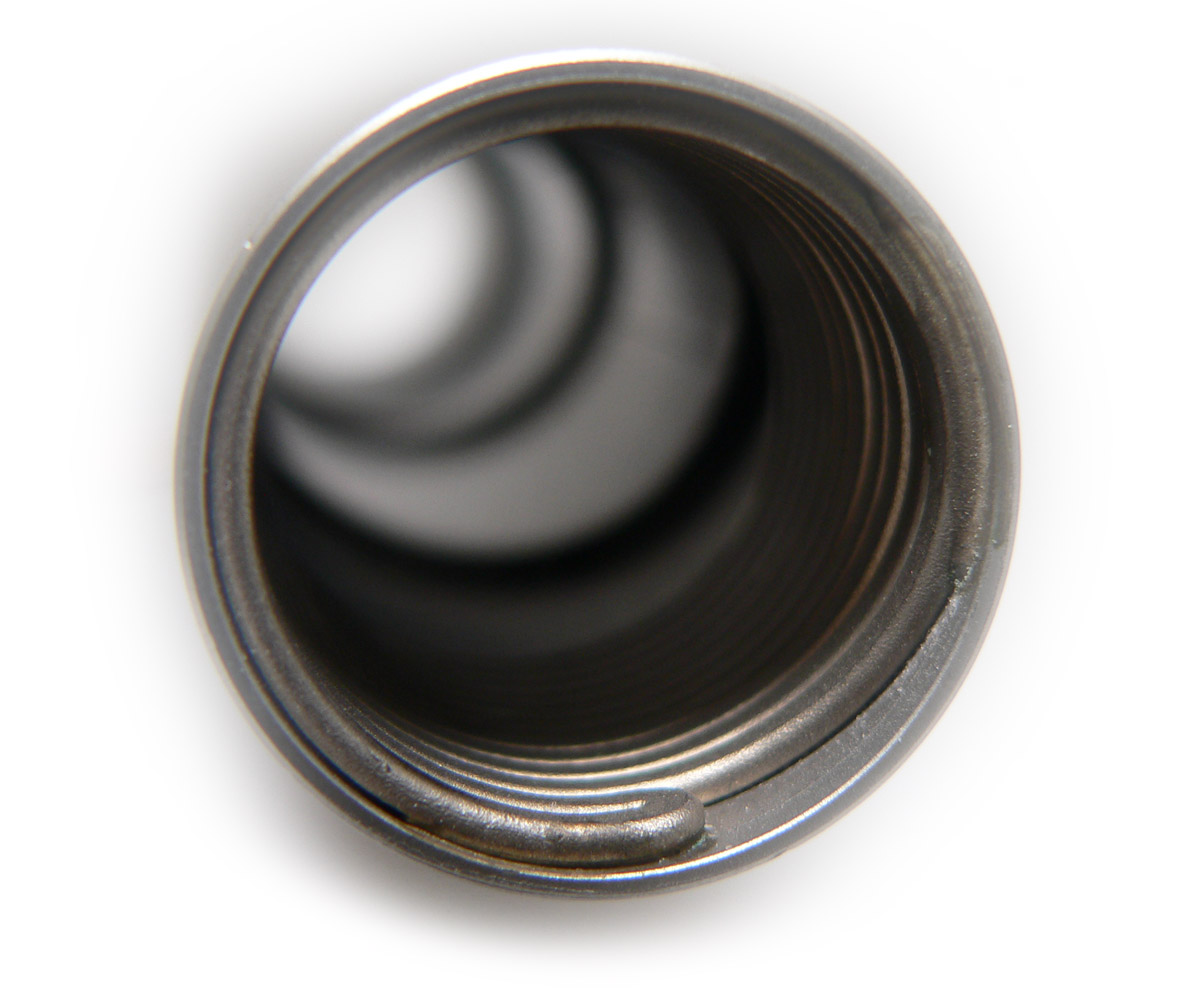

HotMicroCoil with Reflection Tube

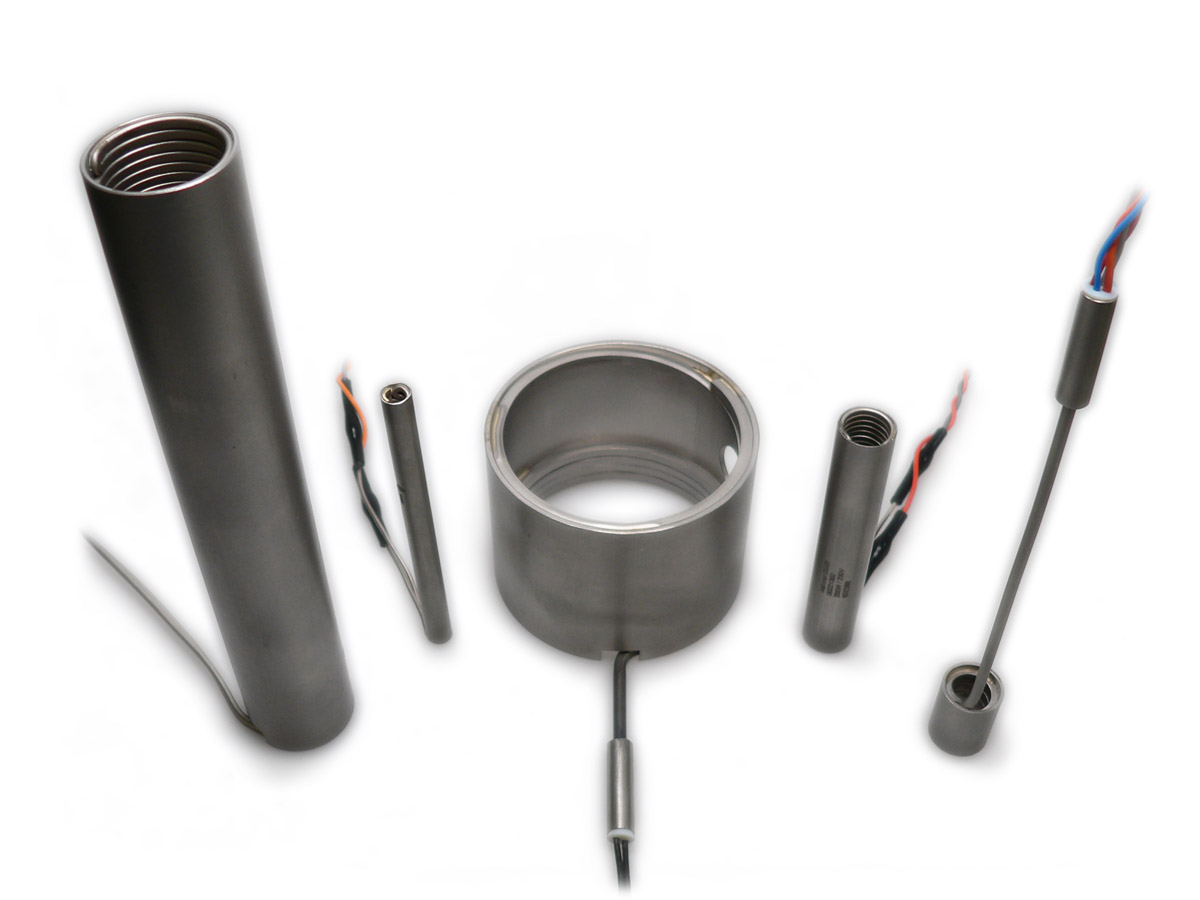

HotMicroCoil with Reflection Tube [1 / 2] Characteristics of our HotMicroCoils with reflection tube are easy mounting and variable heat distribution. Because of its direct touch and toleranced fit, the heater allows a very good heat transmission to the nozzle. In all our HotMicroCoils with reflection tube the assembly of a thermocouple is possible and recommended for bigger diameters and power.

Specifications for HotMicroCoil with Reflection Tube
Design Freek
System Reflection tube
Function Toleranced fit
Heater MicroCoils 1,0 x 1,6 / 1,3 x 2,3 / 1,4 x 2,4 / 1,8 x 3,2 mm
HotCoils 2,2 x 4,2 / 3,0 x 3,0 mm
Industry standard for HotMicroCoil with Reflection Tube
Dimension Ø max. 90 mm, L freely selectable
Power Standards > see tables "MicroCoil" / "HotCoil" (other wattage possible)

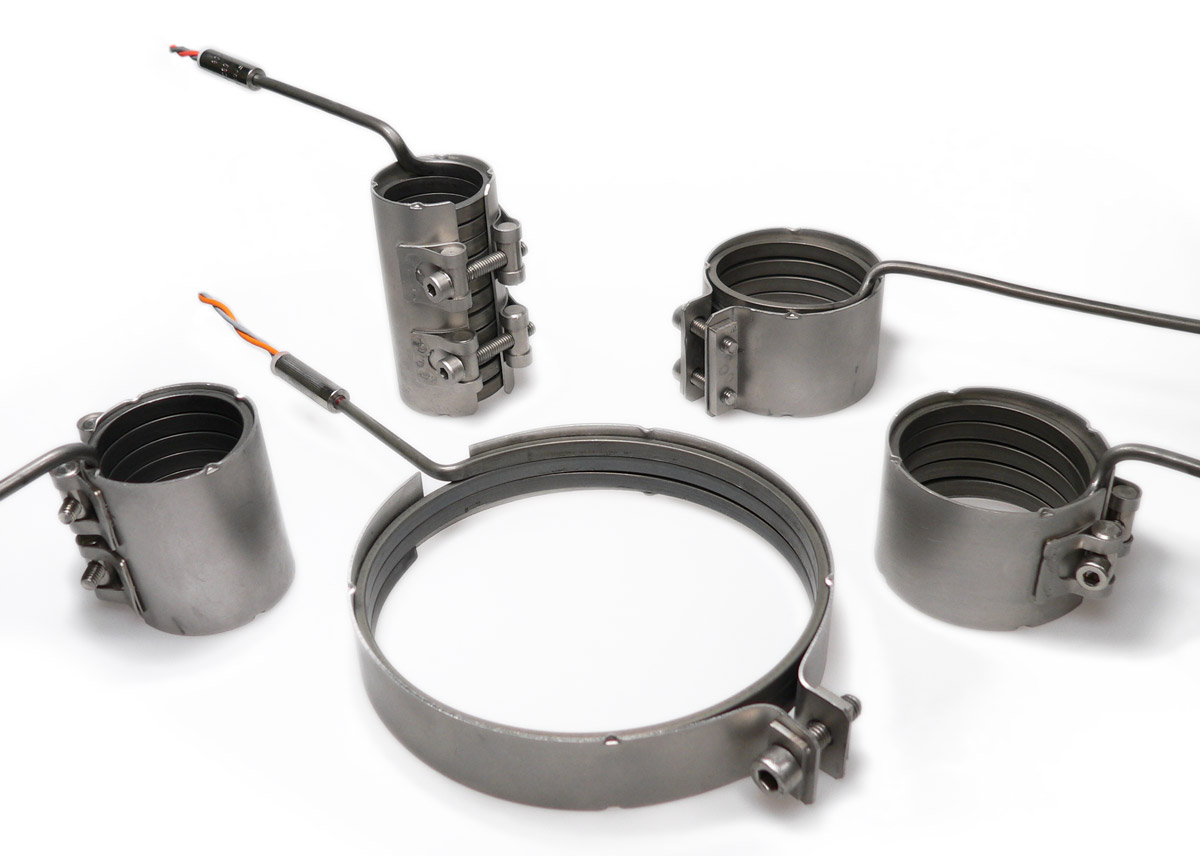

HotCoil with Clamp Band

HotCoil with Clamp Band [1 / 2] The HotCoils with clamp band are a highly demanded and very flexible clamping system, especially for heating larger nozzles and bushings with high power. The size-variable customizable clamp bands counteract the heating's thermal-related "lifting ambition" during heat-up and thus effectively prevent a possible critical overheating. For an even better protection all HotCoil heating elements can also be provided with an integrated thermocouple. As alternative to our standard clamping mechanism with welded clamping elements a space-saving lug clamping mechanism can be supplied.

Specifications for HotCoil with Clamp Band
Design Freek
System Clamp band
Function Screw clamping
Heater HotCoils 2,2 x 4,2 / 3,0 x 3,0 / 4,0 x 6,0 mm
Industry standard for HotCoil with Clamp Band
Dimension Ø x L freely selectable (≥ Inside Ø 25 mm)
Power Standards > see tables "HotCoil" (other wattage possible)

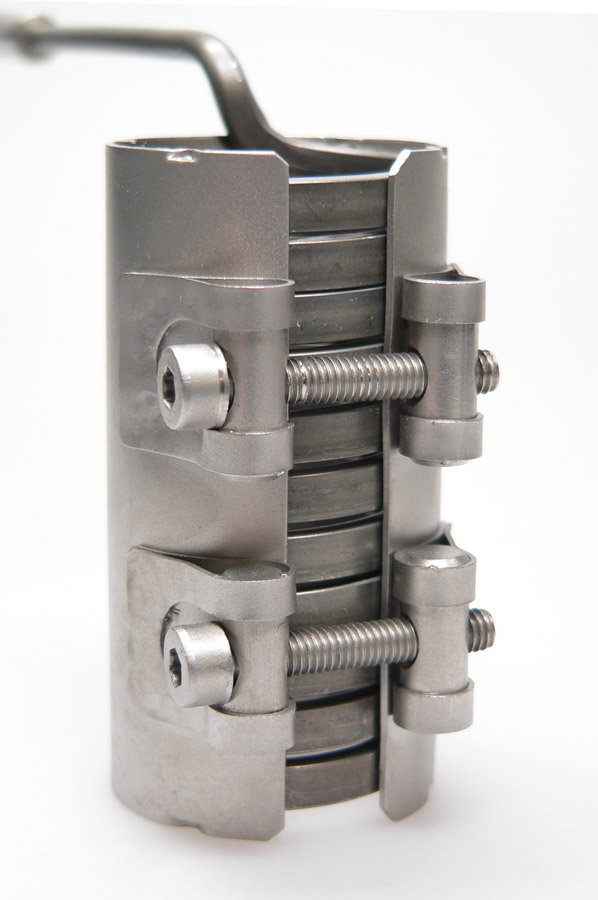

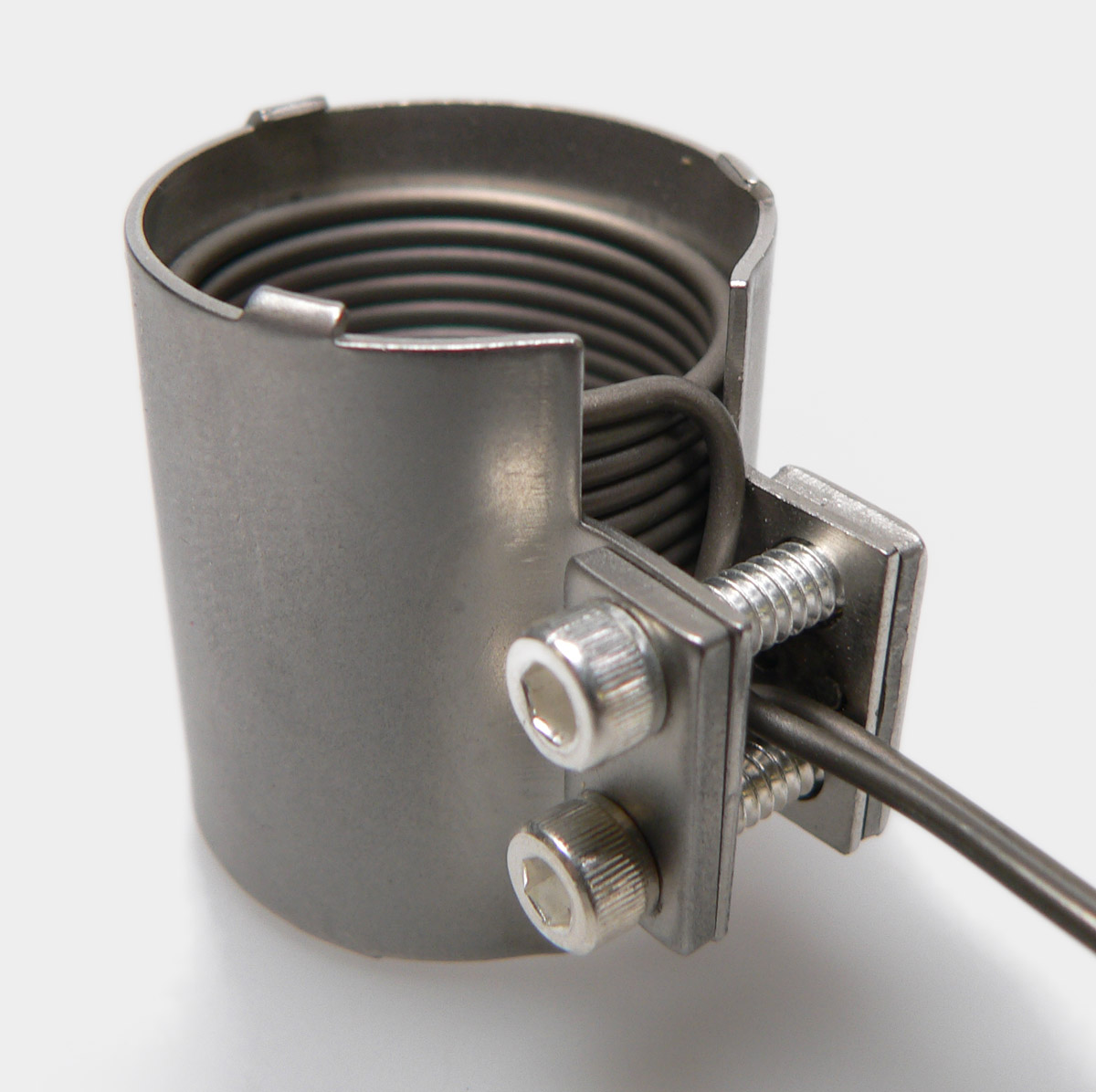

Two Screw Clamp Band (FB)

Two Screw Clamp Band Besides its own systems Freek also manufactures original Rosemount-systems that can also be used as "Husky-replacement heater" (see spare part cross-reference list). For example the two screw clamp band (FB) and the axial clamp band (FE). Both systems can be supplied with MicroCoils in "Rosemount style" (Ø 1,4 mm) as well as MicroCoils in "Freek style" (1,3 x 2,3 mm).

Specifications for Two Screw Clamp Band (FB)
Design Rosemount
System Clamp band FB
Function Two-screw clamping
Heater MicroCoils 1,3 x 2,3 mm
Ø 1,4 mm (Rosemount style)
Industry standard for Two Screw Clamp Band (FB)
Dimension Ø 19,05 x 25,40 mm (Ø 3/4" x 1")
Ø 19,05 x 30,50 mm (Ø 3/4" x 1,20")
Ø 22,23 x 30,50 mm (Ø 0,875" x 1,20")
Ø 22,40 x 30,50 mm
Ø 22,55 x 30,50 mm
Power 250W, 328W at 230V (other possible)
Power tolerance ±2% (possible)

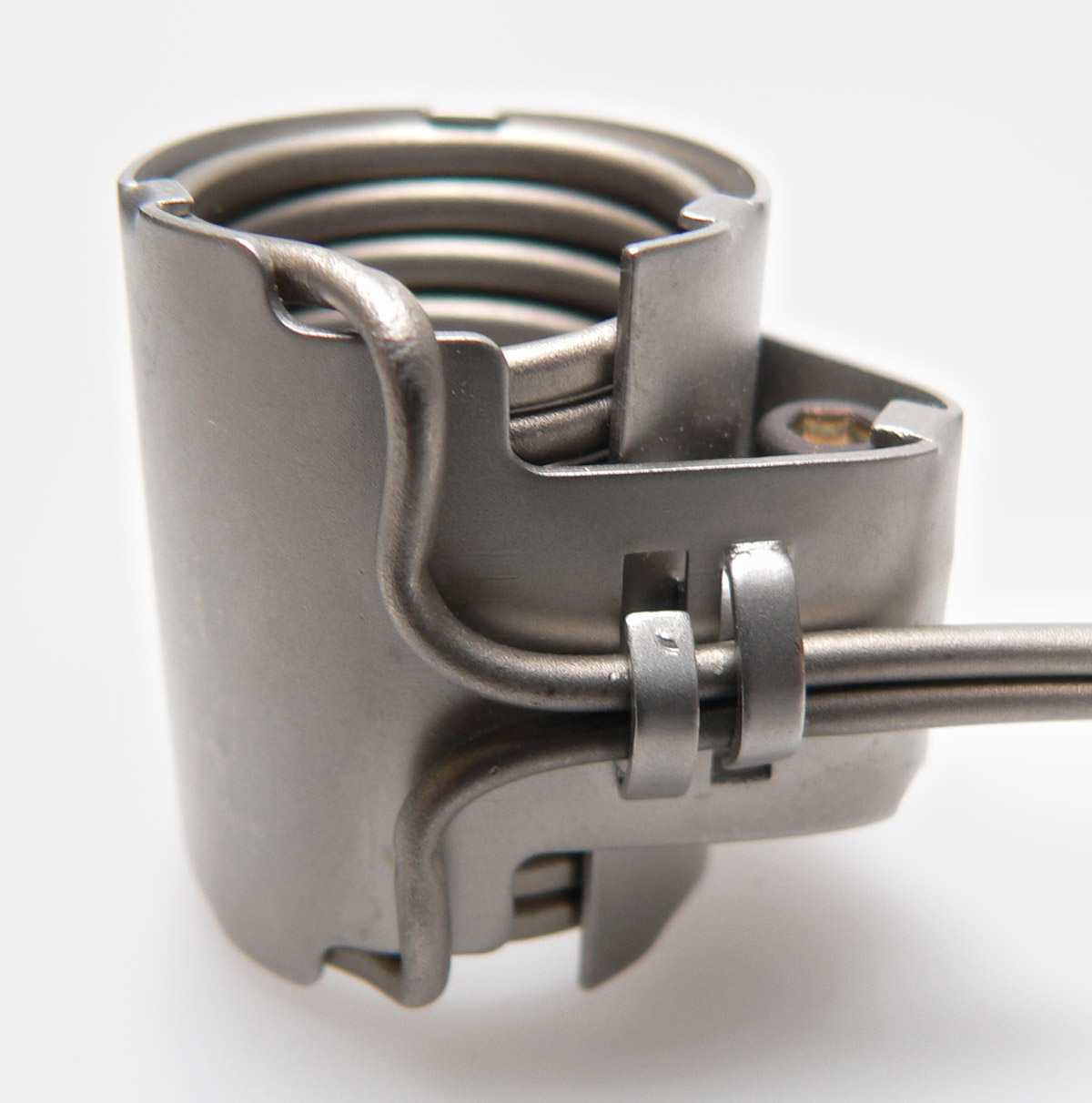

Axial Clamp Band (FE)

Axial Clamp Band (FE) Besides its own systems Freek also manufactures original Rosemount-systems that can also be used as "Husky-replacement heater" (see spare part cross-reference list). For example the two screw clamp band (FB) and the axial clamp band (FE). Both systems can be supplied with MicroCoils in "Rosemount style" (Ø 1,4 mm) as well as MicroCoils in "Freek style" (1,3 x 2,3 mm).

Specifications for Axial Clamp Band (FE)
Design Rosemount
System Clamp band FE
Function Axial clamping
Heater MicroCoils 1,3 x 2,3 mm
Ø 1,4 mm (Rosemount style)
Industry standard for Axial Clamp Band (FE)
Dimension Ø 19,05 x 25,40 mm (Ø 3/4" x 1")
Ø 19,05 x 30,50 mm (Ø 3/4" x 1,20")
Power 149W, 268W at 240V (other possible)
Power tolerance ±2% (possible)

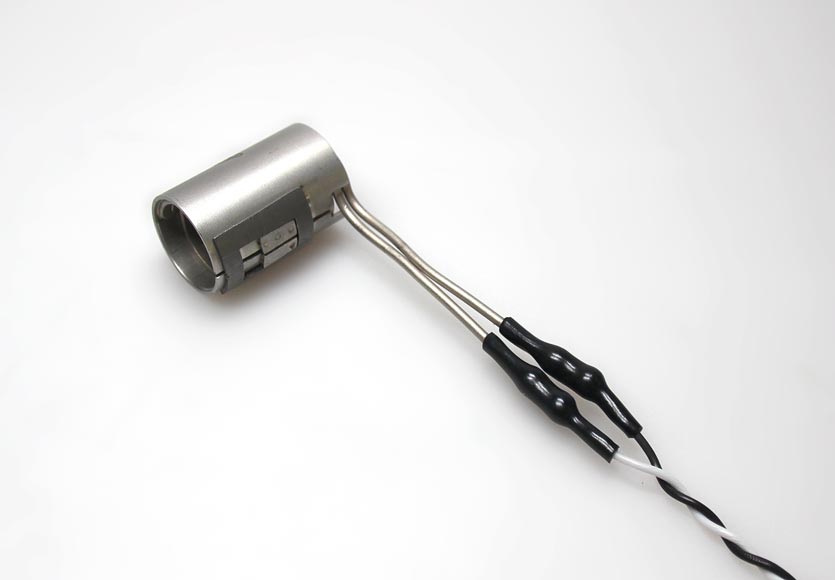

Locking System

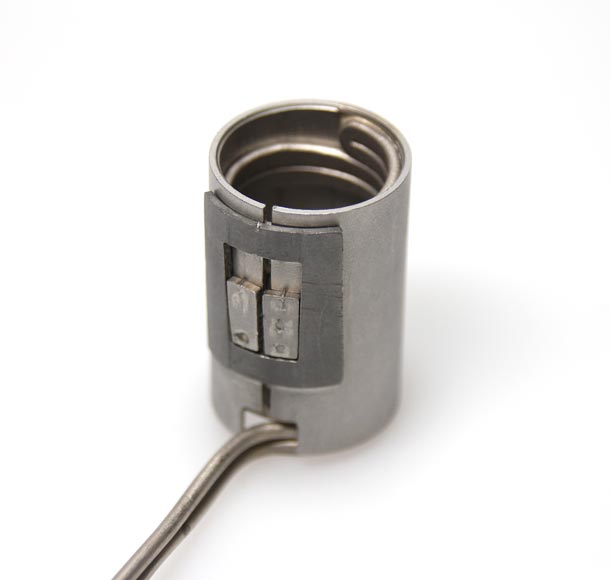

Our Locking System provides a quick, easy and reliable clamping of the heating element on the nozzle to be heated. It facilitates an effective heat transfer, as the inside sheath is pressed to the nozzle with a high level of precision creating an interference fit. Due to the method of construction of the lock, installation is possible in the restrictive space of small cavities. The lock can be operated quickly and efficiently with simple readily available tools.

Locking System [1 / 3]
Specifications for Locking System
Design Freek
System Clamp band
Function Axial clamping
Heater MicroCoils 1,0 x 1,6 / 1,3 x 2,3 mm
other heaters, also HotCoils possible
Industry standard for Locking System
Dimension Ø min. 15 mm, L freely selectable
Standards see tables "MicroCoil" / "HotCoil" (other wattage possible)

The video demonstrates how to use the locking system easily.
open video


Our YouTube channel

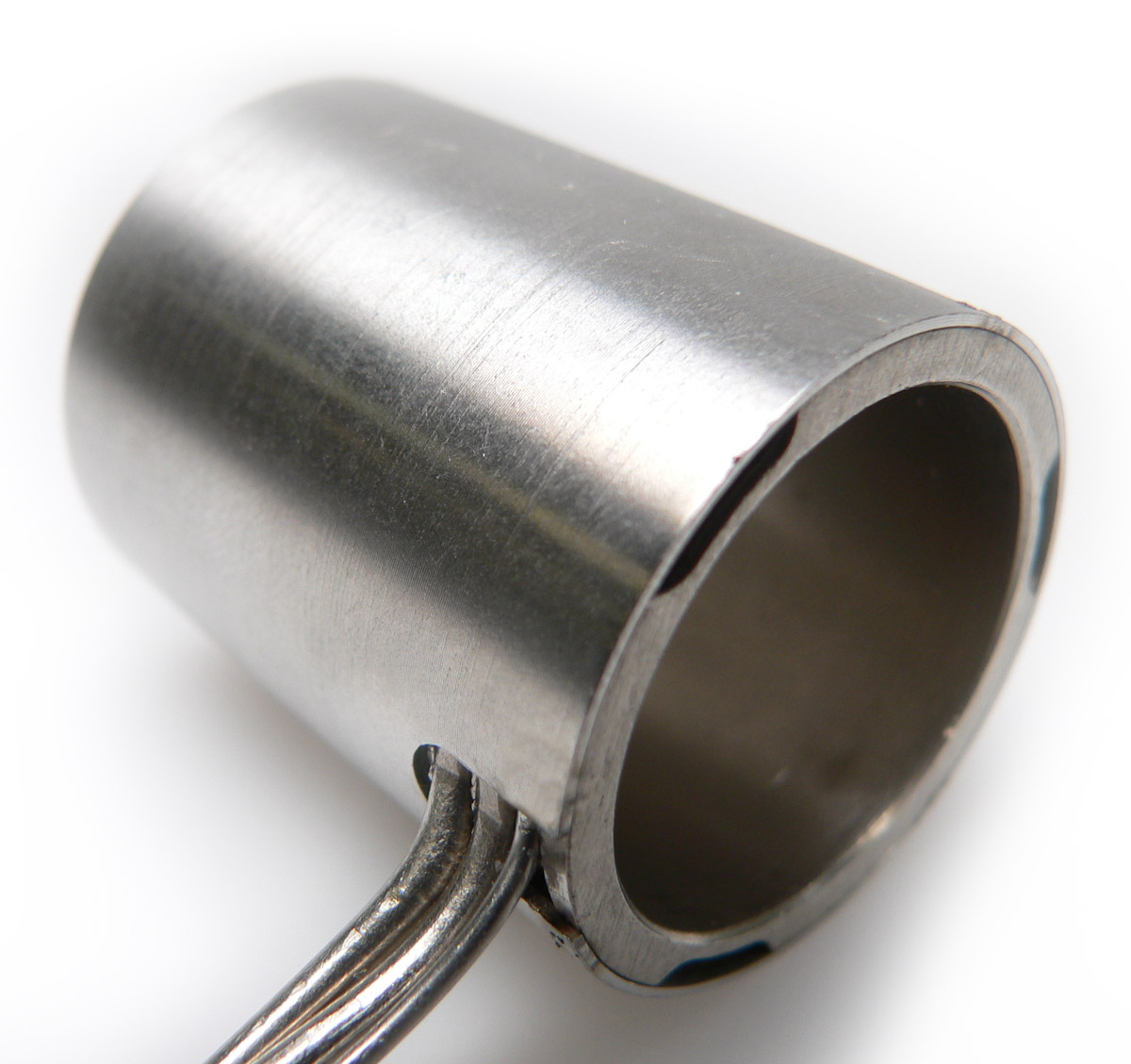

"Brazed Together" Housing (BT)

Brazed Together Housing (BT) [1 / 2] Like the "Axial-" (FE) and the "Two-Screw-"(FB) clamp band systems the "Brazed Together" housing is also an original Rosemount system that is exclusively manufactured at Freek. The Freek MicroCoil 1,3 x 2,3 mm used in this type is tightly coiled on a heat-conducting precision tube and encapsulated and thermically insulated by an outer lathing part. For an even better heat transition the heating element can be vacuum brazed as an option.

The "Brazed Together" design combines many advantages: high accuracy, good heat conduction, large power density and mechanical stability.

Specifications for "Brazed Together" Housing (BT)
Design Rosemount
System Housing BT
Function Toleranced fit
Heater MicroCoil 1,3 x 2,3 mm
Industry standard for "Brazed Together" Housing (BT)
Dimension Ø 19,05 x 25,40 mm (Ø 3/4" x 1")
Ø 19,05 x 30,50 mm (Ø 3/4" x 1,20")
Ø 22,40 x 30,50 mm
Ø 22,40 x 34,00 mm
other dimensions possible
(min. quantities of 25 pcs.)
Power on request
according to customer specifications

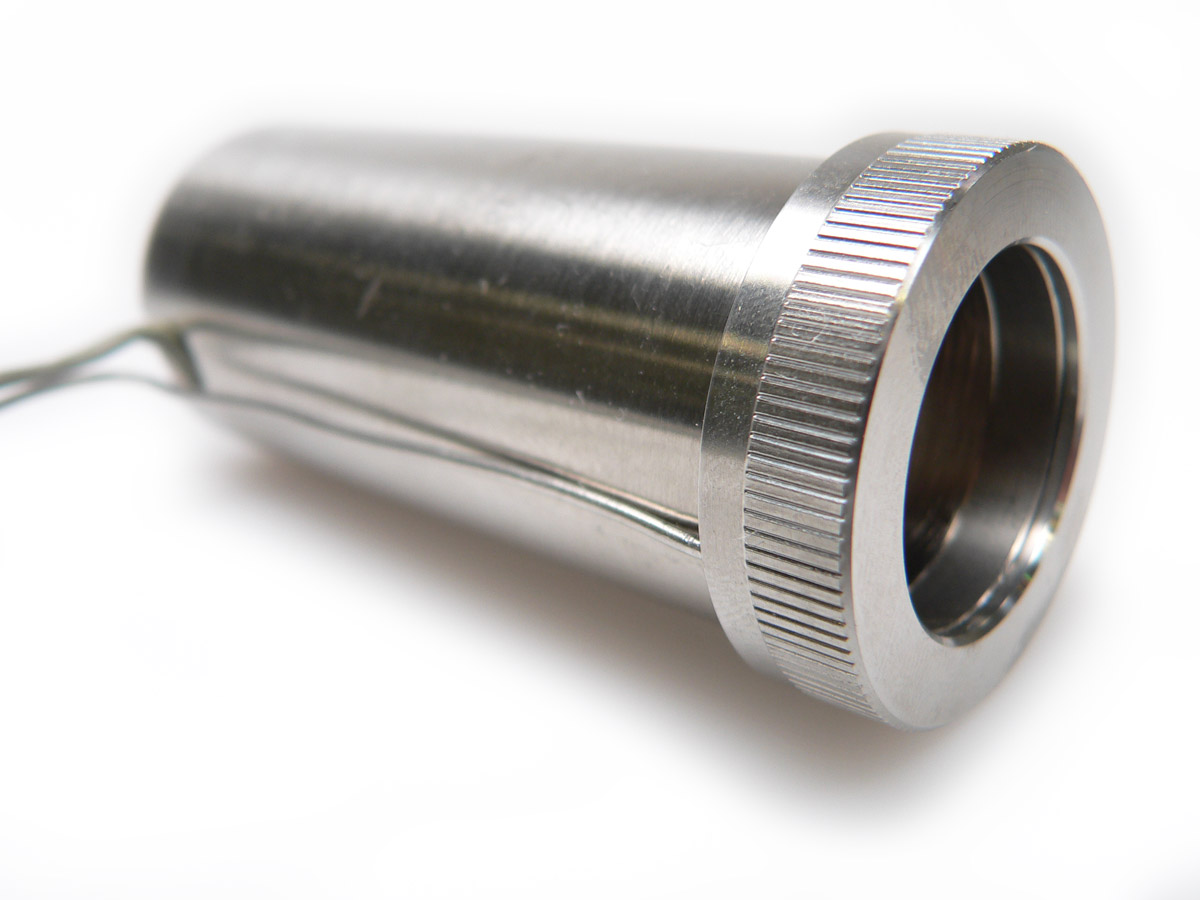

Kappa Series (compatible with Husky)

Kappa Series [1 / 2] The Kappa series is an original nozzle heater system of our EUCOPET co-operation partner Thermetic Products Inc. USA, which we assemble as well at Freek. At the same time it is a well-proven "Husky-replacement" heater (see spare part cross-reference list).

Thermetic's Kappa series are constructed with a nickel plated copper inner sleeve and a stainless outer sleeve. The heater is sandwiched between these sleeves eliminating the heat transfer problems associated with other dual sleeved designs. The material used direct the heat inward toward the nozzle, resulting in a very efficient heater with even heat distribution. The tightly toleranced ID allows a slip fit with no clamping required. An external bendable thermocouple Ø 1,0 mm can be assembled.

Specifications for Kappa Series
Design Thermetic
System Kappa
Function Toleranced fit
Heater Ø 1,4 mm (Thermetic style)
Industry standard for Kappa Series
Dimension Ø 19,05 mm (Ø 3/4")
Lengths: 30, 40, 50, 60, 70, 80, 90, 100, 110, 120, 130, 150, 170, 190 and 210 mm
Power 220, 350, 400 and 450W at 240V (other wattage possible)
Power tolerance ±2% (Ø 1,4 mm "Thermetic style")

Spare part cross-reference list

System Two Screw Clamp Band (FB)
System OEM
part number
wattage
[W]
ID
[mm]
L
[mm]
Freek
part number
Two Screw Clamp Band (FB) Husky
- 285W (230V) 19,00 25,40 (1,0") 64M8.001
520156 149W (240V) 19,05 (3/4") 30,50 (1,2") 64M9.008
521334 250W (230V) 19,05 (3/4") 30,50 (1,2") 64M9.001
- 300W (220V) 19,10 30,50 (1,2") 64MA.001
- 250W (230V) 22,22 30,50 (1,2") 64M9.002
- 250W (230V) 22,55 30,50 (1,2") 64M9.005
- 440W (240V) 39,88 44,45 (1,75") 64M9.009
System Axial Clamp Band (FE)
System OEM
part number
wattage
[W]
ID
[mm]
L
[mm]
Freek
part number
Axial Clamp Band (FE) Husky
534192 268W (240V) 19,05 (3/4") 30,50 (1,2") 64M9.011
534233 268W (240V) 19,05 (3/4") 30,50 (1,2") 64M9.003
534234 149W (240V) 19,05 (3/4") 30,50 (1,2") 64M9.004
534445 149W (240V) 19,05 (3/4") 30,50 (1,2") 64M9.010
System Reflection Tube Heater with heat conductive sleeve
System OEM
part number
wattage
[W]
ID
[mm]
L
[mm]
Freek
part number
Reflection Tube Heater with heat conductive sleeve SIG
- 250W (230V) 22,55 29 65S6.013
System Kappa Series
System OEM
part number
    wattage
[W]
ID
[mm]
L
[mm]
Freek
part number
System Kappa Series Husky 1250 series
1250 Bi-Metal 1250 Bi-Metal
(with TC)
Ultra 1250
(UNH)

535069 3083481 4187817 400 W
(240 V)
31,75 (1 1/4") 45 64P8.005
535070 - - - 31,75 (1 1/4") - -
535071 - - - 31,75 (1 1/4") - -
535072 - - - 31,75 (1 1/4") - -
535073 3083485 - 400 W
(240 V)
31,75 (1 1/4") 124 -
535074 3083486 - 400 W
(240 V)
31,75 (1 1/4") 144 64P9.001
535075 - - - 31,75 (1 1/4") - -
535344 - - - 31,75 (1 1/4") - -
535345 - - - 31,75 (1 1/4") - -
535346 - - - 31,75 (1 1/4") - -
535347 - - - 31,75 (1 1/4") - -
535348 - - - 31,75 (1 1/4") - -
535230 - - - cap - AXAU.187
- - - - TE - -
System Kappa Series
System OEM
part number
    wattage
[W]
ID
[mm]
L
[mm]
Freek
part number
System Kappa Series Husky 750 series
750 Bi-Metal 750 Bi-Metal
(HTR S/A)
Ultra 750
(UNH)

534975 - 5177912
4458363 (166 W)
220 W (240 V) 19,05 (3/4") 30 64P5.001
- - - 250 W (240 V) 19,05 (3/4") 30 64P5.005
- 1501609 - 350 W (240 V) 19,05 (3/4") 30 64P5.006
534976 - 4458365 (213 W) 220 W (240 V) 19,05 (3/4") 40 64P5.002
- - - 250 W (240 V) 19,05 (3/4") 40 64P5.008
- 1502992 - 350 W (240 V) 19,05 (3/4") 40 64P5.007
534977 - 4458366 (223 W) 220 W (240 V) 19,05 (3/4") 50 64P5.003
- - - 250 W (240 V) 19,05 (3/4") 50 64P5.009
- 1502993 - 350 W (240 V) 19,05 (3/4") 50 64P5.012
534978 - 4458367 (233 W) 220 W (240 V) 19,05 (3/4") 60 64P5.004
- - - 250 W (240 V) 19,05 (3/4") 60 64P5.010
- 1501594 - 400 W (240 V) 19,05 (3/4") 60 64P6.022
534979 - 4458368 (243 W) 220 W (240 V) 19,05 (3/4") 70 64P6.001
- 1502994 - 400 W (240 V) 19,05 (3/4") 70 64P6.006
534980 - 4458369 (253 W) 220 W (240 V) 19,05 (3/4") 80 64P6.002
- 1501595 - 400 W (240 V) 19,05 (3/4") 80 64P6.007
534981 - 4458370 (263 W) 220 W (240 V) 19,05 (3/4") 90 64P6.003
- - - 350 W (240 V) 19,05 (3/4") 90 64P6.019
- 1502995 - 400 W (240 V) 19,05 (3/4") 90 64P6.008
534982 - 4458371 (273 W) 220 W (240 V) 19,05 (3/4") 100 64P6.004
- - - 350 W (240 V) 19,05 (3/4") 100 64P6.020
- 1501596 - 400 W (240 V) 19,05 (3/4") 100 64P6.009
534983 - 4458372 (283 W) 220 W (240 V) 19,05 (3/4") 110 64P6.005
- - - 350 W (240 V) 19,05 (3/4") 110 64P6.021
- 1502996 - 400 W (240 V) 19,05 (3/4") 110 64P6.010
- - 4458373 (293 W) 220 W (240 V) 19,05 (3/4") 120 -
535470 - - 220 W (240 V) 19,05 (3/4") 130 64P7.001
- 1502997 4458374 (303 W) 400 W (240 V) 19,05 (3/4") 130 64P7.003
535471 - - 220 W (240 V) 19,05 (3/4") 150 64P7.002
- 1502998 4458376 (323 W) 450 W (240 V) 19,05 (3/4") 150 64P7.004
535472 - - 220 W (240 V) 19,05 (3/4") 170 64P8.001
- 1502999 4458380 (343 W) 450 W (240 V) 19,05 (3/4") 170 64P8.003
535473 - - 220 W (240 V) 19,05 (3/4") 190 64P8.002
- 1503000 4458382 (363 W) 450 W (240 V) 19,05 (3/4") 190 64P8.004
535474 - - 220 W (240 V) 19,05 (3/4") 210 -
- 1503001 4458386 (383 W) 450 W (240 V) 19,05 (3/4") 210 -
535181 - - - cap - AXAU.095
- - - - TC - -
System Kappa Series
System OEM
part number
    wattage
[W]
ID
[mm]
L
[mm]
Freek
part number
System Kappa Series Husky 500 series
500 HTM Copper
Ultra 500
(5... = epoxy /
2... = ceramic)
Ultra 500 (UNH)
- - 4778275 (153 W) 280 W (240 V) 12,75 (1/2") 40 -
- - 4778276 (159 W) 280 W (240 V) 12,75 (1/2") 50 -
- 5442630/2343737 4778277 (164 W) 280 W (240 V) 12,75 (1/2") 60 64P7.013
- 5442631 4778278 (170 W) 280 W (240 V) 12,75 (1/2") 70 -
- 5442632 4778279 (175 W) 280 W (240 V) 12,75 (1/2") 80 -
- 5442633/2343739 4778280 (180 W) 280 W (240 V) 12,75 (1/2") 90 64P7.010
- 5442634/2343741 4778281 (186 W) 280 W (240 V) 12,75 (1/2") 100 64P7.016
3191678 5442635/2343742 4778282 (191 W) 280 W (240 V) 12,75 (1/2") 110 64P7.012
- 5442636/2343743 4778283 (197 W) 280 W (240 V) 12,75 (1/2") 120 -
3191680 5442637/2343744 4778284 (202 W) 280 W (240 V) 12,75 (1/2") 130 64P7.015
- 2343745 4778285 (208 W) 280 W (240 V) 12,75 (1/2") 140 64P7.008
- - 4778286 (213 W) 280 W (240 V) 12,75 (1/2") 150 -
- - 4778287 (218 W) 280 W (240 V) 12,75 (1/2") 160 -
- - 4778288 (224 W) 280 W (240 V) 12,75 (1/2") 170 -
- - 4778289 (229 W) 280 W (240 V) 12,75 (1/2") 180 -
- - 4778290 (235 W) 280 W (240 V) 12,75 (1/2") 190 64P7.011
- - 4778291 (240 W) 280 W (240 V) 12,75 (1/2") 200 -
- - 4778292 (246 W) 280 W (240 V) 12,75 (1/2") 210 64P7.009
- - 4778293 (251 W) 280 W (240 V) 12,75 (1/2") 220 -
- - 4778294 (257 W) 280 W (240 V) 12,75 (1/2") 230 64P7.017
- - 4778295 (262 W) 280 W (240 V) 12,75 (1/2") 240 -
- - 4778296 (267 W) 280 W (240 V) 12,75 (1/2") 250 -
- - 4778297 (273 W) 280 W (240 V) 12,75 (1/2") 260 -
- - 4778298 (278 W) 280 W (240 V) 12,75 (1/2") 270 -
- - 4778299 (284 W) 280 W (240 V) 12,75 (1/2") 280 -
- - 4778300 (289 W) 280 W (240 V) 12,75 (1/2") 290 -
- - 4778301 (295 W) 280 W (240 V) 12,75 (1/2") 300 -
System Kappa Series
System OEM
part number
wattage
[W]
ID
[mm]
L
[mm]
Freek
part number
System Kappa Series Husky 500 series
500 HTM Brass
5421799 (210 W) 280 W (240 V) 12,75 (1/2") 110 -
5421753 (220 W) 280 W (240 V) 12,75 (1/2") 130 -
5421754 (220 W) 280 W (240 V) 12,75 (1/2") 140 -
5421755 (220 W) 280 W (240 V) 12,75 (1/2") 150 -
5421756 (230 W) 280 W (240 V) 12,75 (1/2") 160 -
5421757 (230 W) 280 W (240 V) 12,75 (1/2") 170 65S6.160
5421758 (230 W) 280 W (240 V) 12,75 (1/2") 180 -
5421759 (230 W) 280 W (240 V) 12,75 (1/2") 190 65S6.159
5421760 (240 W) 280 W (240 V) 12,75 (1/2") 200 65S6.149
5421761 (240 W) 280 W (240 V) 12,75 (1/2") 210 -
Brazed Together
System OEM
part number
wattage
[W]
ID
[mm]
L
[mm]
Freek
part number
Brazed Together E 1127-124 460W (230V) 36,00 47,00 65T9.005
NT 1058 400W (230V) 36,00 45,00 65T9.006
NT 1701 246W (230V) 22,40 34,00 65T6.007
ZB 340 246W (230V) 22,40 30,50 65T6.003
ZB 422 246W (230V) 22,40 34,00 65T6.006


Downloads:

  • Flyer Xtreme small
    Flyer Xtreme small

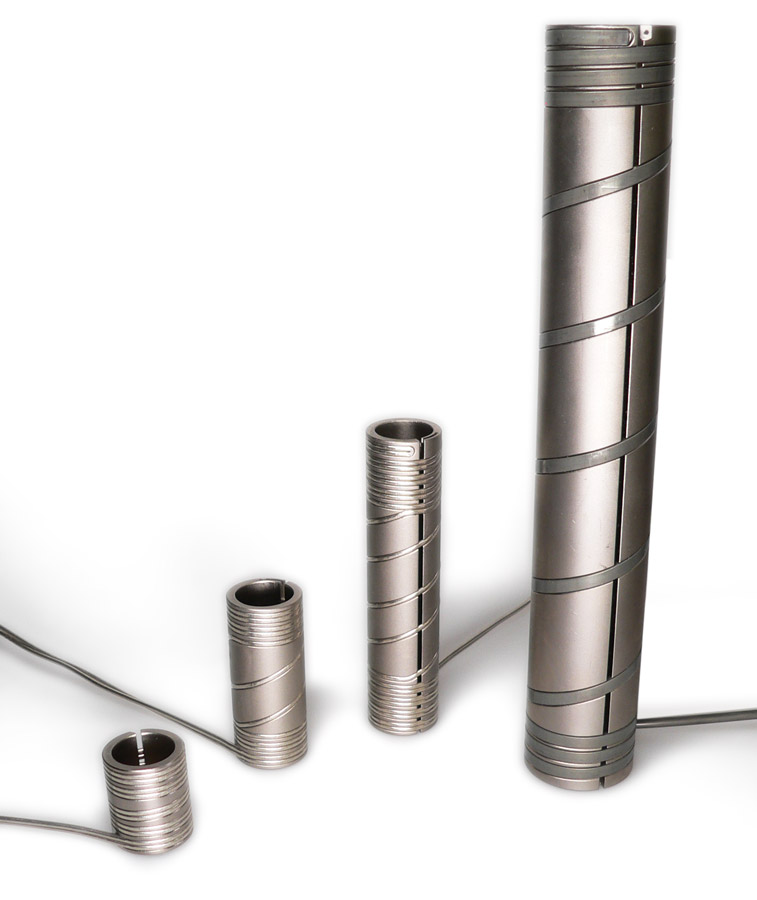

    Our "Xtreme small" heating elements set standards in the field of micro injection moulding and micro applications for electric process heat in general.


You may find this interesting as well:

Needing help?

In case of any queries our team will be happy to assist you!


Direct line

Tel.: +49 2373 9590 0

Fax: +49 2373 9590 30

E-Mail:


Contact Form

open Contact Form

You would like to contact us or submit an inquiry? Please complete the form below and send it to us.


Callback Form

open Callback Form

You need detailed information and competent advice? Please fill in all mandatory fields so that you can be contacted by the right person.


upward
