![Square Cartridge Heaters [1 / 2]](/pics/products/cap1_41_draw_g.jpg)

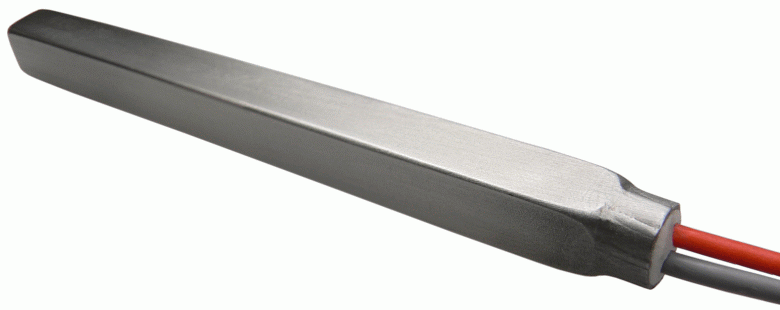

Square cartridge heaters are used where much power has to be installed near the surface
of a tool, e.g. in cutting knives, sealing stations or hot plates. The cartridge heaters can easily be
pressed into a rectangular groove. Apart from the advantageous heat transfer over ¾ of the sheath, it
is not necessary to cement or cast in the heater which is imperative for round cartridge heaters. Unlike
tubular heaters which are also available in square sections
(see chapter Flexible Heating Pipes),
the square cartridge heaters have the termination on one side and can be loaded with 16W/cm² (2.5W/in²) due to their special inside construction.
| Cross sections in mm | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| * When installing into a groove, the tolerance may need to be restricted. Please contact us early in this case. | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| ⍁ | 4,5 x 4,5 ±0,1 | 6 x 6 ±0,1 | 8 x 8 ±0,1 | 10 x 10 ±0,15 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Ø | 4,5 ±0,1 | 6 ±0,1 | 8 ±0,1 | 10 ±0,15 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Tolerance | ±0,15* | ±0,15* | ±0,15* | ±0,15* | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| (No warranty claims can be derived from this table) | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Wattage: | ±10% | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Length: | ±5% | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Connection
Just like round cartridge heaters (see chapter Options for Cartridge Heaters)
Sheath
stainless steel 1.4541 (nickel 2.4068)
Bendable executions
adjustable to 2D & 3D contours
|

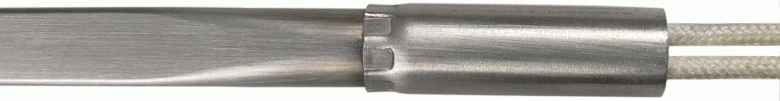

with terminal head 4,5 x 4,5 mm » Ø 6,5 x 30 mm 6,0 x 6,0 mm » Ø 8,0 x 30 mm 8,0 x 8,0 mm » Ø 9,2 x 30 mm 10 x 10 mm » on request 6,0 x 12 mm » on request |
|

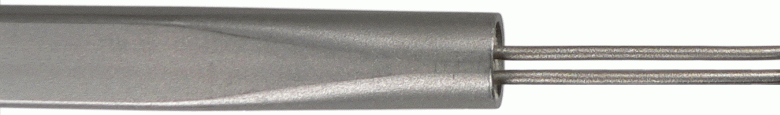

with nickel pins |
Square Cartridge Heaters are perfectly suited for heating Heating Plates & Hot Surfaces.
