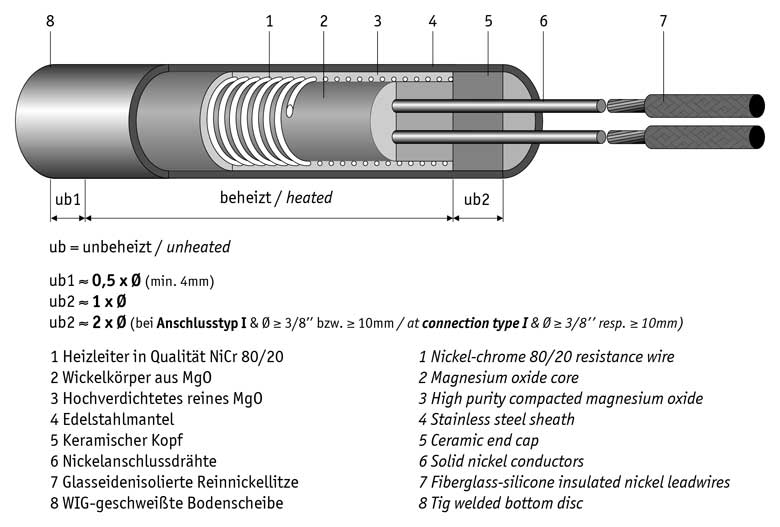

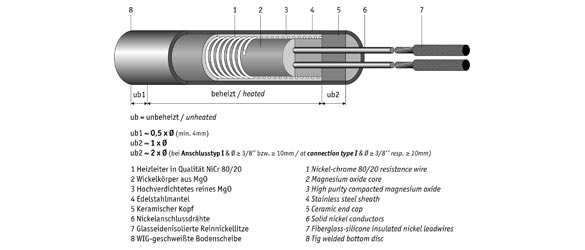

High−Density Cartridge Heaters

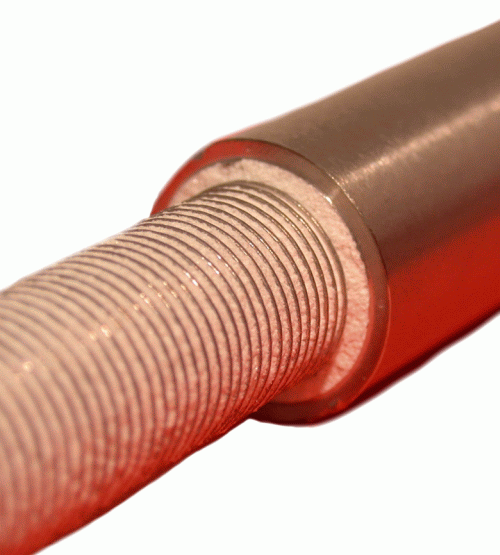

High density cartridge heaters distinguish themselves by their high compression and therefore especially efficient heat emission. That's why we produce them with a ground surface for a H7 fit. The resistance wire is spooled on a ceramic core as shown on the photograph. Afterwards the space between wire and cartridge sheath is filled with MgO. Finally the cartridge is swaged and thus compressed. Advantage of this construction is the resistance wire's short distance to the sheath, the resulting very good heat emission and the excellent control response.

Table for technical data and tolerances

Technical data and tolerances:
^*1 Other tolerances possible on request
Power ≤ 25 W^*1:	+20 / -10	%
Power > 25 W^*1:	±10	%
Resistance:	±10	%
Dielectric stregth (voltage applied):	1500	V
Insulation (cold 500 V DC):	>10	MΩ
Leakage current (cold):	< 0,5	mA
Max. working temperature allowed on sheath:	750	°C

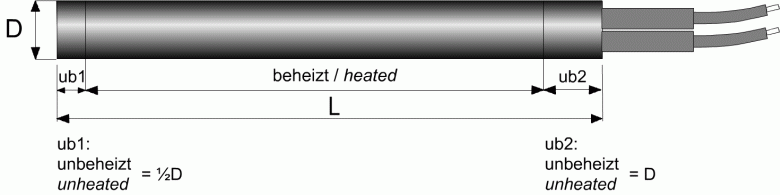

Length tolerance (min. ± 2 mm):	±2	%

^*2 on request Ø 25 mm / 1'': L_min 150 mm, L_max 1500 mm Ø 32 mm / 1 ¼'': L_min 300 mm, L_max 2000 mm (No warranty claims can be derived from this table)
Diametre in mm	4	5	6,5 ¼''	8	10 3/8''	12,5 ½''	16 5/8''	20 ¾''	25 ^2 1'' ^2	32 ^2 1 ¼'' ^2
Diameter tolerances in mm	-0,02 -0,06	-0,02 -0,06	-0,02 -0,06	-0,02 -0,06	-0,02 -0,07	-0,02 -0,08	-0,02 -0,08	-0,02 -0,10	on request	on request
max Volts (special voltage on request)	240	240	240	240	240	240	400	400	400	400
max Amps	2	2,5	4	5	8	14	18	22	25	25

Standard connection(s) » see type I, type N, type F
Standard diametres, length and power » see following tables
Options » see chapter Options for Cartridge Heaters

Standard connection(s)

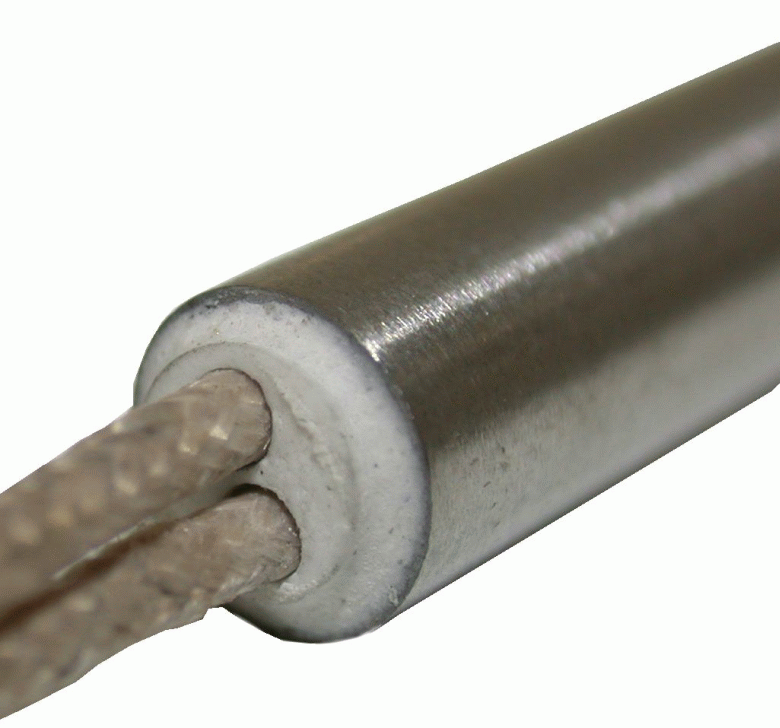

Type I
Electric contact is made "Inside" the cartridge heater (max. lead length uncoupled 1000 mm up to Ø 8 mm) Advantage: flexible termination area

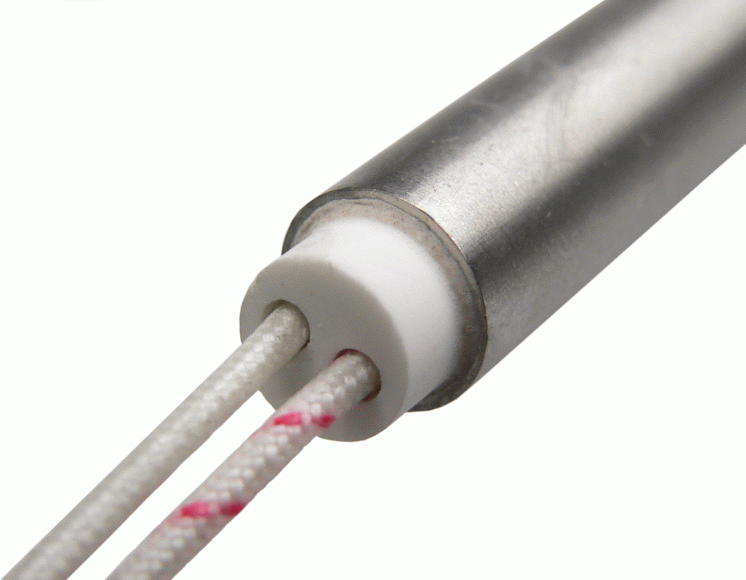

Type N
The Normal electric contact is made outside the cartridge heater and is protected by a silicone impregnated fibre glass sleeve Advantage: cheap production, length of the lead freely selectable

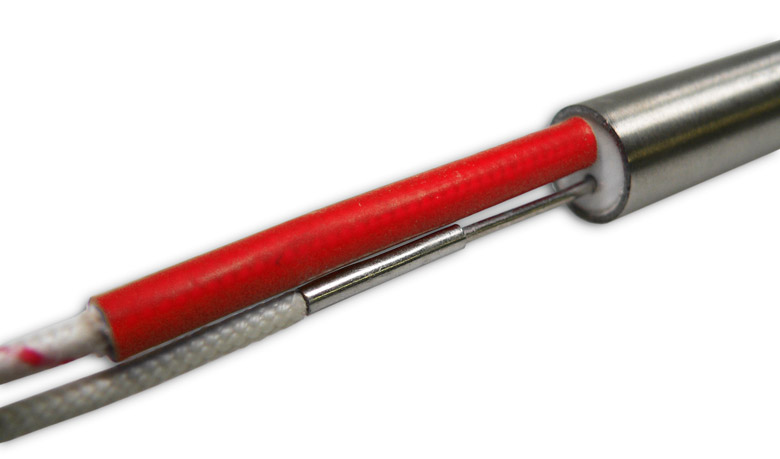

Type F

Ø	3/8'' 10 mm	1/2'' 12,5 mm	5/8'' 16 mm	3/4'' 20 mm
T [mm]	5	6	7	8

Flexible version of the outside contacted "normal" connection type N
Advantage: Connection is protected from bending in a ceramic cap, can be manufactured of stock cartridge heaters, length of the lead freely selectable

Standard leads:

250 mm fibre glass insulated nickel leads (up to 300 °C permanent temperature resistant)
for High-Density Cartridge Heaters Ø 4,0 mm PTFE leads (up to 260 °C permanent temperature resistant)
(With thermocouple: 1000 mm)
(Thermo leads see chapter Options for Cartridge Heaters)

Ø	4,0 mm	5,0 mm	6,5 mm 1/4''	8 mm	10 mm 3/8''	12,5 mm 1/2''	16 mm 5/8''	20 mm 3/4''	Legend
I	S	S	S	S	O	O	O	O	S = Standard O = Option
N	-	-	-	-	S	S	S	S
F	-	-	-	-	O	O	O	O

Standard cartridge heaters (metric)

Ø 4 mm Ø 5 mm Ø 6,5 mm Ø 8 mm Ø 10 mm Ø 12,5 mm Ø 16 mm Ø 20 mm

Ø 4 mm *
Ø mm	L mm	W 230 V	W/cm²	TC
* The cartridge heaters are to be considered as special for the pricing.
4,0 * -0,02 -0,06	30	50	20	-
	30	75	30	-
	35	60	19	-
	35	90	29	-
	40	70	19	-
	40	105	28	-
	45	80	18	-
	45	120	27	-
	50	90	18	-
	50	135	27	-
	55	100	18	-
	55	150	27	-
	60	110	18	-
	60	165	26	-
	70	130	17	-
	70	195	26	-
	80	150	17	-
	80	225	26	-

Ø 5 mm *
Ø mm	L mm	W 230 V	W/cm²	TC
* The cartridge heaters are to be considered as special for the pricing.
5,0 * -0,02 -0,06	30	100	42	x
	30	125	53	x
	40	100	26	x
	40	160	41	x
	50	100	18	x
	50	160	29	x
	60	125	18	x
	60	200	28	x
	80	125	12	x
	80	200	20	x
	100	160	12	x
	100	250	19	x
	130	200	11	x
	130	315	18	x

Ø 6,5 mm
Ø mm	L mm	W 230 V	W/cm²	TC
stock cartridge heater
6,5 -0,02 -0,06	40	80	15	-
		100	18	-
		125	22	x
		160	28	x
		200	36	x
	50	125	16	x
		160	21	x
		200	26	x
		250	32	-
		315	42	-
	60	125	13	-
		160	17	x
		200	21	x
		250	26	x
		315	33	-
	80	160	12	-
		200	15	x
		250	19	x
		315	24	x
	100	200	12	-
		250	15	x
		315	18	x
		400	24	x
	130	250	11	-
		315	13	x
		400	17	x
		500	22	x
	160	250	9	-
		315	11	x
		400	14	x
		500	18	x

Ø 8 mm
Ø mm	L mm	W 230 V	W/cm²	TC
stock cartridge heater
8 -0,02 -0,06	40	125	18	-
		160	23	x
		200	30	x
	50	125	14	-
		160	18	x
		200	22	-
		250	28	x
	60	160	14	-
		200	17	x
		250	22	-
		315	27	x
	80	200	12	-
		250	15	x
		315	19	x
		400	24	x
	100	200	9	-
		250	12	x
		315	14	-
		400	18	x
	130	250	9	-
		315	11	x
		400	14	-
		500	18	x
	160	250	7	-
		315	9	x
		400	11	-
		500	14	x

Ø 10 mm
Ø mm	L mm	W 230 V	W/cm²	TC
stock cartridge heater
10 -0,02 -0,07	40	125	16	-
		160	20	x
		200	25	x
		250	32	x
		315	39	-
	50	160	15	-
		200	18	x
		250	23	x
		315	28	x
		400	36	-
		500	46	-
	60	160	12	-
		200	15	x
		250	18	x
		315	23	x
		400	30	-
		500	37	-
	80	200	10	-
		250	13	x
		315	16	x
		400	20	x
		500	26	-
		630	32	-
	100	250	10	-
		315	12	x
		400	16	x
		500	20	x
		630	25	-
		800	31	-
	130	250	7	-
		315	9	x
		400	12	x
		500	14	x
		630	18	-
		800	23	-
	160	315	7	-
		400	9	x
		500	11	x
		630	14	x
		800	18	-
		1000	22	-
	200	400	7	-
		500	9	x
		630	11	-
		800	14	x
		1000	18	-

Ø 12,5 mm
Ø mm	L mm	W 230 V	W/cm²	TC
stock cartridge heater
12,5 -0,02 -0,08	40	160	16	-
		200	20	x
		250	25	x
		315	32	-
	50	160	11	-
		200	14	x
		250	18	-
		315	22	x
		400	28	x
	60	200	11	-
		250	14	x
		315	18	-
		400	22	x
		500	28	-
	80	200	8	-
		250	10	x
		315	13	-
		400	16	x
		500	20	-
		630	25	-
	100	315	10	-
		400	12	x
		500	15	-
		630	19	x
		800	24	-
		1000	30	-
	130	315	7	-
		400	9	x
		500	11	-
		630	14	x
		800	18	-
		1000	22	-
	160	400	7	-
		500	9	x
		630	11	-
		800	14	x
		1000	18	-
		1250	22	-
	200	500	7	-
		630	9	x
		800	11	-
		1000	14	x
		1250	17	-
		1600	22	-
	250	630	7	-
		800	9	x
		1000	11	-
		1250	13	x
		1600	18	-
		2000	22	-
	300	630	6	-
		800	7	-
		1000	9	x
		1250	11	-
		1600	15	x
		2000	18	-

Ø 16 mm
Ø mm	L mm	W 230 V	W/cm²	TC
stock cartridge heater
16 -0,02 -0,08	50	200	12	-
		250	15	-
		315	19	-
		400	24	-
	60	200	9	-
		250	11	-
		315	14	-
		400	18	-
		500	22	-
	80	250	8	-
		315	10	-
		400	13	-
		500	16	-
		630	20	-
		800	26	-
	100	315	8	-
		400	10	-
		500	12	-
		630	15	-
		800	20	-
		1000	24	-
	130	400	7	-
		500	9	-
		630	11	-
		800	14	-
		1000	18	-
		1250	22	-
	160	500	7	-
		630	9	-
		800	11	-
		1000	14	-
		1250	18	-
		1600	22	-
	200	630	7	-
		800	9	-
		1000	11	-
		1250	14	-
		1600	18	-
		2000	22	-
	250	630	5	-
		800	7	-
		1000	9	-
		1250	11	-
		1600	14	-
		2000	18	-
	300	800	6	-
		1000	7	-
		1250	9	-
		1600	11	-
		2000	14	-
		2500	18	-
	350	800	5	-
		1000	6	-
		1250	8	-
		1600	10	-
		2000	12	-
		2500	16	-
	400	800	4	-
		1000	5	-
		1250	6	-
		1600	8	-
		2000	10	-
		2500	13	-

Ø 20 mm
Ø mm	L mm	W 230 V	W/cm²	TC
20 -0,02 -0,10	80	400	11	-
		500	14	-
		630	17	-
	100	400	8	-
		500	10	-
		630	13	-
	130	500	7	-
		630	9	-
		800	12	-
		1000	15	-
	160	630	7	-
		800	9	-
		1000	11	-
		1250	14	-
	200	800	7	-
		1000	9	-
		1250	11	-
		1600	14	-
	250	1000	7	-
		1250	9	-
		1600	11	-
		2000	14	-
	300	1000	6	-
		1250	7	-
		1600	9	-
		2000	11	-
	350	1250	6	-
		1600	8	-
		2000	10	-
		2500	12	-
	400	1250	5	-
		1600	7	-
		2000	9	-
		2500	11	-
	450	1600	6	-
		2000	7	-
		2500	9	-
		3200	12	-
	500	1600	5	-
		2000	6	-
		2500	8	-
		3200	11	-

Standard cartridge heaters (inch)

Ø 1/4'' Ø 3/8'' Ø 1/2'' Ø 5/8'' Ø 3/4''

Ø 1/4''
Ø mm	L mm	W 230 V	W/cm²	TC
1/4'' 6,35 mm -0,02 -0,06	1'' 25,4 mm	100	38	-
	1'' 25,4 mm	160	53	x
	1''1/4 31,8 mm	100	25	-
		125	31	x
		160	40	x
		200	50	x
	1''1/2 38,1 mm	80	15	-
		100	18	-
		125	23	x
		160	29	x
		200	36	x
	2'' 50,8 mm	125	17	-
		160	21	x
		200	27	x
		250	33	x
		315	42	-
	2''1/2 63,5 mm	125	13	-
		160	16	-
		200	20	x
		250	25	x
		315	32	x
	3 76,2 mm	160	13	-
		200	16	x
		250	20	x
		315	25	x
	3''1/2 88,9 mm	160	11	-
		200	13	x
		250	17	x
		315	21	x
	4'' 101,6 mm	200	11	-
		250	14	x
		315	18	x
		400	23	x
	5'' 127 mm	250	11	-
		315	14	x
		400	18	x
		500	23	x
	6'' 152,4 mm	250	9	-
		315	12	x
		400	15	x
		500	18	x

Ø 3/8''
Ø	L	W 230 V	W/cm²	TC
3/8'' 9,52 mm -0,02 -0,07	1'' 25,4 mm	125	28	-
	1'' 25,4 mm	200	44	x
	1''1/4 31,8 mm	125	21	-
	1''1/4 31,8 mm	200	33	x
	1''1/2 38,1 mm	125	17	-
		160	21	x
		200	27	x
		250	33	x
		315	42	-
	1''3/4 44,5 mm	125	13	x
		160	17	x
		200	21	x
		250	26	x
		315	33	x
	2'' 50,8 mm	160	15	-
		200	19	x
		250	24	x
		315	30	x
		400	38	-
	2''1/2 63,5 mm	160	11	-
		200	14	x
		250	17	x
		315	22	x
		400	28	x
		500	34	-
	3'' 76,2 mm	200	11	-
		250	14	x
		315	18	x
		400	22	x
		500	28	x
		630	45	-
	3''1/2 88,9 mm	200	9	-
		250	11	x
		315	14	x
		400	18	x
		500	23	x
		630	29	-
	4'' 101,6 mm	250	10	-
		315	12	x
		400	16	x
		500	20	x
		630	25	-
		800	32	-
	5'' 127 mm	250	7	-
		315	9	-
		400	12	x
		500	15	x
		630	18	-
		800	24	-
	6'' 152,4 mm	315	8	-
		400	10	x
		500	12	x
		630	15	x
		800	20	-
		1000	24	-
	7'' 177,8 mm	400	8	-
		500	10	x
		630	13	-
		800	16	x
		1000	21	-
	8'' 203,2 mm	400	7	-
		500	9	x
		630	11	-
		800	18	x
1000		23	-

Ø 1/2''
Ø	L	W 230 V	W/cm²	TC
1/2'' 12,7 mm -0,02 -0,08	1''1/2 38,1 mm	160	18	-
		200	22	x
		250	28	x
		315	35	-
	2'' 50,8 mm	160	11	-
		200	14	x
		250	18	-
		315	22	x
		400	28	-
	2''1/2 63,5 mm	200	10	-
		250	13	x
		315	16	-
		400	20	x
		500	26	-
	3'' 76,2 mm	250	10	x
		315	13	-
		400	16	x
		500	20	-
		630	26	-
		800	33	-
	3''1/2 88,9 mm	250	9	-
		315	11	x
		400	14	x
		500	18	x
		630	22	-
		800	28	-
	4'' 101,6 mm	315	9	-
		400	12	x
		500	15	x
		630	18	x
		800	24	-
		1000	36	-
	5'' 127 mm	315	7	-
		400	9	x
		500	11	-
		630	14	x
		800	18	x
		1000	23	-
	6'' 152,4 mm	400	7	-
		500	9	x
		630	12	-
		800	15	x
		1000	18	-
		1250	23	-
	7'' 177,8 mm	400	6	-
		500	8	x
		630	10	-
		800	12	x
		1000	16	-
	8'' 203,2 mm	500	7	-
		630	8	x
		800	11	-
		1000	14	x
		1250	17	-
		1600	22	-
	9'' 228,6 mm	500	6	-
		630	8	x
		800	10	-
		1000	12	x
		1250	15	-
		1600	19	-
	10'' 254 mm	630	7	-
		800	9	x
		1000	11	-
1250		13	x
1600		17	x
2000		21	-
12'' 304,8 mm	630	6	-
	800	7	-
	1000	9	x
	1250	11	-
	1600	14	x
	2000	18	-

Ø 5/8''
Ø	L	W 230 V	W/cm²	TC
5/8'' 15,87 mm -0,02 -0,08	2'' 50,8 mm	200	11	-
		250	14	-
		315	18	-
		400	23	-
	2''1/2 63,5 mm	200	8	-
		250	10	-
		315	13	-
		400	16	-
		500	20	-
	3'' 76,2 mm	250	8	-
		315	11	-
		400	13	-
		500	17	-
		630	21	-
		800	26	-
	4'' 101,6 mm	315	8	-
		400	10	-
		500	12	-
		630	15	-
		800	20	-
		1000	24	-
	5'' 127 mm	400	7	-
		500	8	-
		630	10	-
		800	14	-
		1000	17	-
		1250	21	-
	6'' 152,4 mm	500	7	-
		630	9	-
		800	12	-
		1000	15	-
		1250	19	-
		1600	24	-
	7'' 177,8 mm	500	6	-
		630	8	-
		800	10	-
		1000	13	-
		1250	16	-
		1600	20	-
	8'' 203,2 mm	630	7	-
		800	9	-
		1000	11	-
		1250	14	-
		1600	18	-
		2000	22	-
	10'' 254 mm	630	5	-
		800	7	-
		1000	9	-
		1250	11	-
		1600	14	-
		2000	17	-
	12'' 304,8 mm	800	6	-
		1000	7	-
		1250	9	-
		1600	11	-
		2000	14	-
		2500	17	-
	14'' 355,6 mm	800	5	-
		1000	6	-
		1250	7	-
		1600	9	-
		2000	12	-
		2500	15	-
	16'' 406,4 mm	1000	5	-
1250		6	-
1600		8	-
2000		10	-
2500		12	-

Ø 3/4''
Ø	L	W 230 V	W/cm²	TC
3/4'' 19,05 mm -0,02 -0,10	3'' 76,2 mm	400	11	-
		500	14	-
		630	18	-
	4'' 101,6 mm	400	8	-
		500	10	-
		630	13	-
	5'' 127 mm	500	7	-
		630	9	-
		800	11	-
		1000	14	-
	6'' 152,4 mm	630	8	-
		800	10	-
		1000	13	-
		1250	16	-
	8'' 203,2 mm	800	7	-
		1000	9	-
		1250	11	-
		1600	15	-
	10'' 254 mm	1000	7	-
		1250	9	-
		1600	11	-
		2000	14	-
	12'' 304,8 mm	1000	6	-
		1250	7	-
		1600	9	-
		2000	12	-
	14'' 355,6 mm	1250	6	-
		1600	8	-
		2000	10	-
		2500	13	-
	16'' 406,4 mm	1250	5	-
		1600	7	-
		2000	9	-
		2500	11	-
	18'' 457,2 mm	1600	6	-
		2000	8	-
		2500	10	-
		3200	12	-
	20'' 508 mm	1600	6	-
		2000	7	-
		2500	9	-
		3200	11	-

Also available special diametres (on request):

Ø 5,9 / 6 / 6,4 / 12 / 14 / 15 / 18 / 25 / 25,4 / 31,8 mm
square: 4,5 x 4,5 / 6 x 6 / 8 x 8 / 6 x 12 / 10 x 10 mm (see chapter Square Cartridge Heaters)

Downloads:

Inquiry Form Cartridge Heaters

Just download, print, fill in and fax it to us. You will receive our quotation shortly. Alternatively, you can use our online inquiry form for Cartrdige Heaters here.

Really hot! Our Product Flyer.

Download our leaflet here.

Standard cartridge heaters (metric)

Standard cartridge heaters (inch)

Downloads:

You may find this interesting as well:

No hit? Here is more of Freek!
