Square Cartridge Heaters for Heating Plates & Hot Surfaces

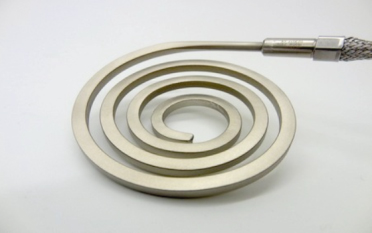

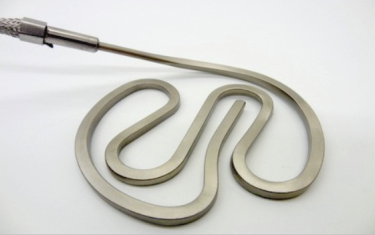

Square Cartridge Heaters are perfectly suited for very thin plates. With a soft, malleable condition in stainless steel or nickel sheath they can be pressed into common milled grooves. In standard construction the max. temperature capability is 750°C. All sizes also available with integrated thermocouple and power distribution.

Our long-term partner DELTA-t-Hochleistungsheizelemente (high-performance heating elements) successfully uses these heaters in a variety of applications.

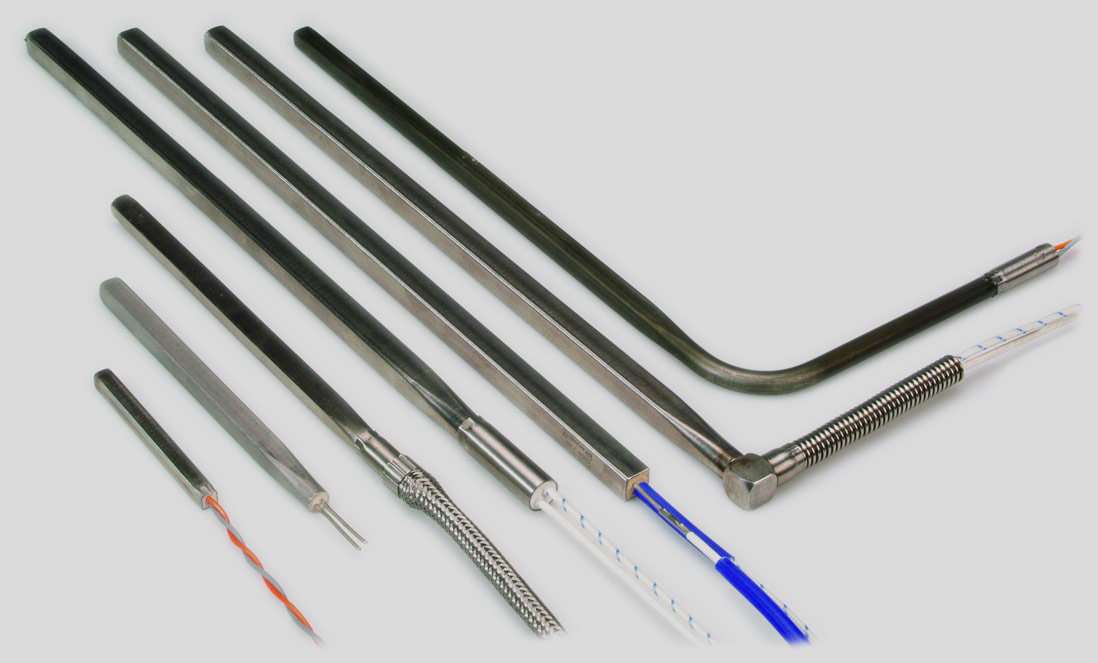

Heating Plates - Square Cartridge Heaters

With terminal head
4,5 x 4,5 mm > Ø 6,5 x 30 mm
6,0 x 6,0 mm > Ø 8,0 x 30 mm
8,0 x 8,0 mm > Ø 9,2 x 30 mm
10 x 10 / 6 x 12 mm > Ø on request

⍁

4,5 x 4,5 ^{± 0,1}

6 x 6 ^{± 0,1}

8 x 8 ^{± 0,1}

10 x 10 ^{± 0,15}

6 x 12 ^{± 0,15}

4,5 ^{± 0,1}

6 ^{± 0,1}

8 ^{± 0,1}

10 ^{± 0,15}

L _max

up to 3 m

P _max

limited by max. surface load of 16 W/cm² and max. current of 16 A

R _min

12 mm

15 mm

20 mm

25 mm

30 mm

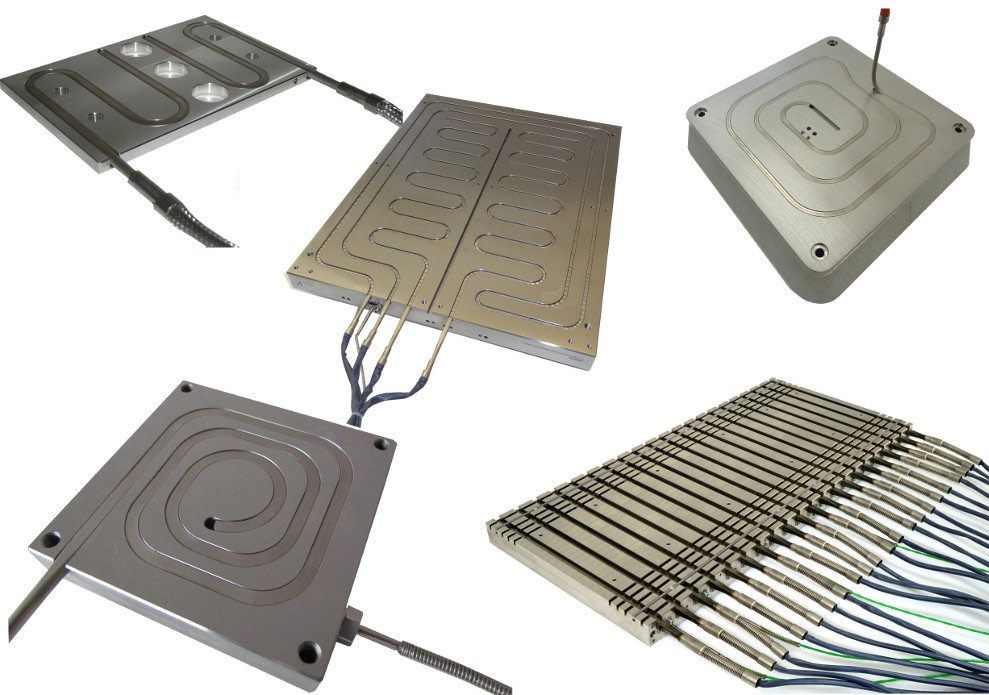

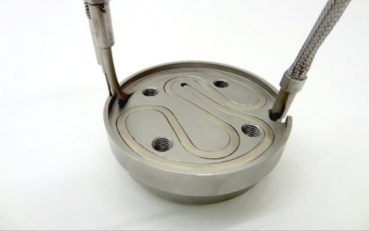

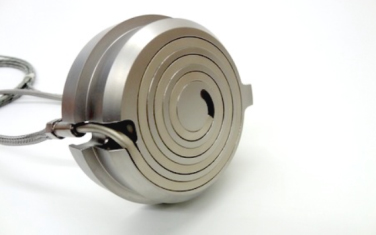

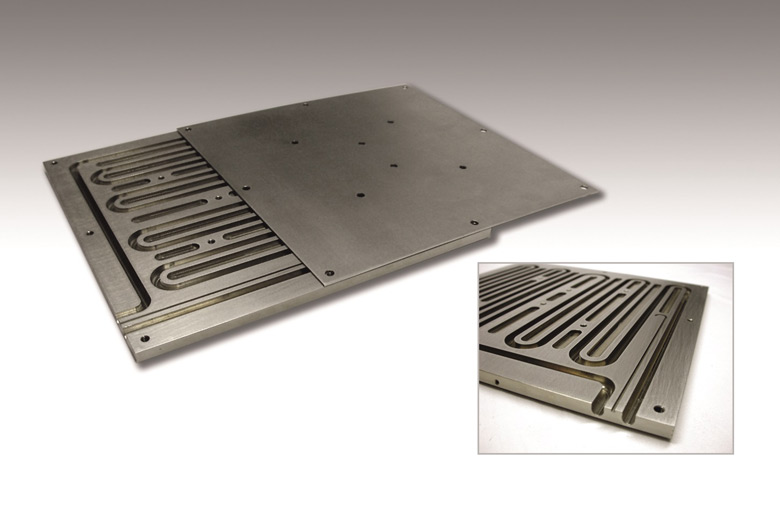

Heating Plates & Hot Surfaces with Square Cartridge Heaters

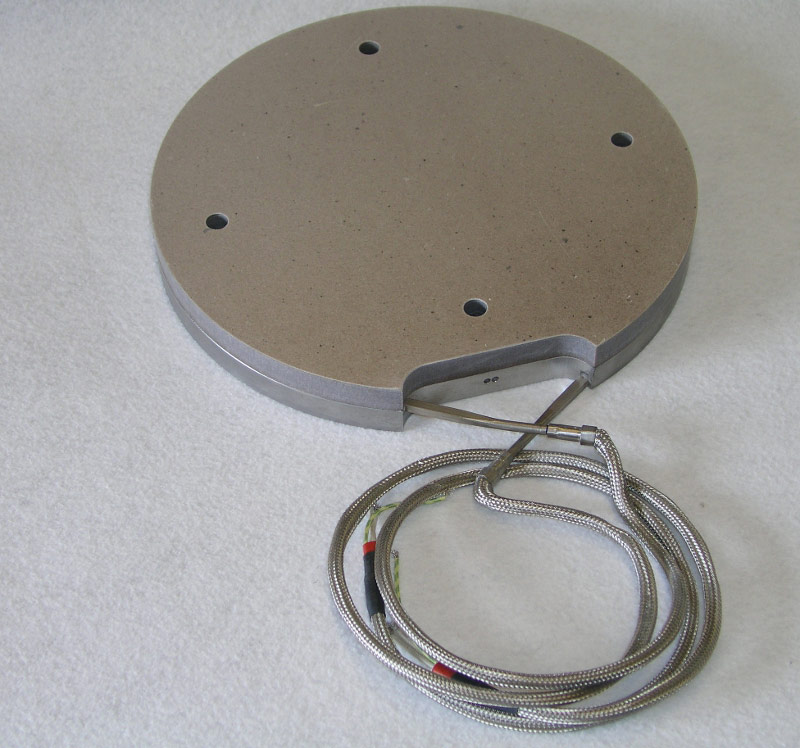

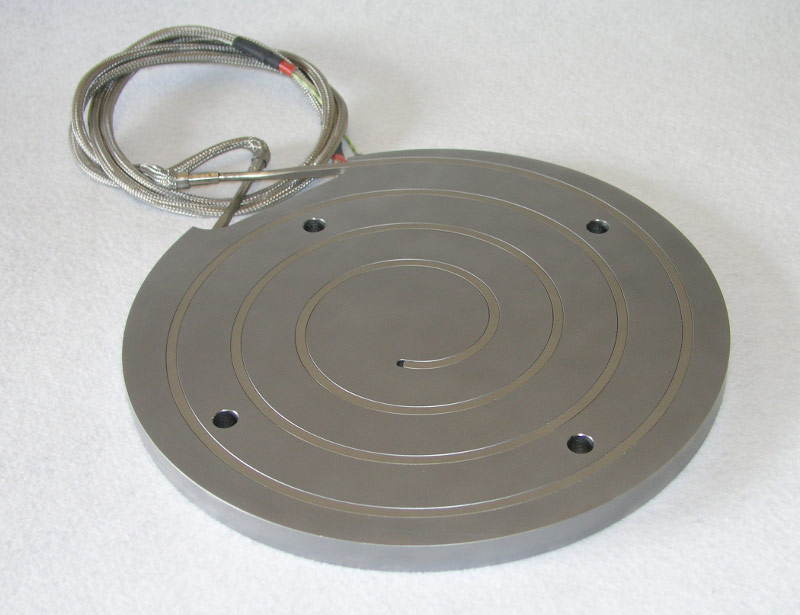

Example "Stamp": D=100 mm out of tempered tool steel up to max. 700°C continuous temperature. Fitted with 2 Square Cartridge Heaters 1500 W/ 230 V, 4,5 x 4,5 mm x 600 mm, with 50 mm unheated at the termination end. Annealed and formable with a nickel sheath, resistant up to 850°C surface temperature. Connection by fibreglass insulated pure nickel high-temperature leads (max. 500°C) with ground conductor and stainless steel braided metal sleeve.

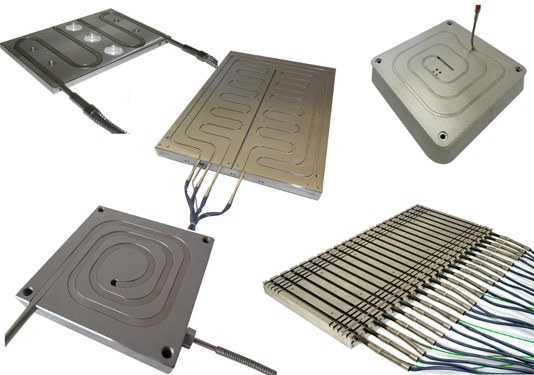

Heizplatten und heiße Oberflächen mit quadratischen Heizpatronen

_{(Image source: with kind permission of the author Delta-t Heizelemente)}

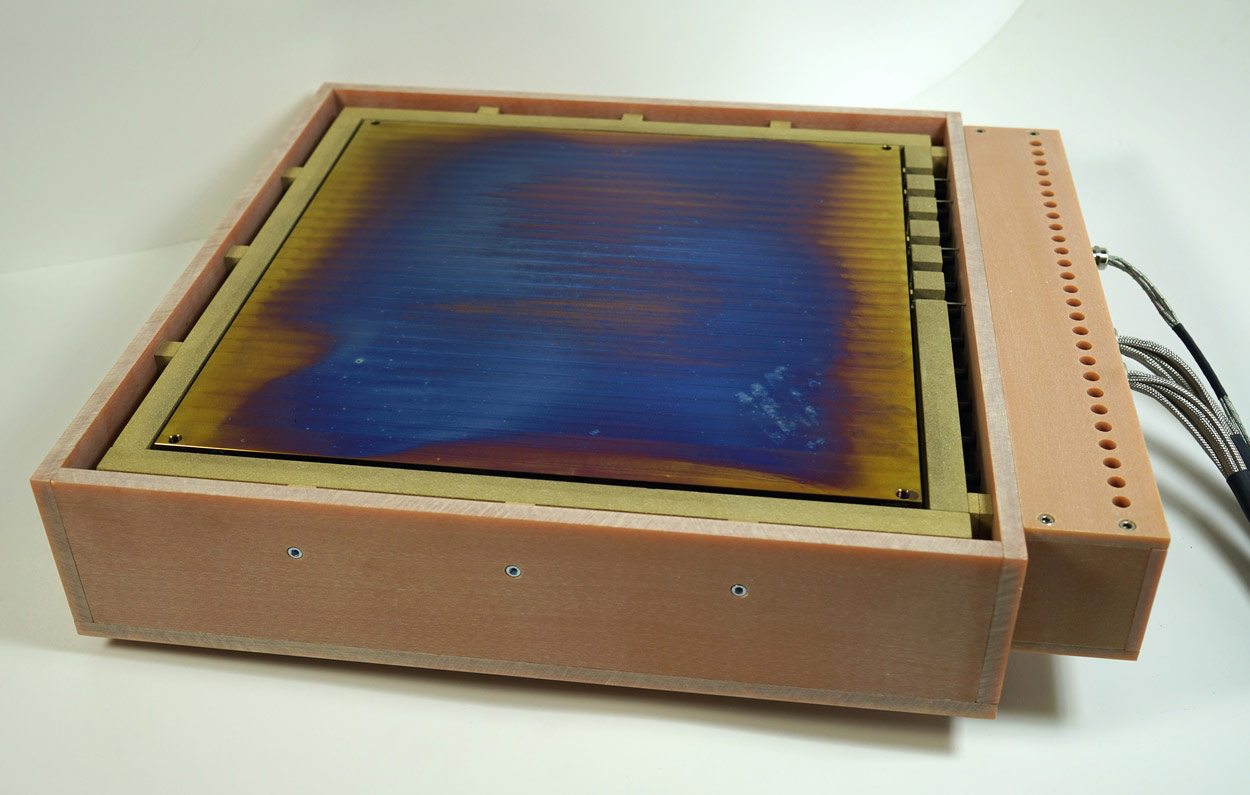

Advantages of Heating Plates with Square Cartridge Heaters

Simple plate manufacture due to rectangular groove geometry, no deep-hole boring
Simple heater installation by bending and pressing along the plate surface
Complex plate geometries with bores and openings
Optimal heat transfer due to 75% surface contact
No casting with heat conductive compound

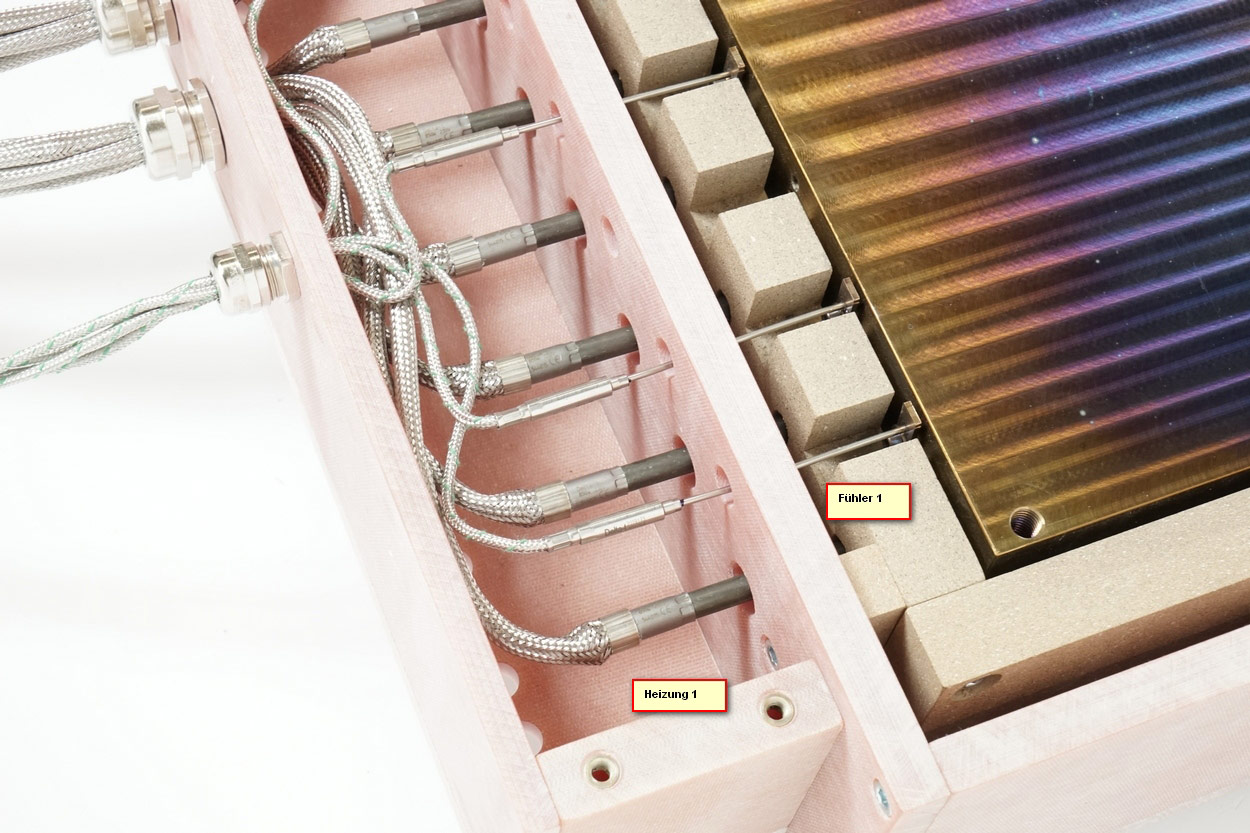

Uniform temperature profiles due to thermally optimized groove layouts/power distribution and utilization of insulation plates
high process temperatures (up to 450°C in aluminium, up to 700°C in stainless steel)
