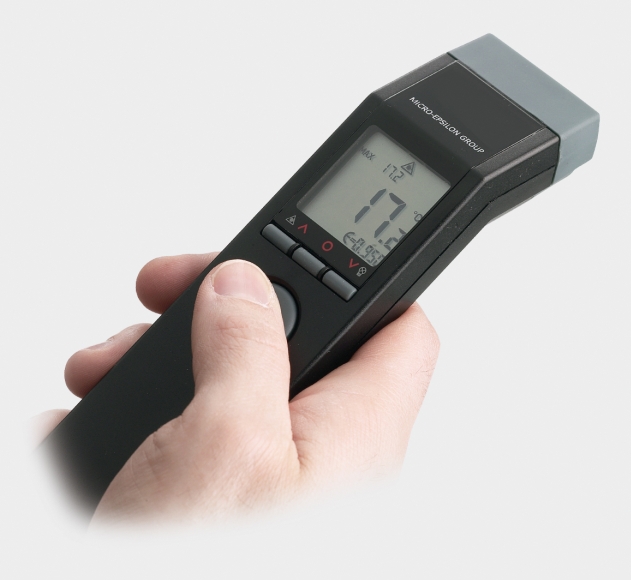

thermoMETER MS

thermoMETER MS General purpose infrared thermometer for standard applications.

  • Measuring range from -32 to 760 °C
  • Special treated precision optics
  • Optical resolution 40:1
  • Laser aiming aid
  • Adjustable visual and acustic alarm
  • USB interface and graphic software with oscilloscope function
  • Quick scanning within 0,3 seconds
  • Extremely light (150g) and user-friendly design
spot size depending to distance
MS / MS Plus (20:1) 13 mm 20 mm 37 mm 50 mm
distance 140 mm 300 mm 700 mm 1000 mm
MS Pro (40:1) 13 mm 15 mm 22 mm 27 mm
distance 260 mm 400 mm 800 mm 1000 mm
Model MS MS Plus MS Pro
1 adjustable via software
2 object temperature > 0 °C; whichever is greater
3 at ambient temperature 23 ± 5 °C
Optical resolution 20:1 40:1
Temperature range 1 -32 °C to 420 °C -32 °C to 530 °C -32 °C to 760 °C
Spectral range 8 to 14 µm
System accuracy 2,3 ±1% bzw. ±1 °C
(from 0 °C to 420 °C)
±1% bzw. ±1 °C
(from 0 °C to 530 °C)
±1% bzw. ±1 °C
(from 0 °C to 760 °C)
Repeatability 2,3 ±0,5% bzw. ±0,7 °C (from 0 °C to 420 °C) ±0,5% bzw. ±0,7 °C (from 0 °C to 530 °C) ±0,75% bzw. ±0,75 °C (from 0 °C to 760 °C)
±0,7 °C ± 0,05 °C/°C (from 0 °C to -32 °C) ±0,75 °C ±0,07 °C/°C (from 0 °C to -32 °C)
Temperature resolution 0,2 °C 0,1 °C
Response time 300 ms (95%)
Ambient temperature 0 °C to 50 °C
Storage temperature -20 °C to 60 °C without battery
Emissivity fixed: 0,95 0,1 - 1,1 (adjustable)
Configurations Min/Max/Hold/°C/°F Min/Max/Hold/°C/°F/Offset
Alarm functions - Visual and acoustic HIGH-/LOW-alarm
PPC interface, Software, Thermocouple Input USB interface USB interface, Software IRConnect software USB interface, Software IRConnect software, thermocouple element type K
Laser < 1mW laser class IIa / laser beam with 9 mm offset
Weight/Dimensions 150 g; 190 x 38 x 45 mm 180 g; 190 x 38 x 45 mm
Battery 9V alkaline battery
Battery life 20h with laser and backlight on 50%
40h with laser and backlight off
Relative humidity 10 - 95% RH non condensing, at < 30 °C ambient temperature
Standard accessories - soft pouch, wrist strap, tripod adapter, rubber protection boot
Optional certificate of calibration
Software IRConnect

Software IRConnect

  • Data logging
  • Display and recording of temperature graphs
  • Modifications of handheld settings

System requirements

  • Windows XP, 2000
  • USB 2.0
  • Hard disc min. 30MB
  • min. 128MB RAM
  • CD-ROM drive
