Heaters for Laundry Dryers (series & spare parts types)Downloads

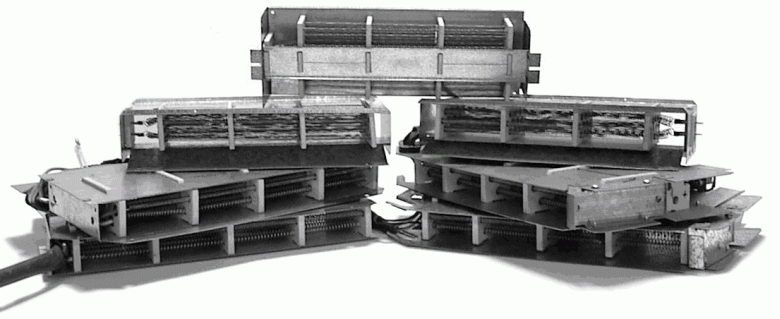

Heaters for Laundry Dryers (series & spare parts types) Heating elements for Laundry Dryers with air guide channel made of galvanised material for laundry dryers with ceramic spiral carrier stones, 2 steps at 230 V up to maximal 3000 W, available with different temperature limiting systems.

Technical Option:

  • additional insulation plates in the metal housing
  • cable receptable systems and housing
  • cable protecting sleeves and seals
  • integral temperature setting
  • mica supported spirals
  • Spirals alo available mica supported or glas fibre cord supported
Table for technical data and tolerances
Technische Daten und Toleranzen
RoHS-compliant, if requested
(No warranty claims can be derived from this table)
Wattage: +5% -10%
Resistance: -5% +10%
Max. working temperature: 400 °C
Dimension tolerance: ± 1 mm
Max. wattage: 3000 W
Max. voltage: 440 V
Max. current: 16 A
Average load on the surface: 3 - 6 W/cm²
Heating Element type fitting to: AEG
Article Art. no. Voltage Wattage
Heating Element type fitting to: AEG 5076.001 230V 1250W + 750W
5076.002 230 -380V 1250W + 750W
Dimensions in mm: 270 x 160 x 40
Heating Element type fitting to: Bauknecht, Philips, Quelle
Article Art. no. Voltage Wattage Art. no. substitutional he
Heating Element type fitting to: Bauknecht, Philips, Quelle 509E.001 230V 1800W + 700W Typ: 50.16/16N
509E.002 230V 1800W + 700W Typ: 50.36/36N
509E.003 230V 1800W + 700W Typ: 50.88/88N
Dimensions in mm: 340 x 215 x 40
Heating Element type fitting to: Schuurink, Quelle, Gorenje, Bosch, Bauknecht, Neckermann, Philips
Article Art. no. Voltage Wattage Art. no. substitutional he
Heating Element type fitting to: Schuurink, Quelle, Gorenje, Bosch, Bauknecht, Neckermann, Philips 5016.002 230V 2700W Typ: 50.14mod
5016.003 230V 2700W Typ: 50.14
5016.006 230V 2700W Typ: 51.66
5016.007 230V 2000W Typ: 50.48
5016.008 230V 2000W Typ: 50.48mod
Dimensions in mm: 255 x 110 x 56


Downloads:

  • Chapter Open Wire Heating Elements
    Chapter Open Wire Heating Elements

    Effective air flow heating, variable designs: The best way to heat airflow, as seen in automatic devices or tumble dryers. We produce adapted heating elements for your fans or, when required, with fan.
