Options for HotMicroCoil Heating ElementsDownloads

Tube

  • Nickel
    • Standard: MicroCoils 1,0 x 1,6 / Ø 1,3 / 1,3 x 2,3 / Ø 1,8 mm
    • Option: HotCoils 2,2 x 4,2 / 3,0 x 3,0 / Ø 3,3 mm
  • Stainless steel
    • Standard: all HotCoils / MicroCoils 1,4 x 2,4 / 1,8 x 3,2 mm
    • Option: MicroCoils 1,0 x 1,6 / Ø 1,3 / 1,3 x 2,3 / Ø 1,8 mm

Leads

  • PTFE (standard, permanent temperature resistance up to 260 °C)
  • fibreglass (permanent temperature resistance up to 300 °C)

Earth lead

  • all HotMicroCoils possible

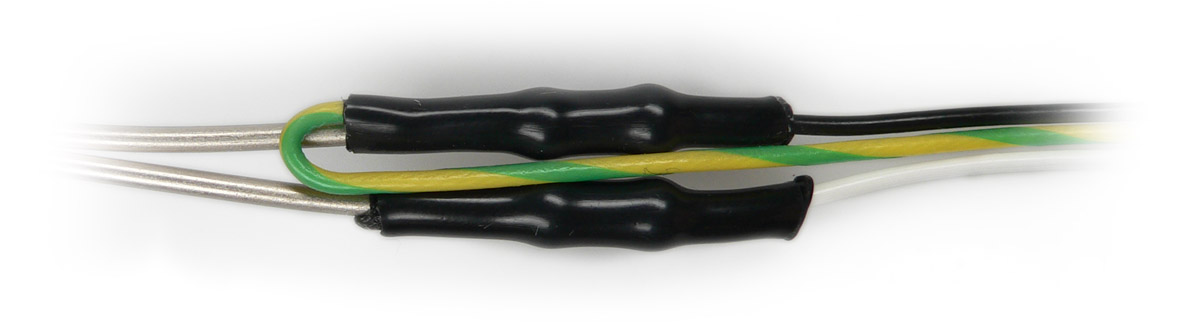

MicroCoil Earth lead MicroCoil brazed

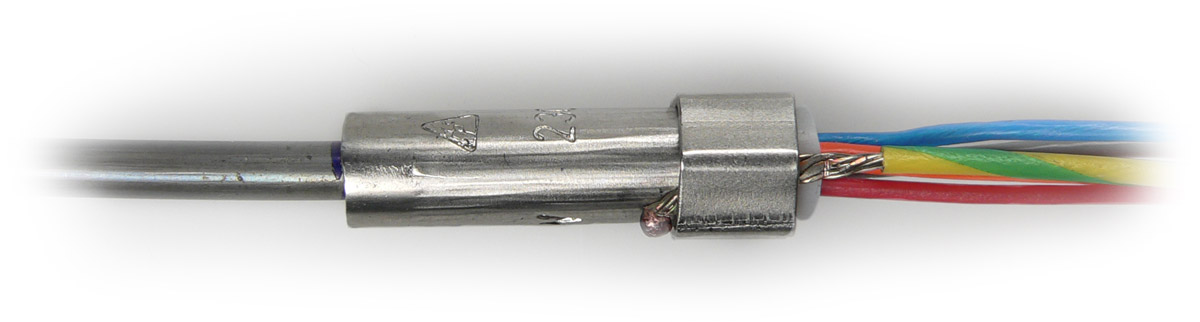

HotCoil Earth lead HotCoil crimped

Protection sleeve*

* for all HotCoils and MicroCoil with 1 terminal head

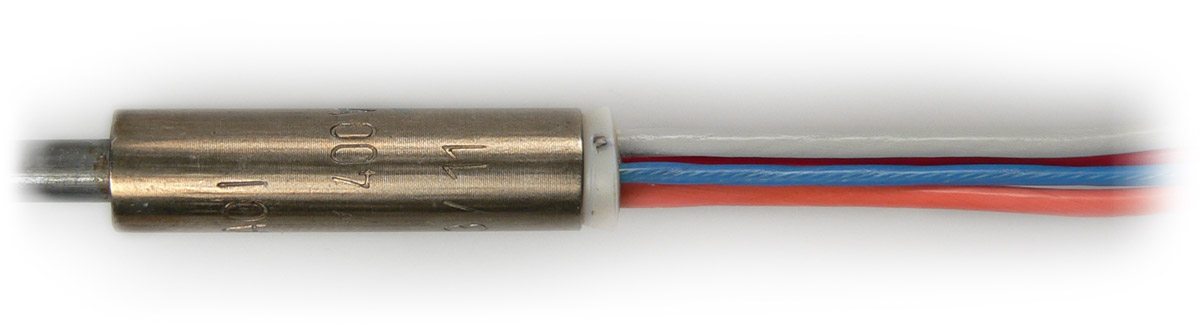

N Type N - without protection sleeve without protection sleeve
NG
Standard

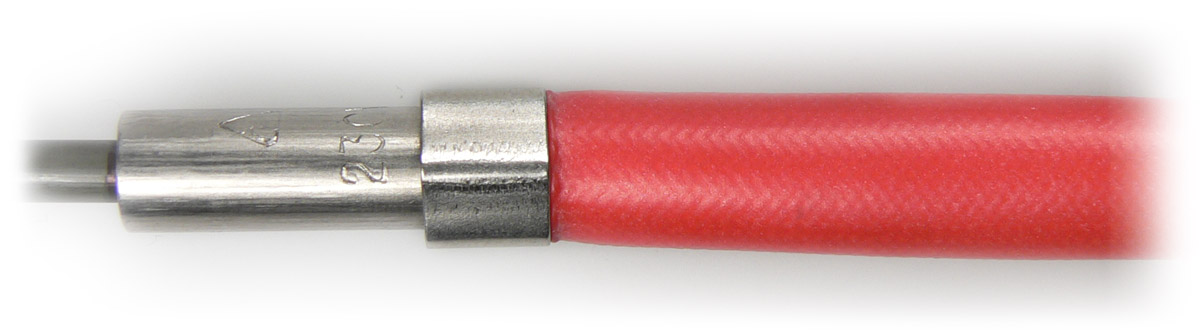

Type NG - Fibreglass sleeve Fibreglass sleeve

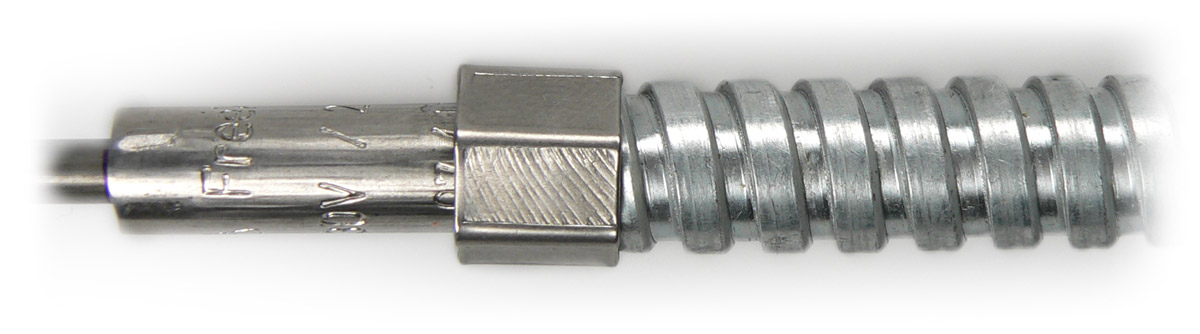

NM Type NM - Metal sleeve Metal sleeve

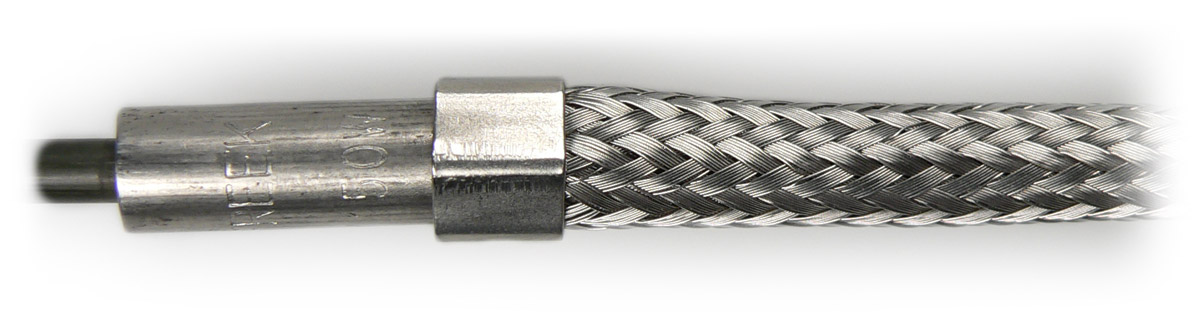

ND Type ND - Braided metal sleeve Braided metal sleeve

Fixing rings

  • ≈ Ø 11 / 9,5 / 7,5 / 6,5 mm for head-Ø 8,0 / 6,5 / 5,5 / 4,5 mm
  • Other sleeves on request

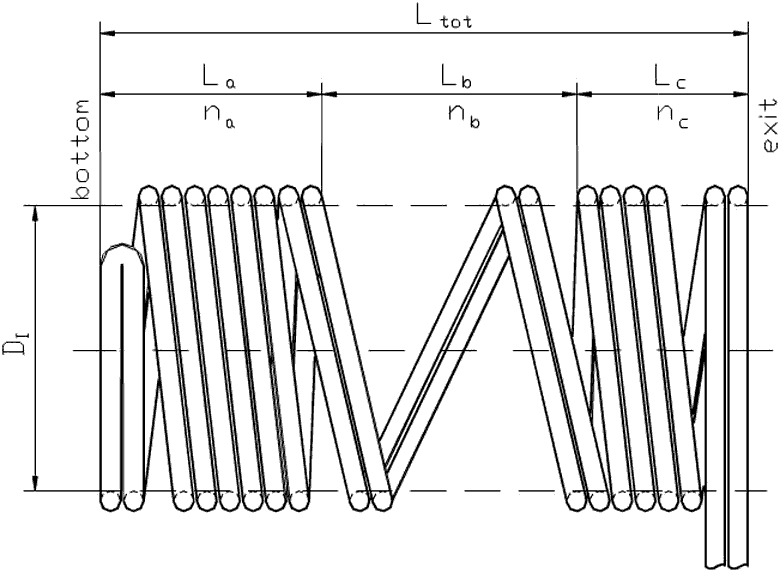

Coiled execution

Coiled execution

Please specify:
DI, Ltot

In case of heat distribution additionally:
La, Lb, Lc + na, nb, nc

(n = number of coils or absolute power or proportional power)

Note!
Power distribution = coil distribution

Tangential
Tangential
Radial
Radial
Axial
Axial

Termination

Standard terminations Head dimensions
Ø x L / ØRing

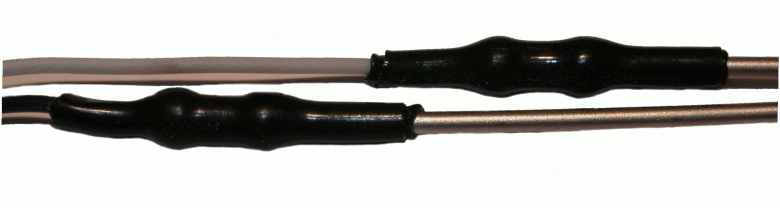

MicroCoil 2 heads
Ø 1,3 / ▅ 1,0 x 1,6
MicroCoil 2 heads Ø 1,3 / ▅ 1,0 x 1,6 max. Ø 5,5 x 30 mm

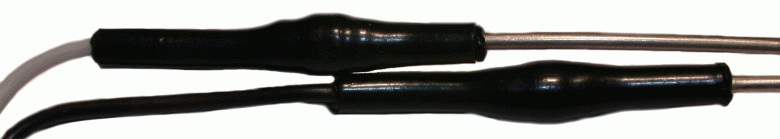

MicroCoil 2 heads
Ø 1,8 / ▅ 1,3 x 2,3
MicroCoil 2 heads Ø 1,8 / ▅ 1,3 x 2,3 max. Ø 5,5 x 30 mm

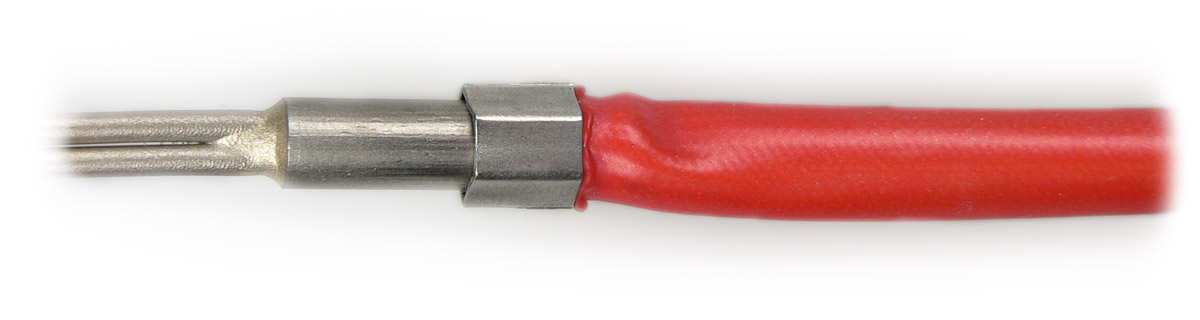

MicroCoil 1 head
Ø 1,3 / ▅ 1,0 x 1,6
Ø 1,8 / ▅ 1,3 x 2,3
MicroCoil 1 head Ø 1,3 / ▅ 1,0 x 1,6 - Ø 1,8 / ▅ 1,3 x 2,3 Ø 5,5 x 20 mm / ØR 7,5 mm

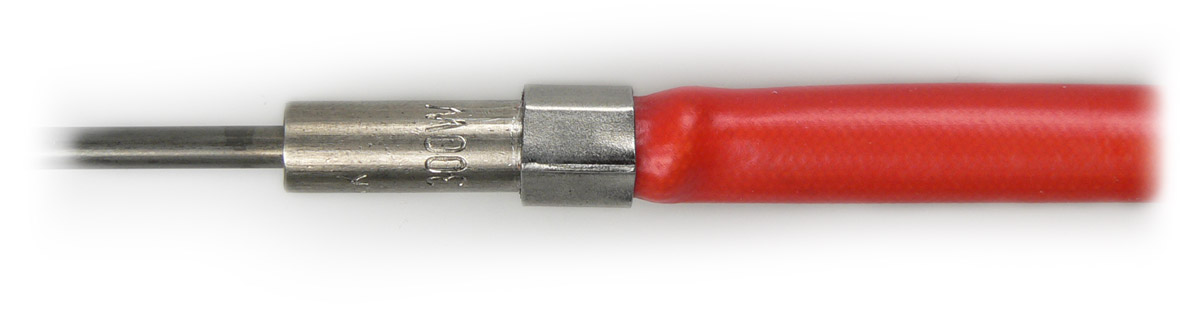

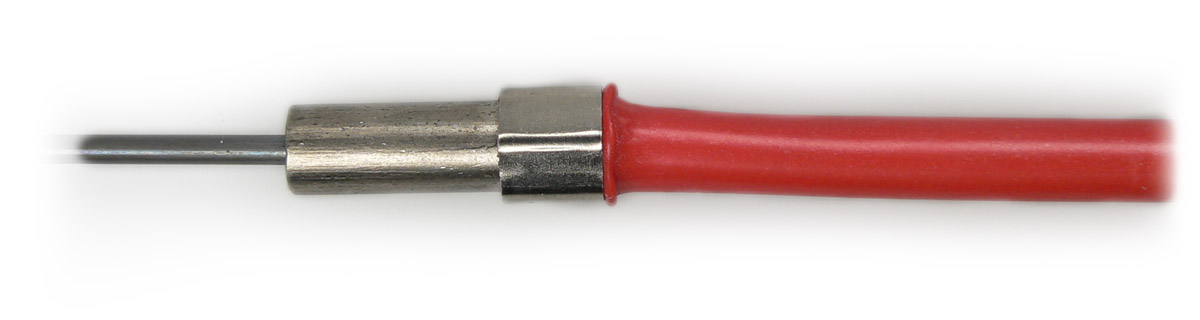

MicroCoil compact
Ø 1,8 / Ø 2,0
▅ 1,3 x 2,3 / 1,4 x 2,4
MicroCoil compact Ø 1,8 / Ø 2,0 - ▅ 1,3 x 2,3 / 1,4 x 2,4 Ø 5,5 x 20 mm / ØR 7,5 mm
(on request Ø 4,5 x 15 mm / ØR 6,5 mm)

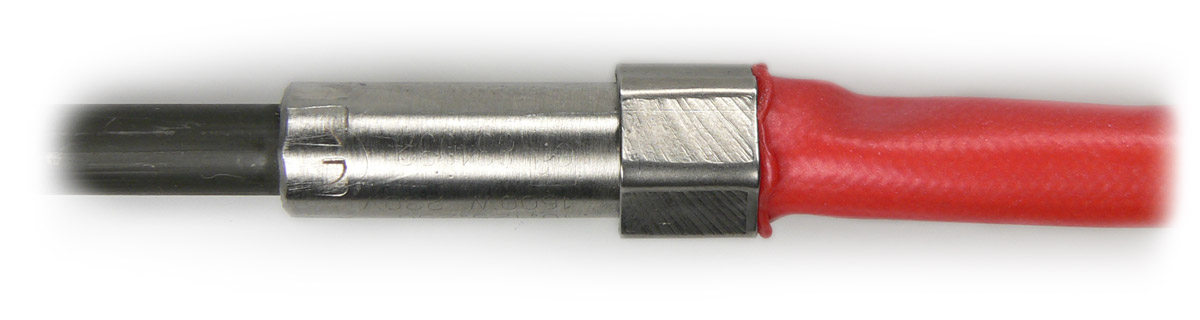

HotCoil
▅ 1,8 x 3,2
HotCoil ▅ 1,8 x 3,2 Ø 5,5 x 20 mm / ØR 7,5 mm

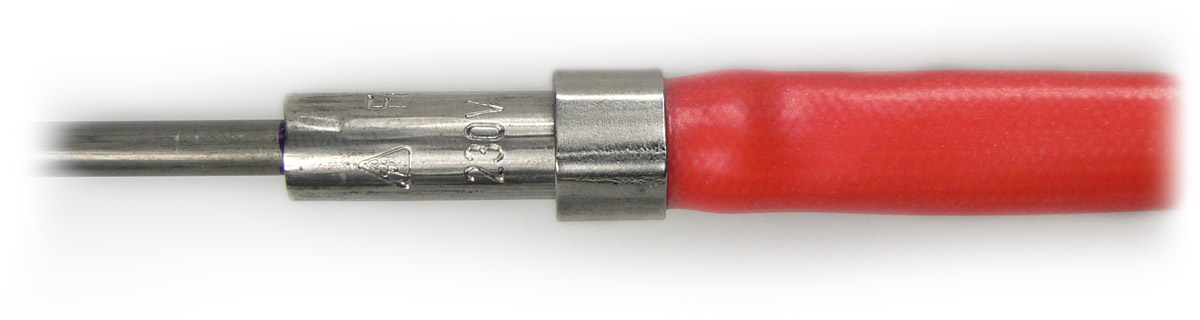

HotCoil
Ø 3,0 / 3,3 / 4,0
▅ 2,2 x 4,2 / 2,5 x 4,0
▇ 3,0 x 3,0 / 3,2 x 3,2
Ø 3,0 / 3,3 / 4,0 - ▅ 2,2 x 4,2 / 2,5 x 4,0 - ▇ 3,0 x 3,0 / 3,2 x 3,2 Ø 6,5 x 25 mm / ØR 9,5 mm
(on request Ø 5,5 x 20 mm / ØR 7,5 mm)
HotCoil
▅ 3,0 x 4,8*1
▅ 4,0 x 6,0*2
HotCoil ▅ 3,0 x 4,8 / 4,0 x 6,0 *1 Ø 7,5 x 28 mm / ØR 9,5 mm
*2 Ø 8 x 30 mm / ØR 11 mm

Xtreme options

Other terminations on customer request
Xtreme 450 Termination heat resistant up to 450 °C Termination heat resistant up to 450 °C
Xtreme 450 S Xtreme 450 with sleeve Xtreme 450 with sleeve
Xtreme H2O watertight watertight
Xtreme Voltage MircoCoil up to 1250 V AC, HotCoil up to 1500 V AC MircoCoil up to 1250 V AC, HotCoil up to 1500 V AC
Xtreme Safe HotCoil with limp home function HotCoil with limp home function
MultiPower HotCoil with independently controllable heating zones HotCoil with independently controllable heating zones
