HotCoils − Coil Heaters

HotCoils have a larger cross-sectional area and are thus capable of greater power than MicroCoils. For this reason they are used in hot runners with adequate space and where high heat densities are required. Owing to the large number of variants and for cost reasons, the sheath material for HotCoils is stainless steel - the standard for the market and thus also for Freek. HotCoils are large enough that thermocouples can be integrated into them. Our standard here is Type J (Fe-CuNi; red/blue), while Types J and K are also available conforming to the IEC and ANSI standards (see colour codes). Since the measurement point of a built-in temperature sensor is situated in the heater and never where the heat is actually required, a HotCoil with a thermocouple makes particular sense where the application allows the use of larger processing (temperature) windows or where the installation location or the design requires protection against overheating. The standard connection for our HotCoil heating elements is a 1000 mm PTFE-insulated lead wire with fibreglass sleeve and protective earth conductor.

HotCoil Variants

Dimensions
min. inside diameter	6 mm	8 mm	8 mm	12 mm	18 mm	24 mm
▅	-	1,8 x 3,2 mm	2,2 x 4,2 mm	2,5 x 4,0 mm	3,0 x 5,0 mm	4,0 x 6,0 mm
■	-	-	3,0 x 3,0 mm	3,2 x 3,2 mm	-	-
	3,0 mm	-	3,3 mm	4,0 mm	-	-

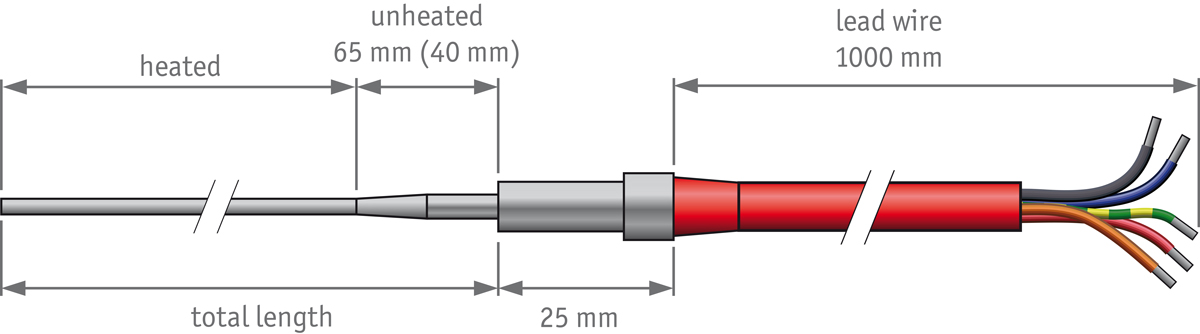

Standard sizes
P at 230 V	Total length straight (incl. cold length)
	1,8 x 3,2 mm	2,2 x 4,2 mm (from stock)	3,0 x 3,0 mm Ø 3,3 mm	Ø 3,0 mm	2,5 x 4,0 mm (on request)	3,2 x 3,2 mm Ø 4,0 mm (on request)	3,0 x 5,0 mm (on request)	4,0 x 6,0 mm (on request)
	cold length: 40 mm	cold length: 65 mm			cold length: 40 mm
Other types on request
150 W	200 mm	265 mm	265 mm	-	-	-	-	-
175 W	250 mm	-	-	365 mm	-	250 mm	-	-
200 W	300 mm	315 mm	315 mm	-	250 mm	300 mm	-	-
225 W	350 mm	345 mm	345 mm	-	300 mm	350 mm	-	-
250 W	400 mm	400 mm	400 mm	515 mm	350 mm	400 mm	-	-
290 W	450 mm	450 mm	450 mm	-	400 mm	450 mm	-	-
330 W	500 mm	-	-	615 mm	450 mm	500 mm	-	-
350 W	-	525 mm	525 mm	-	-	-	-	-
400 W	600 mm	585 mm	585 mm	765 mm	500 mm	600 mm	-	-
470 W	700 mm	665 mm	665 mm	-	600 mm	700 mm	-	-
550 W	800 mm	-	-	-	700 mm	800 mm	600 mm	-
620 W	900 mm	825 mm	825 mm	-	800 mm	900 mm	-	-
650 W	-	-	-	-	-	-	700 mm	-
690 W	-	965 mm	965 mm	-	-	-	-	-
700 W	1000 mm	-	-	-	900 mm	1000 mm	-	-
750 W	-	-	-	-	-	-	800 mm	-
800 W	-	-	-	-	1000 mm	-	-	800 mm
850 W	-	1165 mm	1165 mm	-	-	1200 mm	900 mm	-
950 W	-	1265 mm	1265 mm	-	1200 mm	1400 mm	1000 mm	-
1000 W	-	-	-	-	-	-	-	1000 mm
1100 W	-	1465 mm	1465 mm	-	1400 mm	1600 mm	1200 mm	-
1200 W	-	1615 mm	1615 mm	-	1600 mm	1800 mm	-	1250 mm
1250 W	-	-	-	-	-	-	1400 mm	-
1400 W	-	1815 mm	1815 mm	-	-	-	1600 mm	1500 mm
1550 W	-	-	-	-	-	-	1800 mm	-
1600 W	-	2015 mm	2015 mm	-	-	-	-	1750 mm
1700 W	-	-	-	-	-	-	2000 mm	-
1800 W	-	-	-	-	-	-	-	2000 mm
1850 W	-	-	-	-	-	-	2200 mm	-
2000 W	-	-	-	-	-	-	2400 mm	2250 mm
2200 W	-	-	-	-	-	-	-	2500 mm

Attention: Elements which have been bent once, must not be altered anymore. The connection area as well as the first 5 mm unheated area must not be deformed at all.

Stock / standard types selection table for HotCoils

coiled HotCoils 2,2 x 4,2 mm / 3,0 x 3,0 mm / Ø 3,3 mm ¹
Standard: unheated length 65 mm, 230 V

stock types 2,2 x 4,2 mm
Wattage (W)	200	225	250	290	350	400	470	620	690	850	950	1100	1200	1400	1600
total length (mm)	315	345	400	450	525	585	665	825	965	1165	1265	1465	1615	1815	2015
heated length (mm)	250	280	335	385	460	520	600	760	900	1100	1200	1400	1550	1750	1950

coiled length
		20 mm	40 mm	60 mm	80 mm	100 mm	120 mm	140 mm	160 mm	180 mm	200 mm	220 mm	240 mm	260 mm	280 mm	300 mm
¹ For all other HotCoil / MicroCoil dimensions we determine length and wattage individually.
I N S I D E - Ø	10 mm		200	250	350	350	400	470	470	620	620						W A T T A G E (W)
	12 mm		225	290	400	400	470	470	620	620	620
	12,5 mm 1/2''		225	350	400	400	470	470	620	690	690
	14 mm		250	350	470	470	470	620	690	690	690
	15 mm		250	400	470	470	620	620	690	690	690
	16 mm 5/8''		250	400	470	470	620	690	690	850	850
	18 mm		290	470	620	620	620	690	850	850	850	850	950	950	950	950
	19 mm 3/4''		290	470	620	620	690	690	850	850	850	850	950	950	950	950
	20 mm		290	470	620	620	690	850	850	950	950	950	950	950	950	1100
	22 mm 7/8''	200	350	620	690	690	690	850	950	950	950	950	1100	1100	1100	1100
	24 mm	200	350	620	690	690	850	950	1100	1100	1100	1100	1100	1100	1100	1200
	25 mm 1''	225	400	620	690	690	850	950	1100	1100	1100	1100	1100	1100	1200	1200
	28 mm	225	400	690	850	850	950	1100	1200	1200	1200	1200	1400	1400	1400	1400
	30 mm	250	470	690	950	950	950	1100	1200	1400	1400	1400	1400	1400
	32 mm 1 1/4''	250	470	690	950	1100	1100	1200	1400	1400	1400	1400
	35 mm	290	620	850	1100	1100	1200	1400	1400	1600	1600
	38 mm 1 1/2''	290	620	950	1100	1100	1200	1400
	40 mm	290	620	950	1200	1200	1400	1600
	42 mm	350	620	950	1200	1200	1400
	45 mm	350	690	1100	1400	1200	1600
	48 mm	400	690	1100	1400	1400
	50 mm 2''	400	690	1200	1600	1600

HotCoil Variants

MultiPower HotCoils

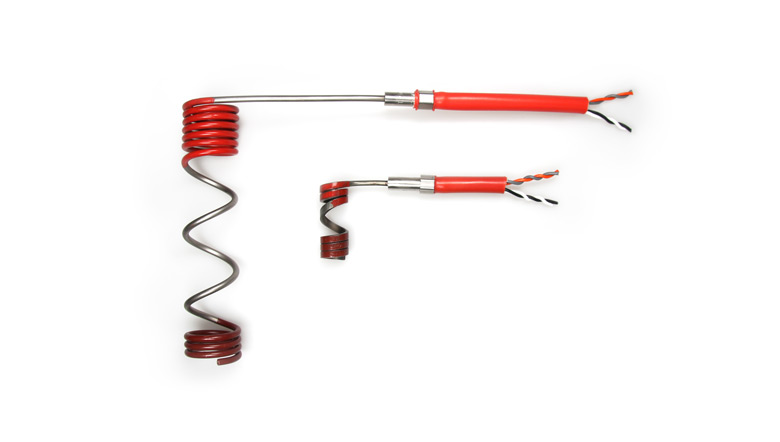

Despite their comparatively large cross-sectional areas, HotCoils can also be successfully used in miniaturisation. They offer ample space for a heating coil wound out and back plus an integrated thermocouple. As a special design, meanwhile, we also offer HotCoils with two separate heating zones, that is, two separate heating coils. These can be controlled independently of one another (MultiPower option) or connected in parallel (fail-safe option).

HotCoil Cartridge

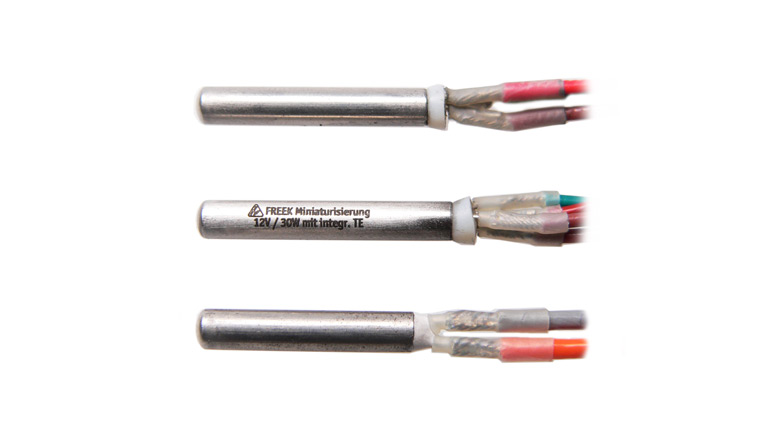

For many precision applications, even the smallest conventional cartridge heater dimensions are still too big. Particularly where temperature-regulated process control must take place at the same time, yet due to lack of space can only be achieved via the heater, low-voltage HotCoil-based heating cartridges are a trusted alternative. Here Freek has built up an extensive body of practical knowledge through successfully resolving a large number of special applications.

also have a look at our flyer "Xtreme small"

Downloads:

Inquiry Form HotMicroCoil Heating Elements

Just download, print, fill in and fax it to us. You will receive our quotation shortly. Alternatively, you can use our online inquiry form for HotMicroCoil Heating Elements here.
Flyer - Heating Elements for Hot Runner Nozzles

HotMicroCoil-Heating Elements from Freek.

Flyer Hotcoil Xtreme Power

Flyer Xtreme small

Our "Xtreme small" heating elements set standards in the field of micro injection moulding and micro applications for electric process heat in general.

Really hot! Our Product Flyer.

Download our leaflet here.
