UGL Heating Band - Stainless Steel ExecutionDownloads

UGL heaters are plastic tight mica heating bands. Their stainless steel casing is corrosion-resistant to most plastics (PVC and other) and allows a surface load up to 5 W/cm². In all dimensions thermocouples could be installed by request. The standard has got a 45 ° axial exit with 1000 mm glass-fiber insulated leads and a braided metal sleeve.

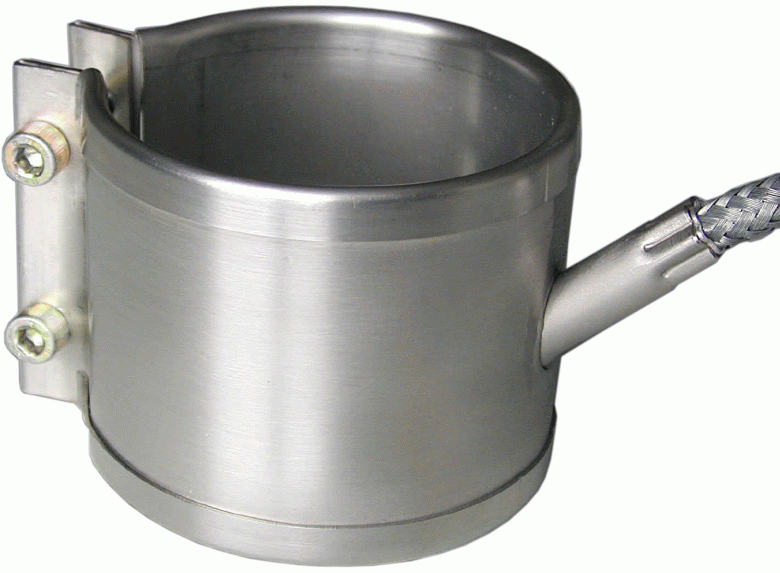

UGL Heating Band - Stainless Steel Execution
UGL Heating Band - Stainless Steel Execution
Standard types 230 V
Diameter Length L in mm
25 30 35 40 45 50 60
25   120 W
30 120 W 140 W 165 W 185 W
35 135 W 165 W 190 W 220 W 235 W
40 155 W 190 W 220 W 250 W 280 W
42 165 W 200 W 230 W 265 W
45 175 W 210 W 250 W 280 W 320 W 350 W
50 195 W 235 W 275 W 315 W   390 W
55 215 W 260 W 300 W 345 W   430 W
60 235 W 280 W 330 W 375 W   470 W 565 W
65 255 W 305 W 355 W 405 W   510 W 610 W
70 270 W 330 W 385 W 440 W   550 W 660 W
75 295 W 335 W 410 W 470 W   590 W 705 W
80 310 W 375 W 440 W 500 W   630 W 750 W
85 330 W 400 W 465 W 530 W   665 W 800 W
90 350 W 420 W 490 W 565 W   705 W 845 W
95 370 W 445 W 520 W 595 W   745 W 895 W
100 390 W 470 W 550 W 630 W   785 W 940 W

Technical data:

  • Sealed stainless steel AISI 304 shield
  • Specific power 5 W/cm²
  • Working temperature max. 350 °C
  • device for thermocouple installation
  • connecting executions
  • Standard: axial 45 °
(No warranty claims can be derived from this table)

Downloads:

  • Chapter Heating Bands
    Chapter Heating Bands

    High power, big flexibility: Heating of tubes and cylinders. We have the right type to meet your requirements with different models and materials suitable for your application.
