MICAPLAST Heating BandDownloads

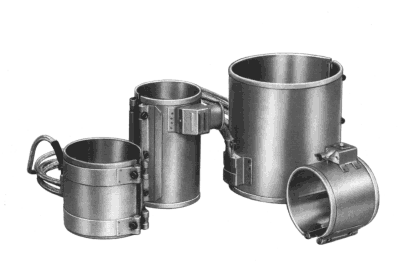

MICAPLAST Heating Band MICAPLAST band heater are applicable for almost every production process. By using flexible raw materials there are no limits to form or dimension. The connection could be made by leads from internal or a connection box at the element.

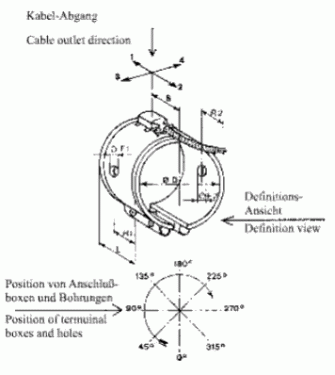

MICAPLAST Heating Band When ordering MICAPLAST, please quote the following data:

  • Diameter D
  • Length L
  • Feeding voltage
  • Power
  • Cable outlet direction (1-2-3-4)
  • Cable length in mm

Details for holes:

  • Position in degree, distances in R
  • diameter F

Technical data:

  • Casing stainless steel AISI 304 shield
  • Specific power 3,5 W/cm²
  • Working temperature < 280 °C
  • Diameter more than 70 mm
  • Diameter more than 500 mm in two or more sections
(No warranty claims can be derived from this table)


  • Chapter Heating Bands
    Chapter Heating Bands

    High power, big flexibility: Heating of tubes and cylinders. We have the right type to meet your requirements with different models and materials suitable for your application.
