Silicone Heater Mats

Silicone heaters are resistant to permanent temperatures up to 200 °C, with self-adhesive foil 180 °C should not be exceeded. Higher temperatures up to 230 °C are possible for a short time without destroying the heater. The temperature that will be reached on the silicone heater surface, generally is not easy to predict, as there are so many influencing factors determined by the application. In addition to the power, resp. surface load, this also includes mass and type of the material to be heated (thermal conductivity, surface quality, etc.) installation / assembly situation (bonded, vulcanised, clamped, etc.), ambient temperature, air movement and, of course, the control technology used.

Silicone heating mat with limiter

As an aid to orientation you will find here a table showing the temperature that can occur at a silicone heater depending on the watt density in an unregulated state.

Surface Temperatures of Silicone Mat Heaters

Test conditions:

download pdf
  • Silicone heater mat, vulcanised to a 1,5 mm aluminium plate
  • Ambient temperature 20 °C
  • Still air
  • Heating element in a horizontal position
  • Measured in a steady state condition
Watt density of heating element [W/cm²] Surface temperature on mat [°C]
0,05 40
0,075 60
0,1 70
0,125 80
0,15 90
0,2 105
0,25 121
0,3 135
0,35 150
0,4 164
0,45 176
0,5 188
0,55 200
0,6 210
0,65 220
0,7 230
0,75 238
0,8 247
0,85 253
0,9 259
0,95 265
1,0 270
1,1 280
1,2 290
1,3 300
1,4 310
1,5 320
1,6 330
1,7 340
1,8 350
1,9 360
2,0 370

As a rule of thumb: the lower the surface load, the longer the life of the silicone mat heater. In order to avoid overheating, we recommend not to exceed a watt density of 0.8 W/cm2. Some of our customers have applications in which silicone rubber heaters with 2 W/cm2 or more are used without any issues. This is mainly dependant on the thermal conductivity of the material being heated, the higher the thermal conductivity the higher the power density can be so the applications in which this is possible, can only be found out by testing. Because of the large number of temperature influencing variables that cannot be influenced by us, we do not offer warranty for overheated silicone heating elements with a surface load of more than 1.3 W/cm2.

Application examples for silicone heating mats include: canteen kitchen technology / catering, anti-fog and anti-freeze applications, tool or plate heating, blister packaging machines, hot presses, 3D printers, granulate dryers, laboratory and medical equipment, repair of composite materials and much more.

When designing silicone rubber heaters, the designer has almost unlimited degrees of freedom. This applies to the minimum and maximum dimensions within wide limits, as well as for shapes and cut-outs or holes and bushings of any kind. The excellent shape flexibility of silicone heaters enables heating of cylindrical, conical or rounded surfaces. It is also possible to preform the flexible silicone heater during production for diameters as small as 12 mm. This is practiced, for example, for pipe line heating or bodies with shape transitions or small deflection radii. The ability to pre-form the heater will also depend on the length of the tubular part. The following applies here: the longer the more rigid, the more effective the preforming is. Spiral silicone rubber heaters are also available for flexible pipes and hoses down to 6mm diameter.

Different silicone materials are used, depending on whether the flexible silicone heater is frequently moved in the application, must be particularly thin or must meet fire behaviour regulations. Normally, you describe your requirements and the application to us and we will then select the appropriate material.

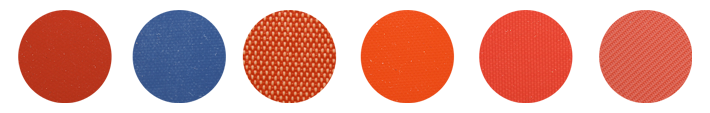

Silicone heating mats - materials

10 Advantages of our silicone heating mats

  • Low weight
  • Easy installation
  • Moisture proof
  • Easy cleaning
  • Minimum space requirement
  • Integrated temperature sensors
  • Integrated temperature switches / fuses
  • From single pieces to large series
  • Every shape possible
  • Short heat up times

Technical data for Silicone Heaters vs. Kapton Polyimide Heaters and Polyester Heaters

  Flexible Heaters
(up to 200°C)
Flat Heating Elements
(over 200°C)
  Silicone Kapton Polyester Micanite Phlogopit
  Wire Wound Etched Foil
* higher surface loads can be achieved, depending on the application, with very good heat consumption and fast control
(No warranty claims can be derived from this table)
Continuous temperature resistance -60 °C - 200 °C -60 °C - 200 °C -269 °C - 200 °C -30 °C - 90 °C 350 °C 450 °C
Continuous temperature resistance with self adhesive foil -60 °C - 180 °C -60 °C - 180 °C -60 °C - 180 °C -30 °C - 90 °C - -
Short term temperature resistance 250 °C 200 °C 200 °C 100 °C 700 °C 900 °C
Recommended max. watt density* 0,8 W/cm² 0,8 W/cm² 0,8 W/cm² 0,2 W/cm² 4,0 W/cm² 5,0 W/cm²
Power tolerance +5 / -10% +5 / -10% +5 / -10% +/-10% +5 / -10% +5 / -10%
max. dimension 940 x 3000 mm 595 x 2500 mm 285 x 550 mm 1000 x 600 mm 2000 x 1000 mm 2000 x 1000 mm
min. dimension 30 x 30 mm 20 x 20 mm 25 x 25 mm 25 x 25 mm 30 x 30 mm 30 x 30 mm
min. height 1,1 - 3,0 mm 0,8 - 1,5 mm 0,2 mm 0,2 mm 2,0 mm
(metal p.:
4,0 mm)
2,0 mm
(metal p.:
4,0 mm)
Dimension tolerance +/- 1 mm +/- 1 mm +/- 1 mm +/- 1 mm +/- 1 mm +/- 1 mm
Quantities from 1 piece from 1 piece from 1 piece from 25 pieces from 1 piece from 1 piece
min. bend radius 5 mm 5 mm 2 mm 5 mm - -
max. IP-protection IP65 IP65 IP64 IP64 - -

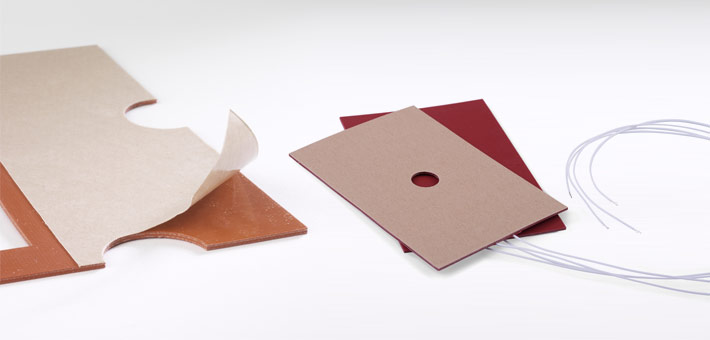

Adhesive foil possible yes yes yes yes no no
UL possible yes yes no yes no no

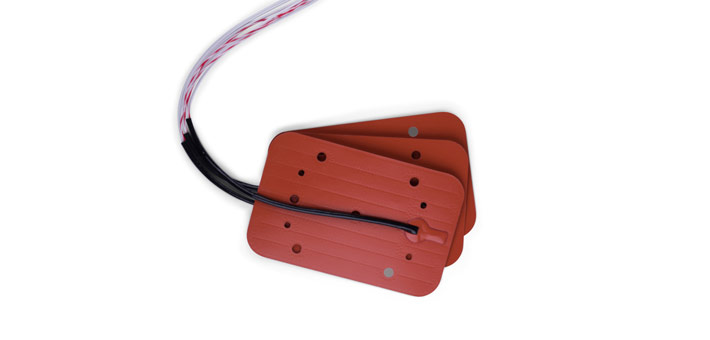

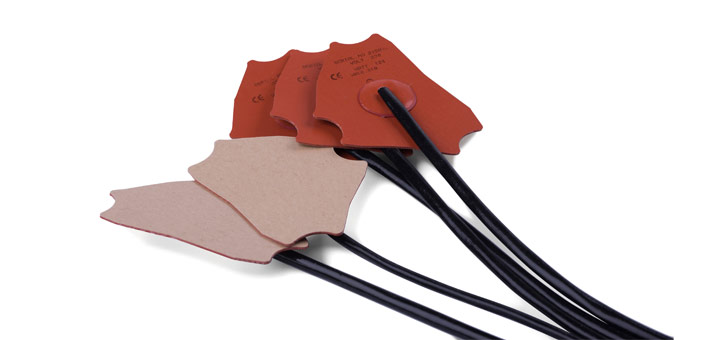

Geometry of silicone heating mats

  • Shapes / cut-outs / holes Can be provided according to your wishes
  • If necessary, a cutting tool must be created (e.g. for a particularly large number of holes or narrow position tolerances)
  • Between two holes and to the edge we need at least 10 mm insulation distance, otherwise the area remains unheated

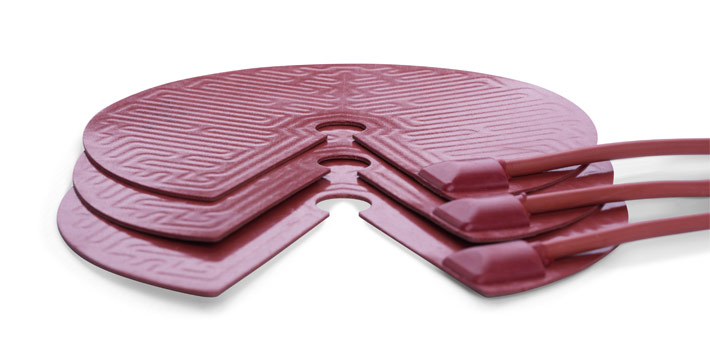

silicone heaters in different dimensions and shapes

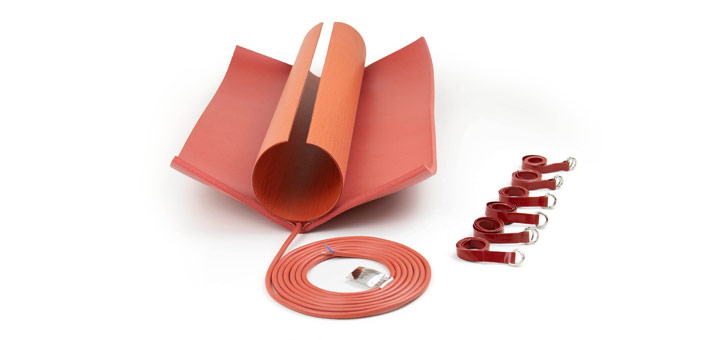

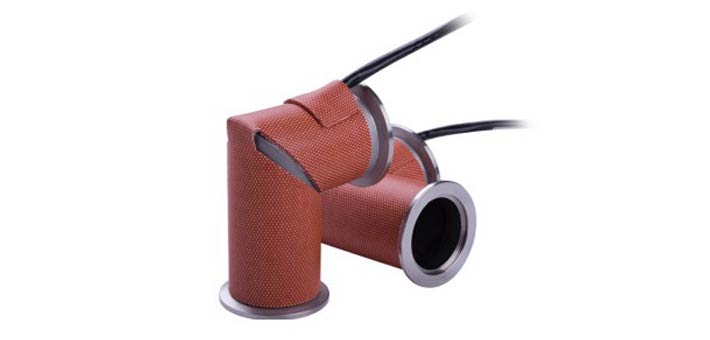

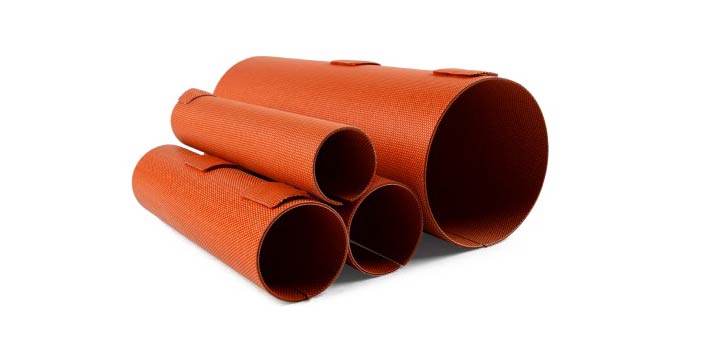

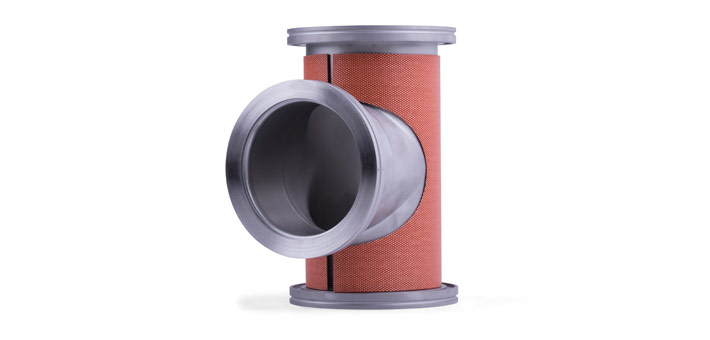

Preformed silicone heaters

  • useful for Ø as small as 12 mm and up to Ø 100 mm
  • not possible with self-adhesive foil

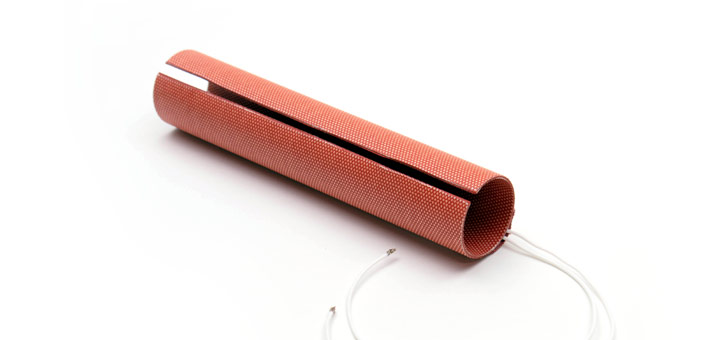

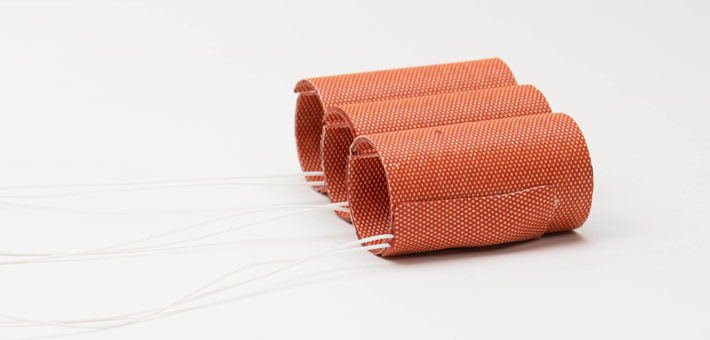

Preformed silicone heater with PTFE-leads

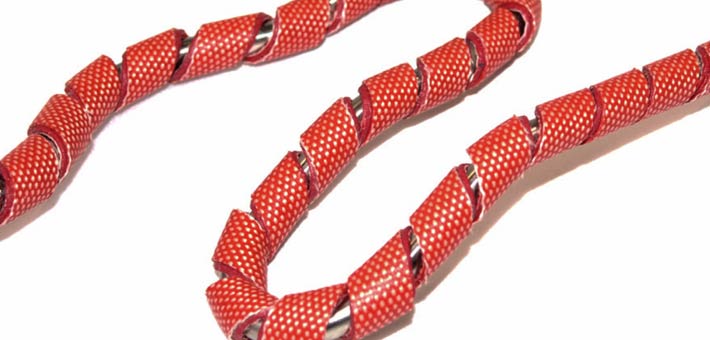

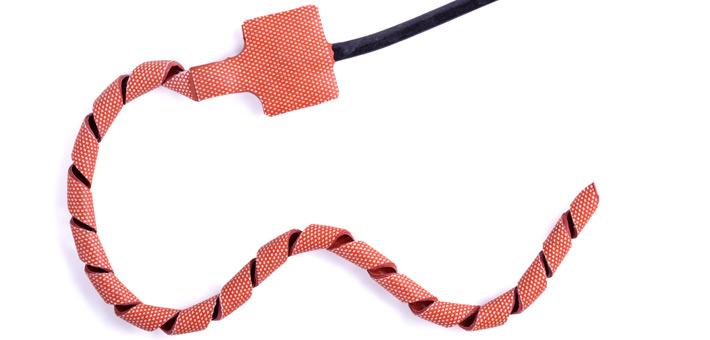

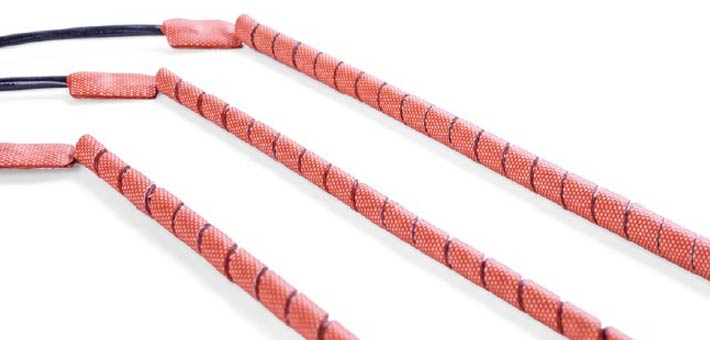

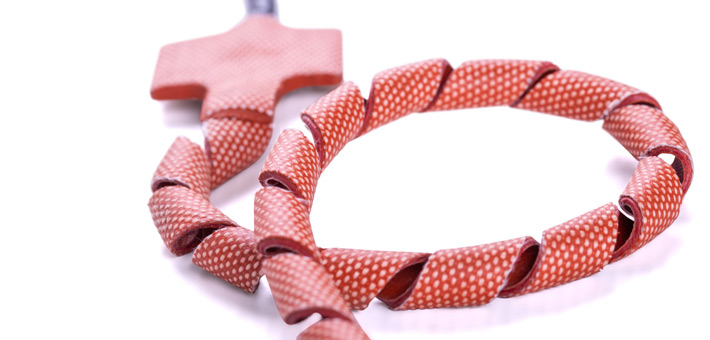

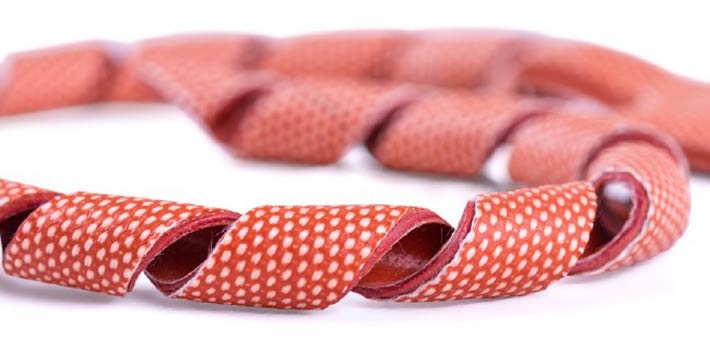

  • Spiral Wrap Pre-Formed Silicone Rubber Heaters
    • Suitable for tubes and flexible pipes and hoses with Ø 6,35 mm (1/4")
    • Can be used up to Ø 12 mm (the length of the stretchable silicone spiral wrap heater is reduced accordingly)
    • Thickness of spiral-wrapped silicone strip heater: 2,2 mm
    • 500 mm PTFE-leads
    • Termination area: 25 x 36 mm
    • Bespoke heaters for bigger diametres or different lengths available on request
    • Additional sensor (thermocouple, PT 100) for external temperature control available on request
reference Nominal length for
tube-Ø 6,35 mm (1/4")
(80% surface coverage)
Extended length for
tube-Ø 6,35 mm (1/4")
(60% surface coverage)
power (at 240V)
3854.020 375 mm 440 mm 19,5W
3855.010 475 mm 550 mm 25W
3857.007 612,5 mm 720 mm 33W
3858.003 780 mm 900 mm 45W
3850.013 1020 mm 1150 mm 52W
Sprial wrap pre-formed silicone rubber heaters

Production process of flexible silicone rubber heaters

There are two different manufacturing techniques for silicone rubber heaters, which have different benefits depending on the number of units, geometry, layout of heating tracks, thermal load and the application.

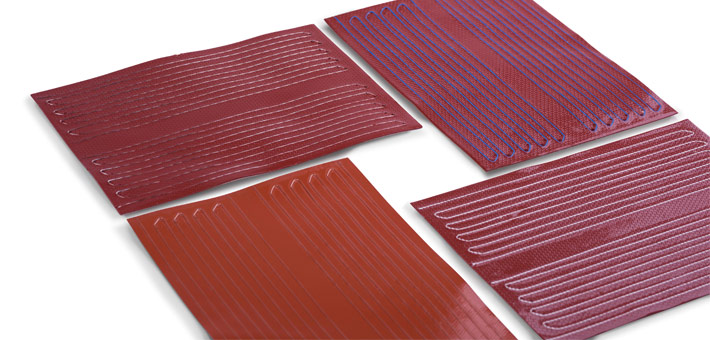

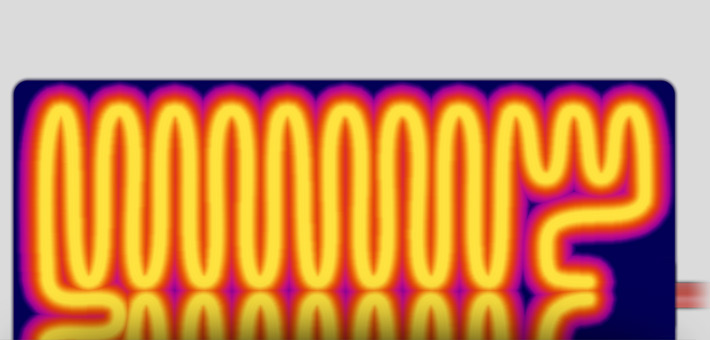

  • wire wound

For lot sizes below 50 pieces silicone heaters are usually manufactured using resistance wire laid manually in a meandering pattern with the help of a pin board. If necessary, a special heating wire can be used, which withstands mechanical stresses by thermal expansion even better. This wire is used especially in very large silicone heating mats, or mat heaters which are moved more frequently. Since a pin board is sufficient as a tool, only low design costs are incurred, which makes this manufacturing process interesting for individual production with low volumes.

  • etched foil

For larger batch sizes or silicone heaters with many holes and complex layouts, the heating tracks are produced by vulcanising a special alloy foil to the silicone and then printing and etching the foil to create the circuit. The heat distribution in these heaters is more homogeneous than in wire wound, as the foil tracks are flat and the distances between the tracks are smaller than with wire. Furthermore, the degree of automation in this process is higher, which increases reproducibility and, not least, cost-effectiveness for larger quantities. Varying power densities across the surface of the silicone heating element can easily be designed using etch foil technology.

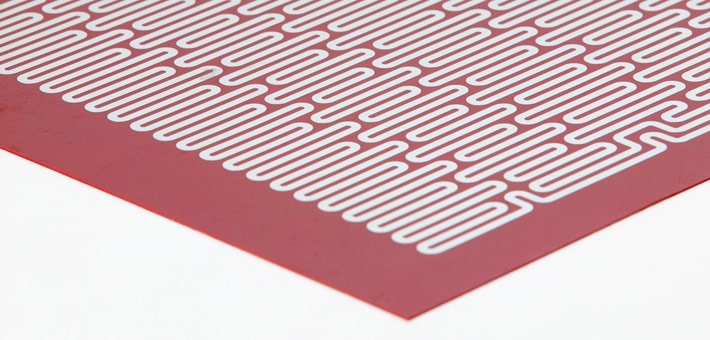

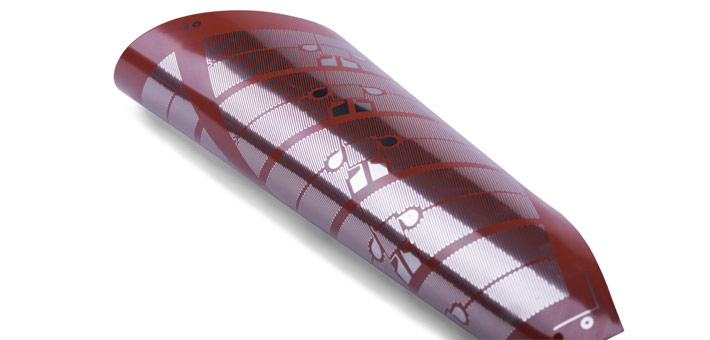

Semi-finished silicone heater with etched foil

Mounting options for silicone rubber heaters

There are many different ways to attach silicone heaters. Which is the best solution depends primarily on the application, but also on the shape and size of the heating mat. In the case of a high surface load on the silicone mat heater, for example, a good heat transfer is particularly important and fastening with silicone straps is not recommended.

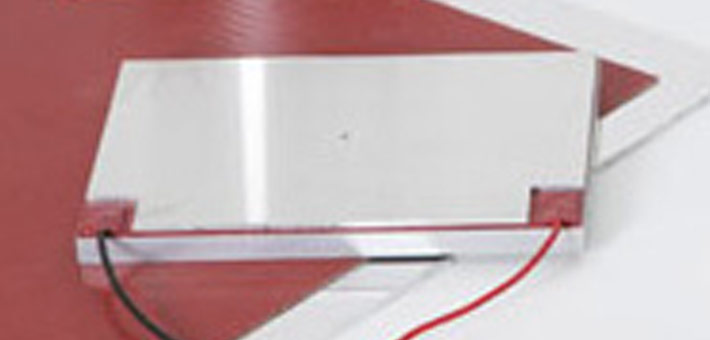

  • Press-fit
    • Removable
    • temperature resistant up to 200 °C
    • termination area and attachments such as limiters and the connection area must be left out in the pressure plate
    • screw-on pressure plate required
    • risk of partial overheating due to inhomogeneous contact pressure
    • risk of mechanical damage of the silicone heater by burrs or sharp edges on the metal plates

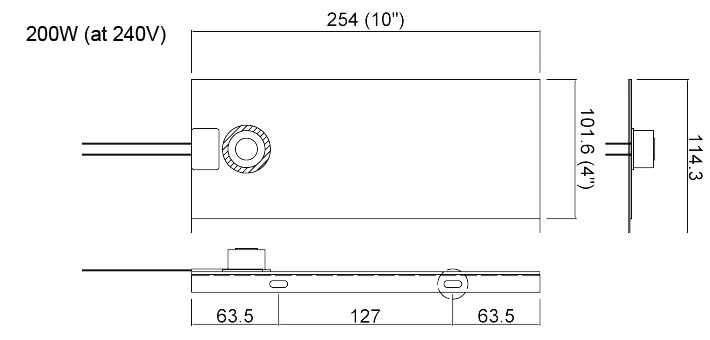

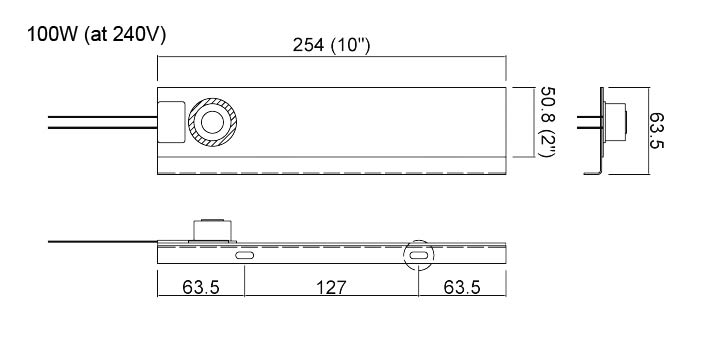

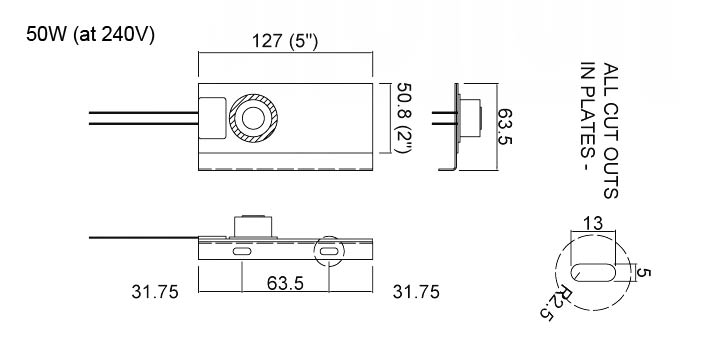

  • vulcanising
    • not removable
    • temperature resistant up to 200 °C
    • Ideal heat transfer
    • Can only be made in the factory by the manufacturer

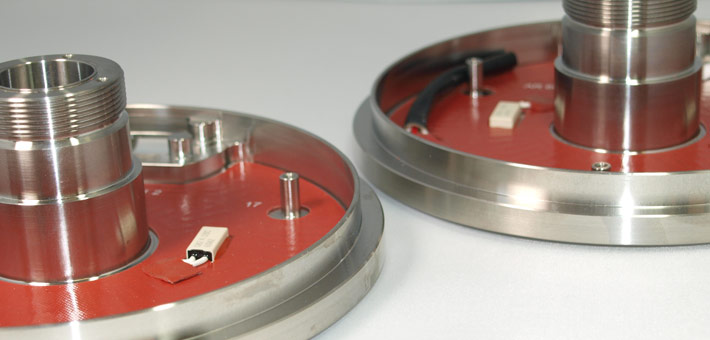

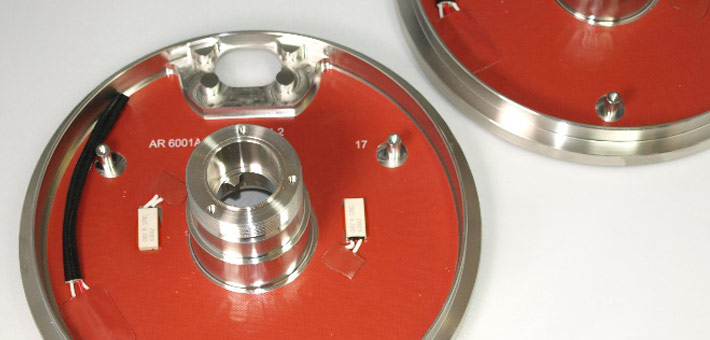

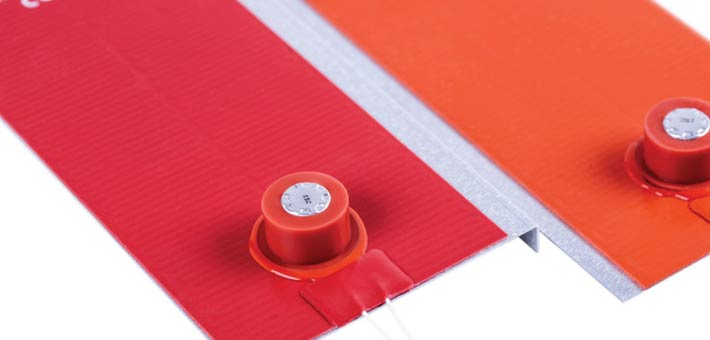

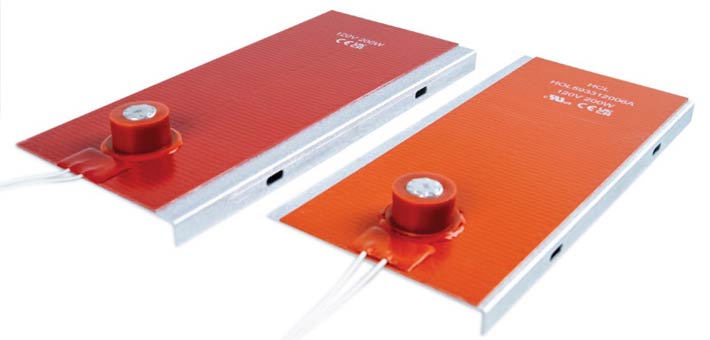

Silicone heater with limiter, vulcanised to free-issued part

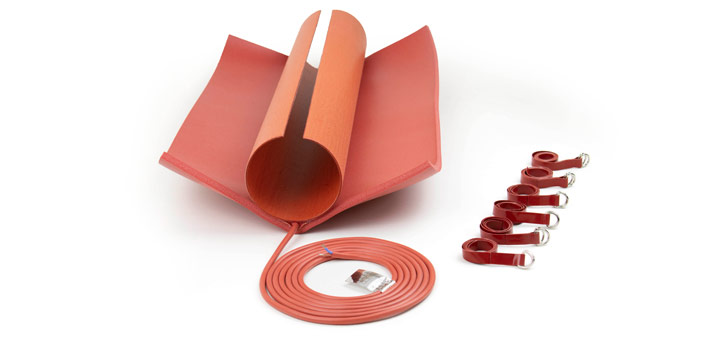

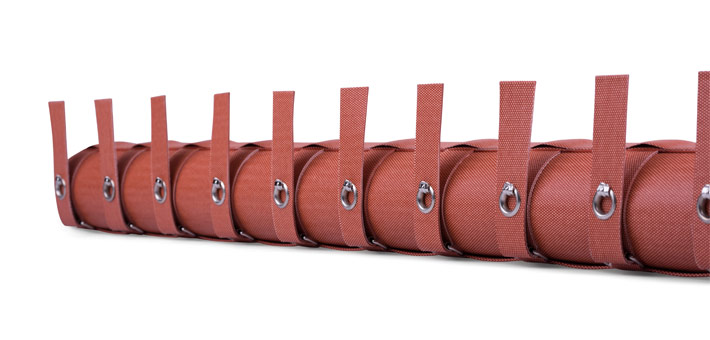

  • Silicone straps
    • removable
    • for cylindrical or rounded contact surfaces
    • suitable for preformed flexible silicone rubber heaters up to Ø 250 mm
    • wears quickly when used regularly
    • width: 12 mm (25 mm for larger silicone heaters)
    • temperature resistant up to 180 °C

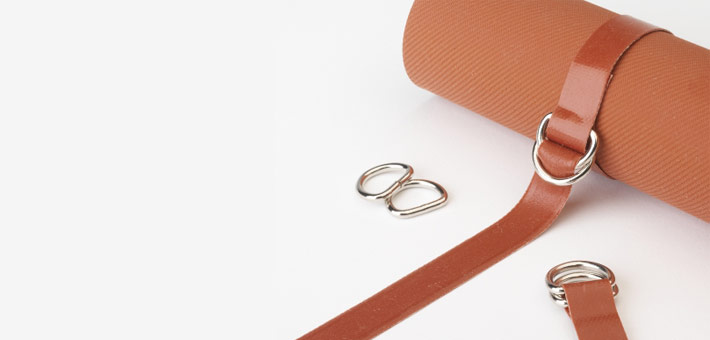

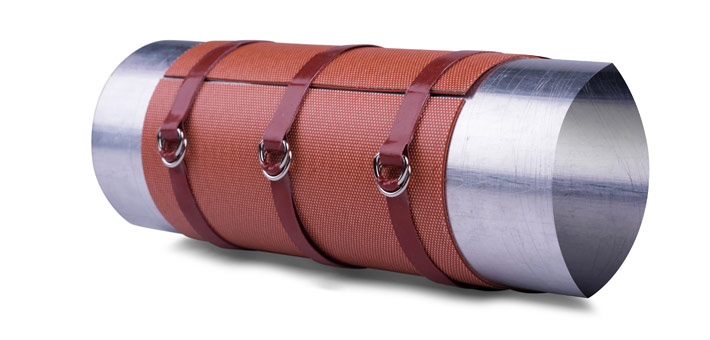

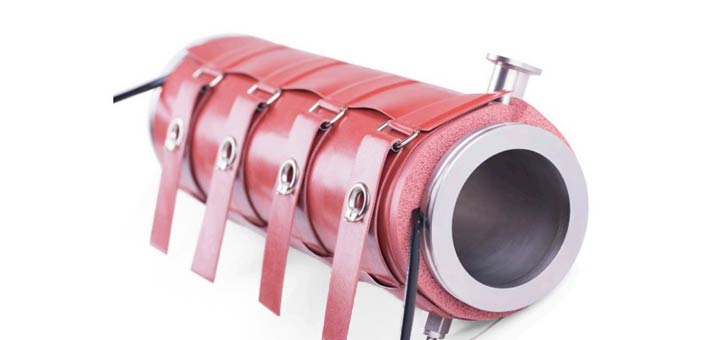

Silicone heater for a tube with silicone straps and D-rings

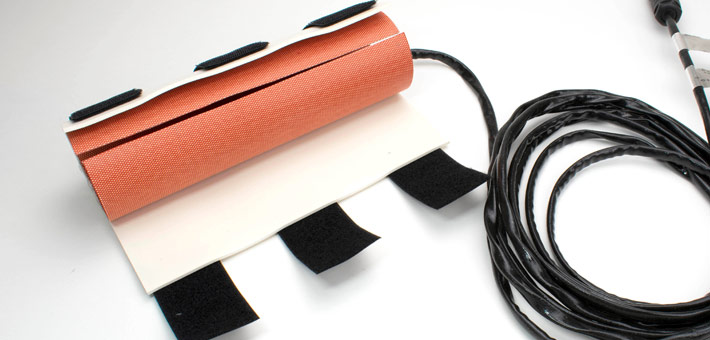

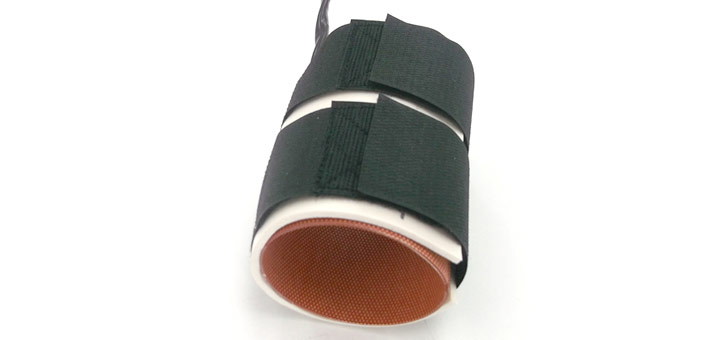

  • Velcro
    • removable
    • for cylindrical or rounded contact surfaces
    • sewn direct or indirect on heater
    • area around Velcro is not heated, when sewn on direct
    • width: 15 / 20 / 25 / 50 / 100 mm
    • Velcro resistant up to 80 °C

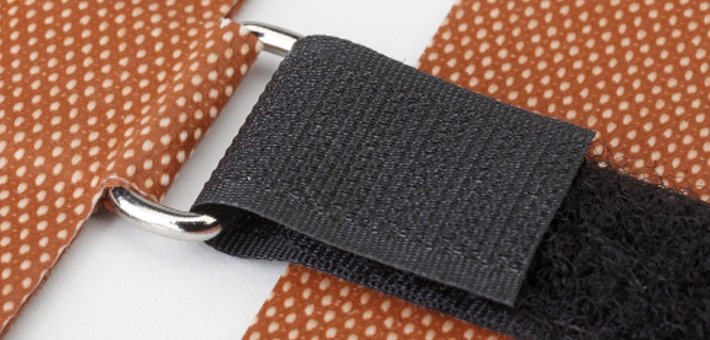

Silicone hater with velcro and eyelet

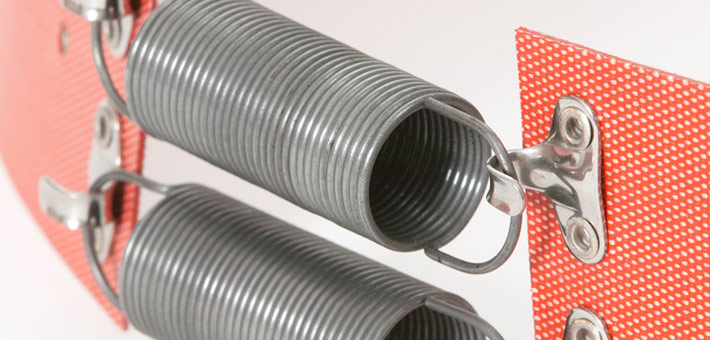

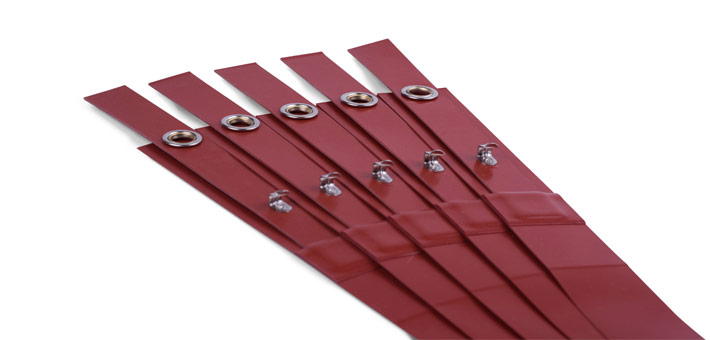

  • hooks & springs
    • removable
    • Variable clamping elements (hooks, eyes, straps, springs)
    • Under hooks / eyelets and in the clamping area unheated
    • Also suitable for conical shapes
    • Springs suitable from Ø 100 mm

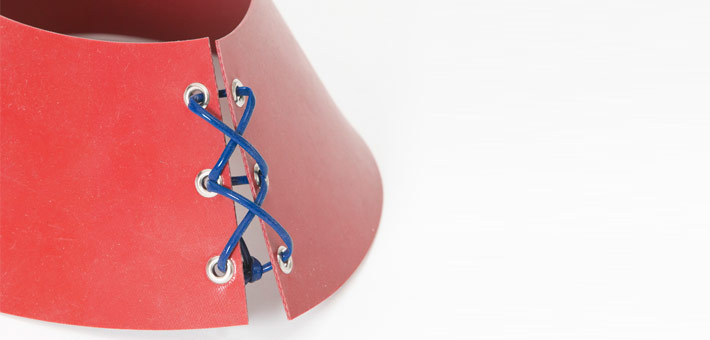

Silicone heater for conical shape, stretched over eyelets

Sensors

The silicone heaters can be equipped with sensors, limiters and fuses of all kinds. In the following we present the most common variants, which are usually available in production. However, it is also possible that you provide parts that we apply to the silicon heater pad.

In your design, you should note that these components usually cannot be installed flush with the heating surface.

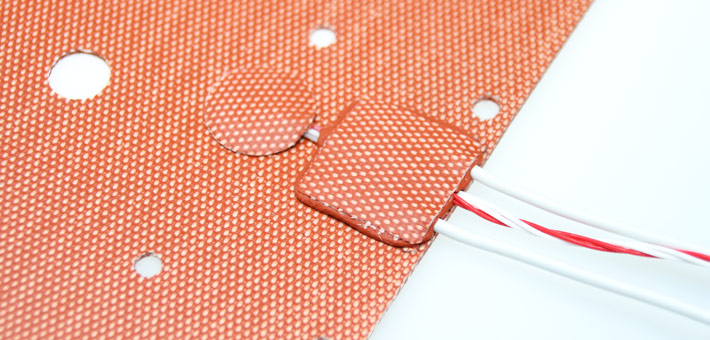

  • Pt 100 / PT 1000 / thermocouple type J / NTC / PTC
    • For temperature reading and further processing by a controller
    • Can be placed anywhere on the silicone heater surface (if the position is not defined, the sensors are placed near the connection area)
  • It is not possible to fit SMD parts

Temperature limiters / fuses

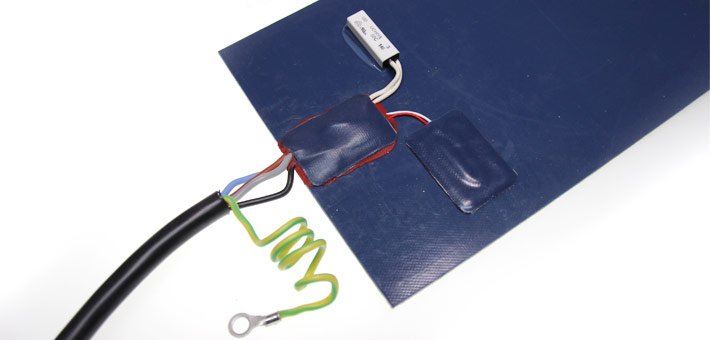

  • Uchiya
    • 50 – 140 °C in 10 °C-steps
    • Overtemperature protection
    • Bimetal switch
    • Encapsulated design - low overall height
    • Appr. 10,000 switching cycles
    • Suitable for 230V AC / max. 10A
    • Hysteresis 30 – 40 °C
  • 1/2" Disk
    • 5 °C, 13 °C, 20 – 200 °C in 10 °C-steps
    • Overtemperature protection
    • Bimetal switch
    • Open design – must be covered with silicone hat
    • Appr. 100.000 switching cycles
    • Suitable for 230V AC / max. 10 A
    • Hysteresis 10 – 20 °C

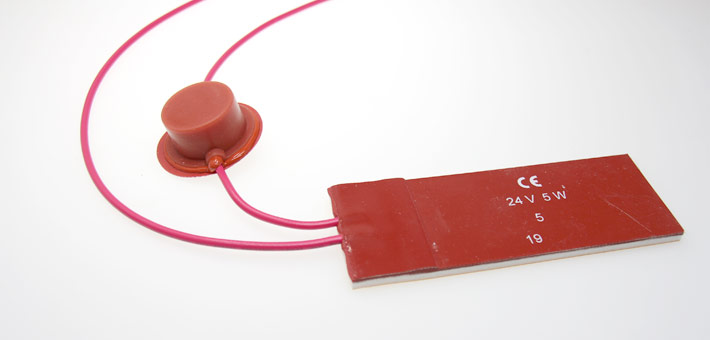

    • Can be installed in leads for anti-freeze applications

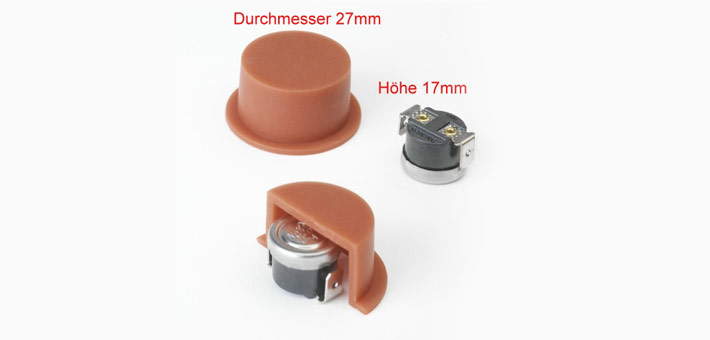

Limiter 1/2" disk with suitable cover

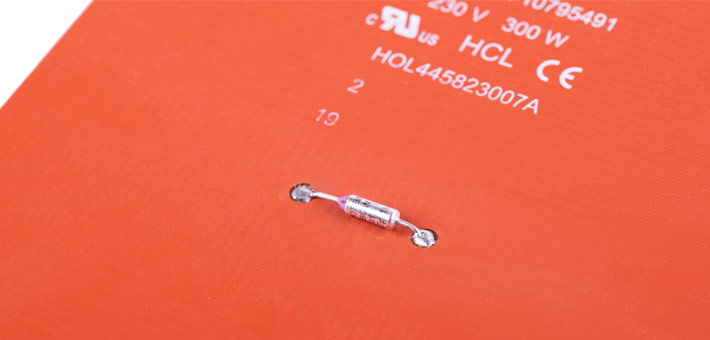

  • Diverse fuses
    • Single Shot Over temperature protection
    • When the fuse is tripped, the circuit is interrupted until the heater is replaced or the fuse is reset (depending on the type of fuse)
    • Typical models are NEC/Schott SF-R andMicrotemp G4
  • Various special components

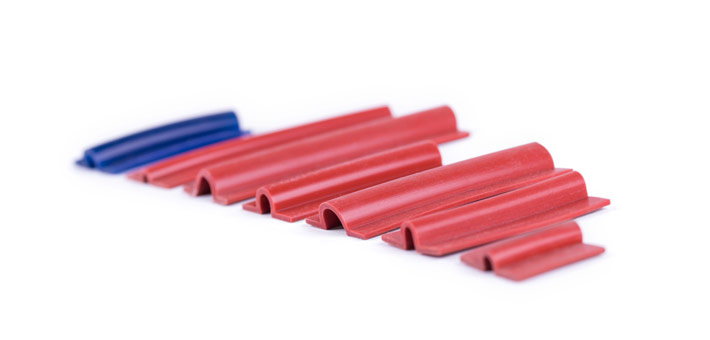

    • Pockets for capillary thermostats and sensor probes, available in Ø 3,4, 6 und 8 mm
    • Length as required

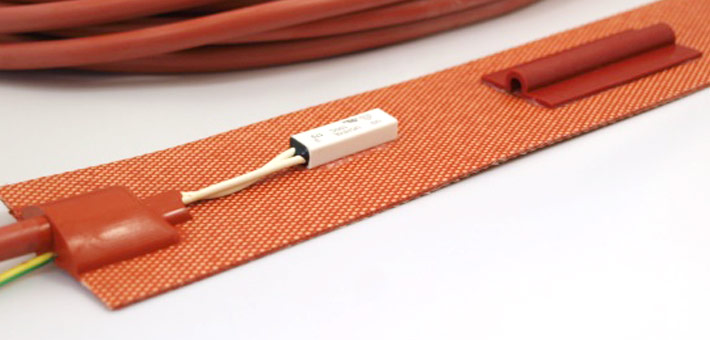

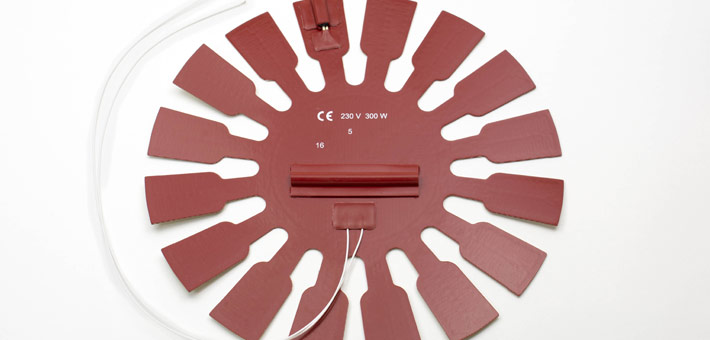

Silicone heater with limiter Uchiya, pocket for capillary thermostat and silicone cable

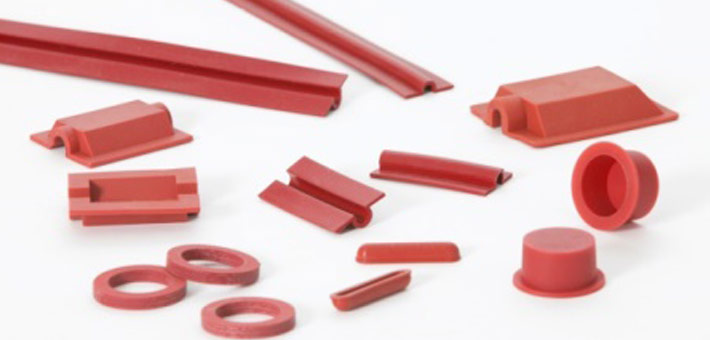

  • Pockets, hats and enclosures for all kinds of components

Leads for silicone rubber heaters

You are free to choose the type, length and position of the connection cable. Please note that the connection area is always slightly thicker than the rest of the silicone heater pad. You can see this very well on the following pictures, which show the most common options. If you do not specify any special requirements, we generally assume 1000 mm PTFE leads in the middle of the short side. The length and type of the connection cable can be easily changed for subsequent orders of an existing design; a new design / tool must be created to change the position.

  • PTFE-leads (standard)
    • Low construction height
    • Resistant up to 190 °C
    • Flexible and robust
    • Max. IP62

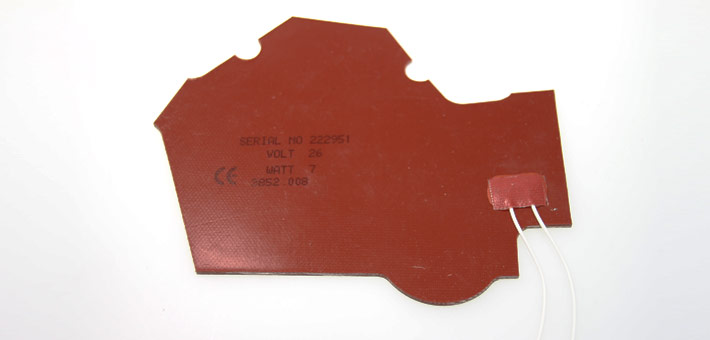

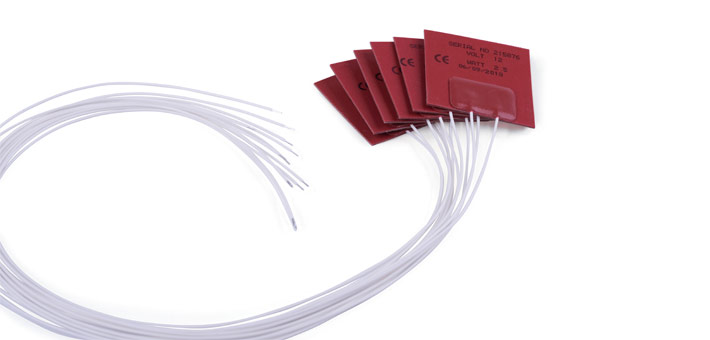

Silicone heaters with PTFE-leads

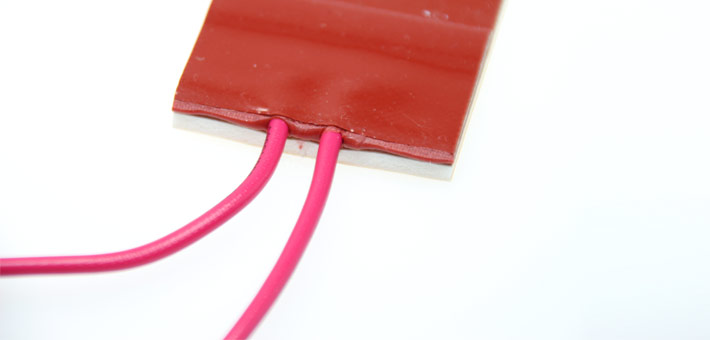

  • Silicone leads
    • Low construction height
    • Resistant up to 180 °C
    • Very flexible but less robust than PTFE leads
    • Max. IP64

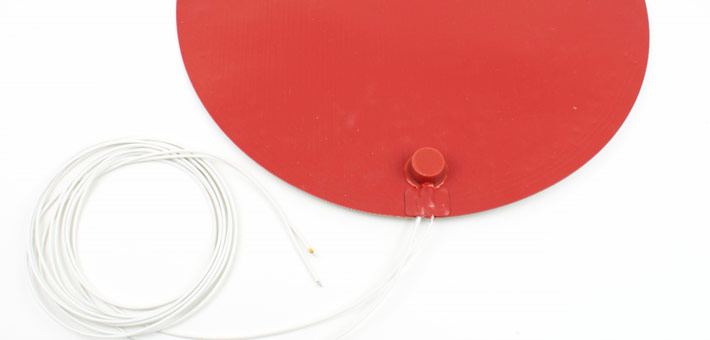

Round silicone rubber heater with limiter 1/2" disk and silicone leads

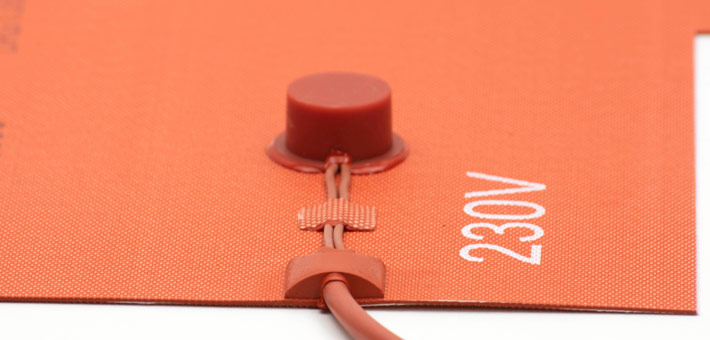

  • Silicone cable
    • Resistant up to 180 °C
    • Robust
    • No single wires (i.e. solid single wire)
    • 5adrig with PT 100 available
    • IP64 standard (IP65 possible)

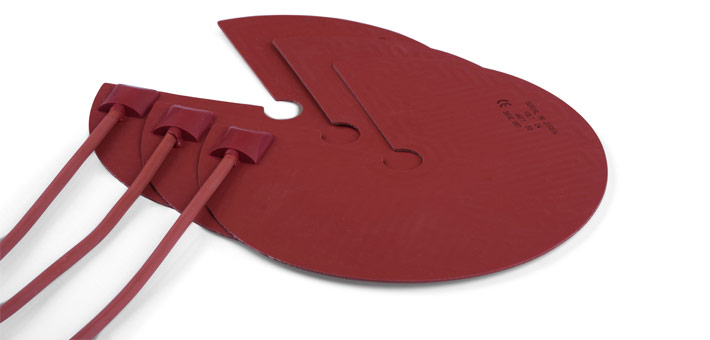

Silicone heaters with silicone cable
  • Ground lead
    • Has to be contacted on site as silicone heating mats do not have metal parts on the outside

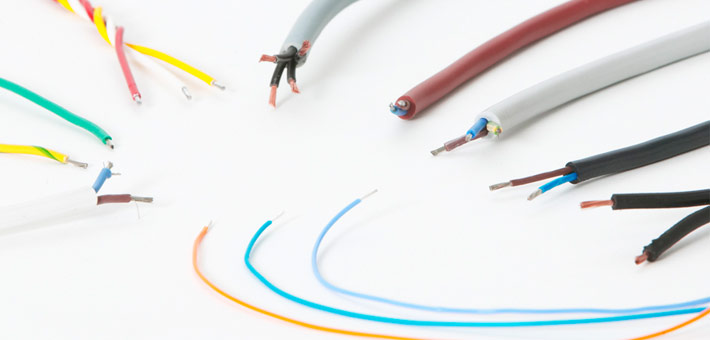

  • Various other leads and cable
    • (HO7RN-F cable)
    • PVC

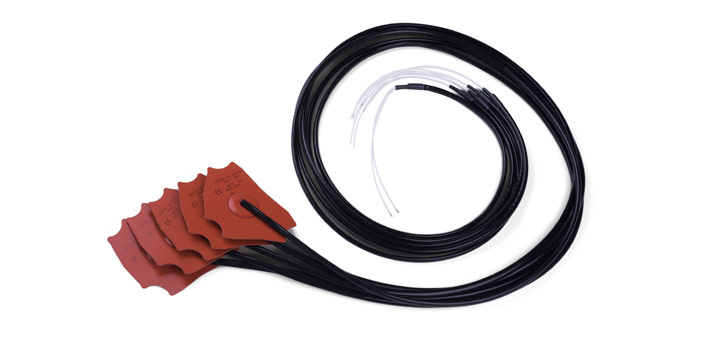

Protection sleeve

In the case of silicone heaters, leads are less often fitted with protective hoses than is the case with most other types of heaters. Thermal protection in particular plays only a subordinate role due to the comparatively low operating temperatures. For mechanical protection, however, there are options such as silicone/fiberglass sleeve or heat-shrinkable tubing.

The use of a protective conduit above the leads is recommended as a second insulation and in order to be able to lay the leads better. Fixing the hose under the connection pad is advisable, but also leads to a thicker termination area.

  • Silicone/Fibre glass sleeve
    • Ø 3 – 12 mm
    • Resistant up to 235 °C

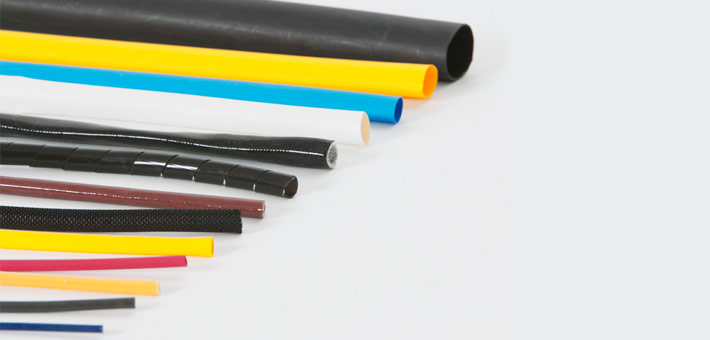

Several sleeve varations

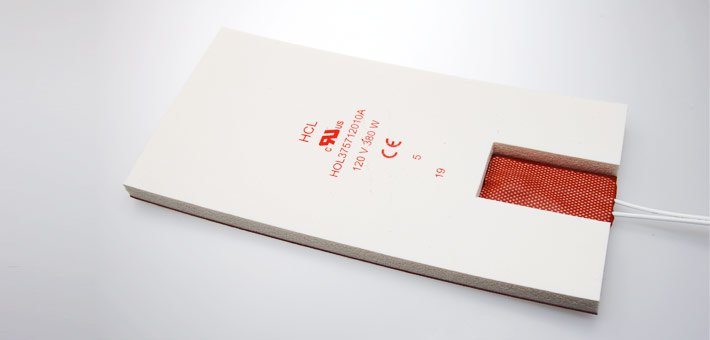

Silicone foam

Silicone foam can be applied to the silicone rubber heating element for thermal insulation. A main field of application for such insulated silicone heaters is e.g. semiconductor production. Here, vacuum piping systems are heated and insulated in this way.

  • Silicone heating mats insulated with silicone foam
    • Shore-hardness: 42 +/- 5
    • Density: 250 +/- 40 kg/m3
    • Resistant up to 230 °C
    • UL
    • Thickness:
      • 3 mm (also adhesive)
      • 5 mm (also adhesive)
      • 8 mm
      • 12 mm
  • For thermal insulation
  • As protection for termination and sensors etc.

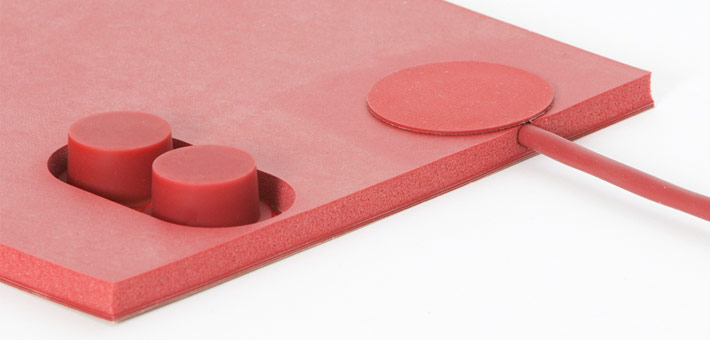

Silicone heater mat with silicone foam, 2 limiters 1/2" disk and silicone cable

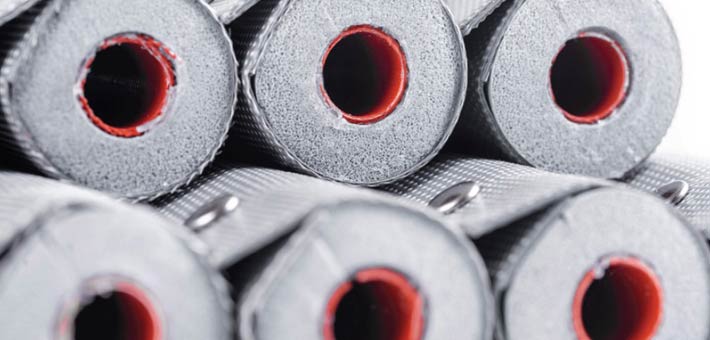

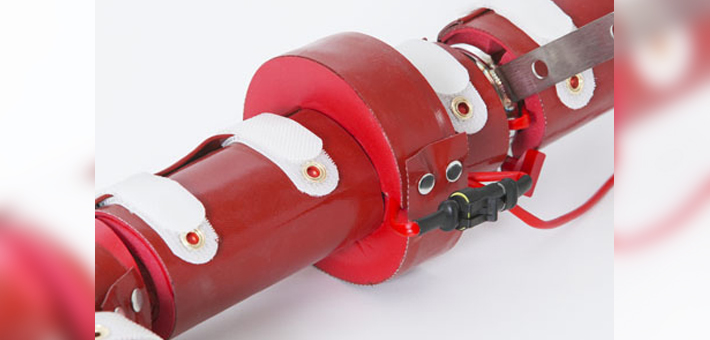

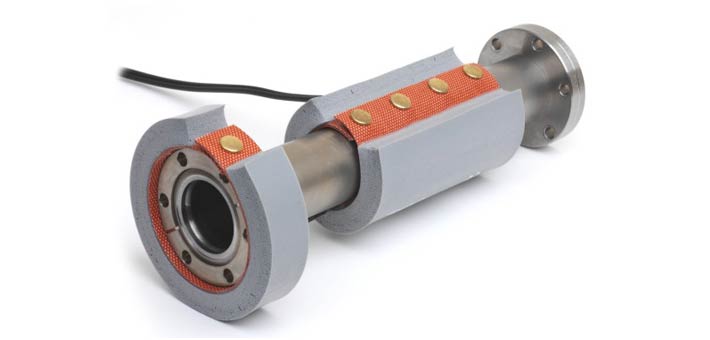

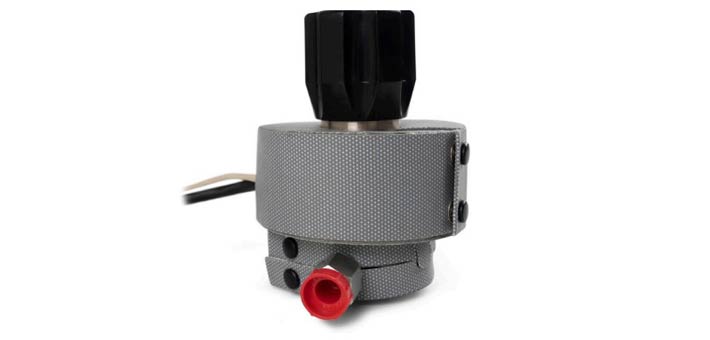

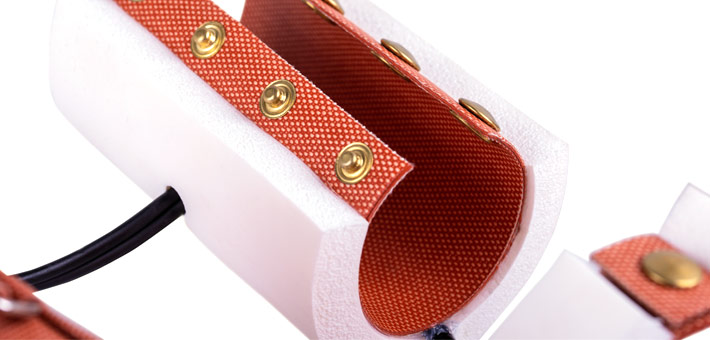

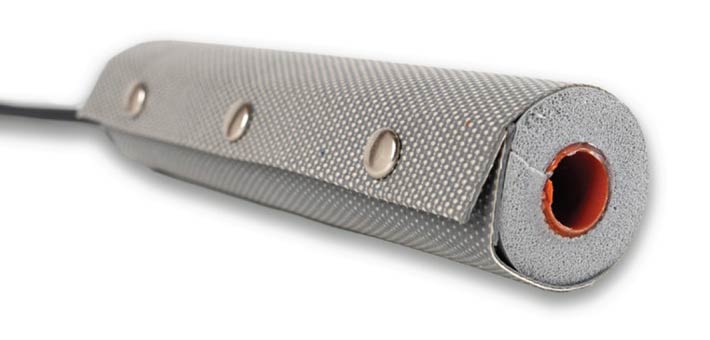

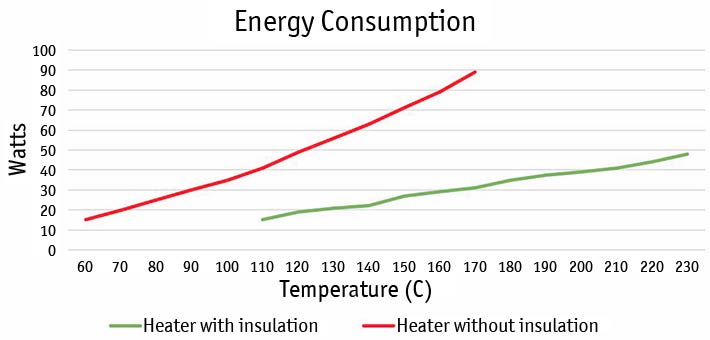

  • Insulation and silicone heating jackets for piping systems
    • Tubular forms for pipes, cuboid forms for pumps, valves etc.

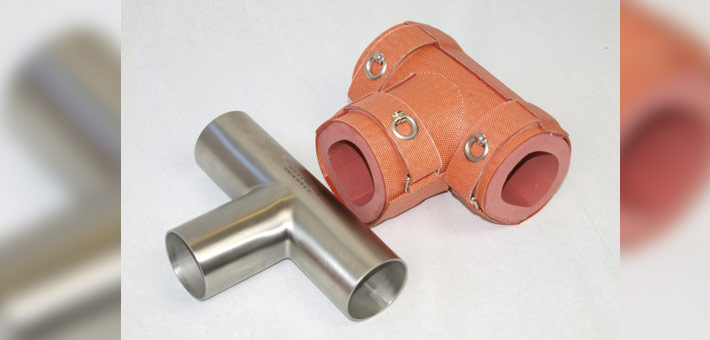

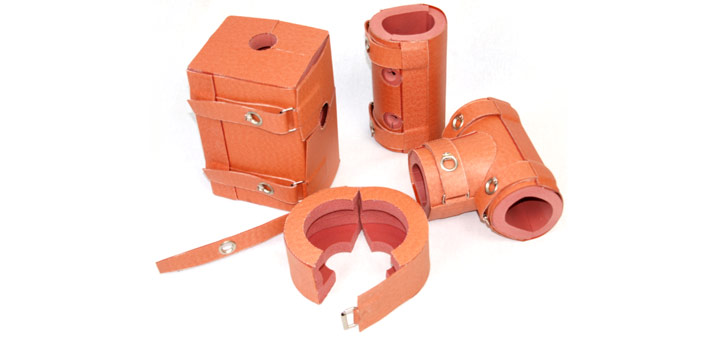

Several silicone foam insulations for tubes, valves and t-pieces

Conformities & standards

Our flexible silicone rubber heating elements are manufactured according to the strictest test criteria and meet all relevant standard requirements and safety specifications as far as these are applicable due to the nature of the product. General certificates of conformity relating to organizations or product groups can be downloaded in our download centre under Service > Quality. Product-specific confirmations are available on request.

  • certifications
    • CE
    • RoHS
    • UL/CSA (Optional with surcharge, only possible with UL-CSA approved accessories)
    • VDE (Optional with surcharge, only possible with VDE approved accessories)
    • EAC (Optional with surcharge)
CE RoHs UL CSA VDE EAC

Printing of Silicone Heaters

  • Inkjet printing
    • black
    • Used for low volume orders
    • Without additional costs
    • Can include different details on different batches (serial number)
    • Cannot include logo
    • Semi-permanent (can be rubbed off)

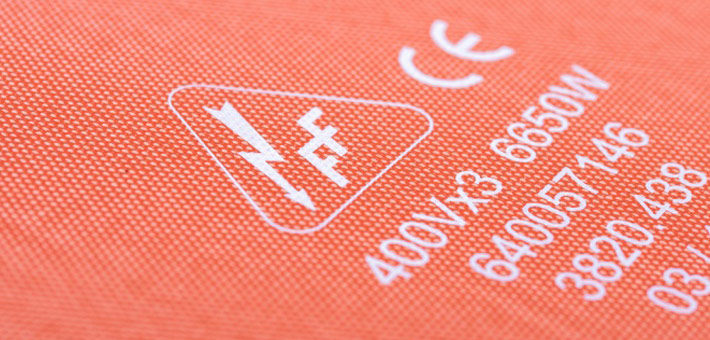

  • Silicone ink screen printing
    • White
    • Used for high volume orders
    • Can include logos (in a single white colour)
    • Additional costs for printing screen (usually included in tooling costs for etch foil silicone heaters)
    • Requires a new tooling when details change
    • permanent
  • Silver label on cable or leads
    • for silicone mat heaters that are difficult to position under inkjet printer or very small heater pads where there is not enough space

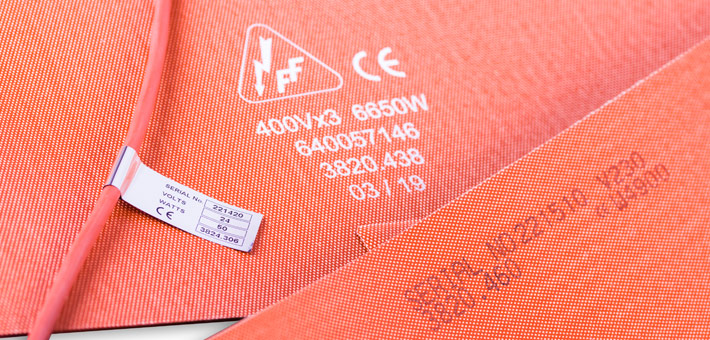

Different types of printing or labelling silicone rubber heaters


Downloads:

  • Flyer Silicone Heater Mats
    Flyer Silicone Heater Mats

    Flexible heating elements made from silicone or Kapton insulation are thin and lightweight so can be installed where space is limited, and due to their low mass they have a fast response to temperature control. The self-adhesive foil option allows for a quick and uncomplicated fixing. The operating temperatures range from -60°C to 200°C. (180°C With adhesive backing).

  • Surface Temperatures of Silicone Heater Mats

    It is generally impossible to predict which temperature can be reached by a heater mat as there are plenty of influencing factors. Among them are beside the power, also weight and type of the material to be heated, ambient temperature, air flow and, naturally, the process control. The table shows which temperature will be reached on a mat in relation to the watt density and without temperature control.

  • Operating Instructions Silicone Heater Mats
