Stationary Controller UnitDownloadsInquiry Form

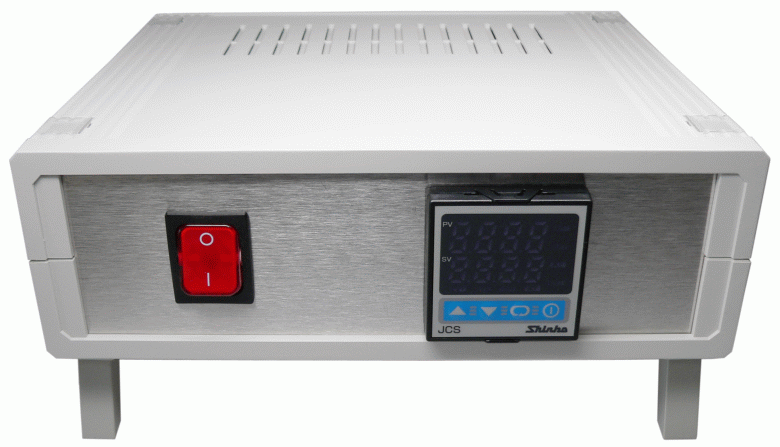

Stationary Controller Unit [1 / 2] This series have been developed in order to cover the need for easy-to-use controllers without dispensable accessories. However, the controller unit has a fast micro processor with self-optimizing. Typical applications for this series are simple control paths. As this series is not prepared for additional extras, it distinguishes by an excellent price-performance-ratio.

Mechanical data

  • Dimension: 200 x 150 x 75 mm
  • Body: Plastic body / front und back aluminum
  • Operation: Via front foil display / Menu navigation with symbols

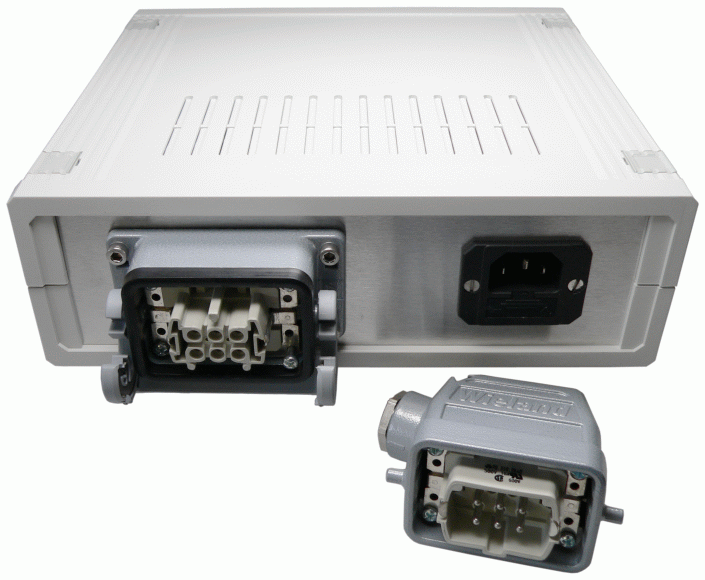

  • Terminations: 6 pin Harting-plug (without ground lead)
  • Fuse: Fuse 10A swift
  • Conformity: CE : EN 55011, Gruppe 1, Klasse A / EN 50082-2 / EN 61010 / UL / CSA

Thermocouples according to IEC 584; Pt100 according to IEC 751
