Often the power of the heating element is too high to be switched directly by the controller. In this case conventional contactors or electronic solid state relays are needed.

The JCS 33A/R can switch max. 3A (690W) at 230V AC with its internal relay. For higher currents and permanent operation it is necessary to use a controller with a direct current output (S) to drive a solid state relay. The output creates a potential free current of 12V being able to switch one of the following solid state relays:

Main field of applications

  • Thermoforming
  • Plastic extrusion lines
  • Packaging machinery
  • Industrial ovens and furnances
  • Filling machines

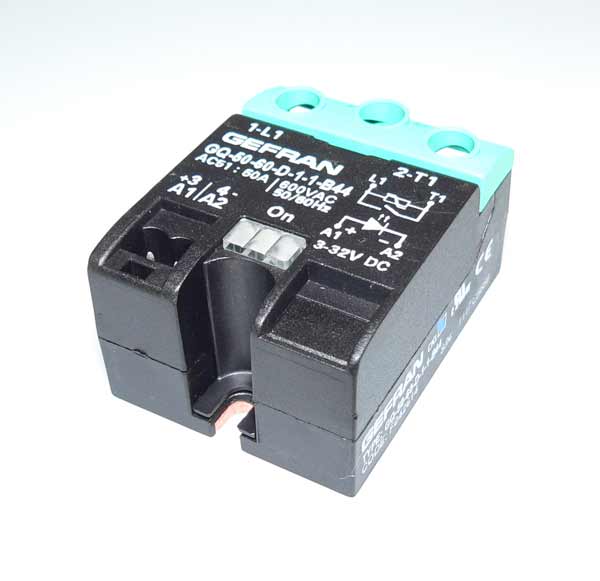

Solid state relay TXSS.001 Solid state relay TXSS.001

480 V / 16 A

Use: to be mounted on a metal sheet or a plastic surface, not cooled only applicable up to 16 A


Solid state relay TXSS.010 Solid state relay TXSS.010 with socket for DIN rail mounting

480 V / 16 A

Use: to be mounted on a standard top DIN rail, not cooled only applicable up to 16 A

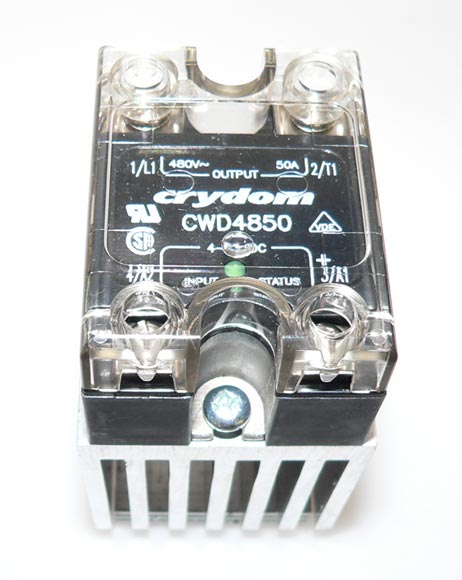

Solid state relay TXSS.002 Solid state relay TXSS.002 with cooling unit and socket for DIN rail mounting

480 V / 32 A

Use: to be mounted on a standard top DIN rail, applicable up to 32 A

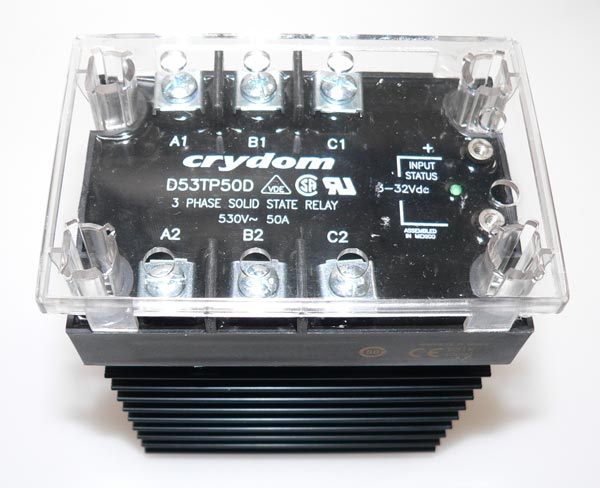

Solid state relay TXSS.003 Solid state relay TXSS.003 3-phase with cooling unit and socket for DIN rail mounting

480 V / 32 A

Use: to be mounted on a standard top DIN rail, applicable up to 32 A
