Multi Channel Control UnitDownloadsInquiry Form

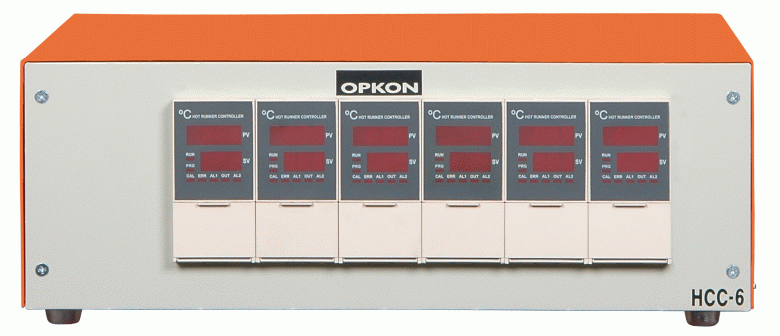

Multi Channel Control Unit [1 / 2] A new part of our controller spectrum is the multi channel control unit developed for hot runner applications. Available with four, six, eight and twelve channels this units shows a perfect possibility to have a secure, easy to handle controller with a very good price/performance ratio. Each channel is able to handle up to 10A at an individual level. At thermocouple brake each controller has the option for proportional work mode.

The metal case of the multi channel controller is robust and designed for everyday operation in the injection moulding production. Power supply is via 3 metre cable with CEE plug. The controller has been designed to meet the requirements of hotrunner applications. The preset control parameters and abandoning dispensable options make the controller comprehensible and operable for everyone.

Electric data

  • Microcontroller for each channel separately
  • 16 Bit high resolution A/D converter
  • Controlling up to 1 °C for each channel
  • Soft Start selectable (soft start up to 150 °C)
  • Thermocouple type J (Fe-CuNi) preset
  • Alarm when thermocouple breaks
  • Controlling with proportional turn on time when thermocouple is broken
  • Supply via CEE plug (depending on number of channels 16A or 32A)

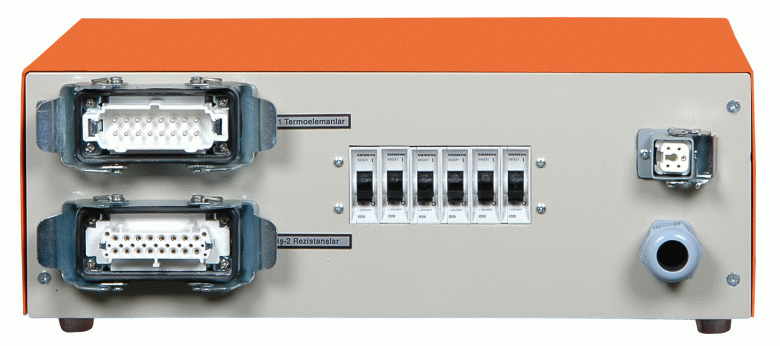

  • Output with industrial plugs (heater and sensor separately)
  • 3m cable to machine with industrial plugs
  • External accumulative alarm for all units (additional display at controller)
  • Each channel secured separately
