LeadsDownloads

Silicone leads

  • Conductor: Copper tin plated, Silicone insulation
  • Permanent temperature resistance up to 180 °C
  • different colours, lengths or cut
Cross section
Single Leads cross section Cables cross section
0,75 mm² VDE 3 x 0,5 mm²
1,00 mm² VDE 2 x 0,75 mm²
1,50 mm² VDE 3 x 0,75 mm²
1,31 mm² (AWG 16) UL 3 x 1,0 mm²
0,82 mm² (AWG 18) UL 3 x 1,5 mm²

PTFE leads

  • Conductor: Copper nickel plated, Pure Nickel, PTFE insulation
  • Permanent temperature resistance up to 260 °C
  • different colours, lengths or cut
Cross section
AWG 18/7 (0,823 mm²)
AWG 20/7 (0,519 mm²)
AWG 22/7 (0,325 mm²)
AWG 24/7 (0,205 mm²)
0,75 mm²
1,0 mm²
1,5 mm²

Fibreglass leads

  • Conductor: pure nickel, fibreglass silicone impregnated insulation
  • Permanent temperature resistance up to 300 °C (fix application)
  • lengths or cut, with terminals on request
Cross section
0,22 mm²
0,50 mm²
0,75 mm²
1,00 mm²
1,50 mm²
2,50 mm²
4,00 mm²

High temperature leads

  • Conductor: pure nickel, special fibreglass insulation
  • Permanent temperature resistance up to 500 °C (fix application)
  • lengths or cut, with terminals on request
Cross section
1,0 mm²
1,5 mm²
2,5 mm²

Thermo leads

  • PTFE or Fibreglass on request

Thermo Compensating Leads

Type J Type K Type L
DHG = Braided metal sleeve
Further types on request
2 x 0,35 mm²
fibreglass 250 °C, DHG
2 x 0,35 mm²
fibreglass 250 °C, DHG
2 x 0,35 mm²
fibreglass 250 °C, DHG
2 x 0,35 mm²
fibreglass 450 °C, DHG
2 x 0,35 mm²
fibreglass 550 °C, DHG
2 x 0,35 mm²
fibreglass 450 °C, DHG
2 x 0,22 mm²
silicone 180 °C, silicone
2 x 0,22 mm²
silicone 180 °C, silicone
2 x 0,22 mm²
silicone 180 °C, silicone

Terminals and connectors

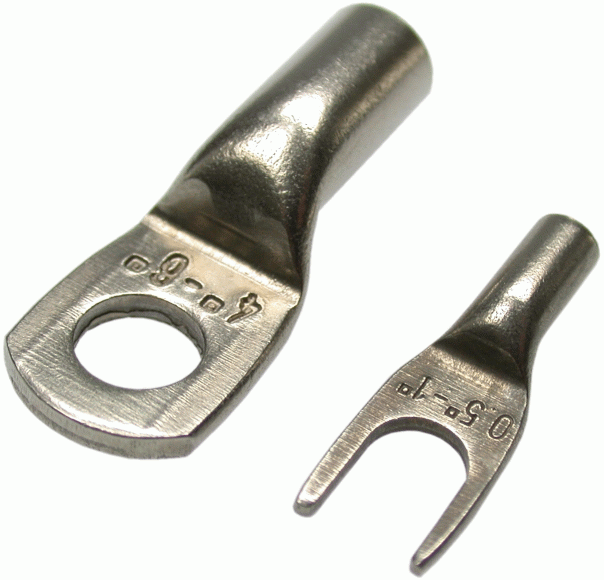

Terminals and connectors Ring and eye terminals

  • Eye terminal without insulation für M4, 4-6 mm², pure nickel
  • Eye terminal without insulation, für M4, 0.5-1 mm², pure nickel
  • Eye terminal with insulation, für M5, 4-6 mm², pure nickel
  • Ring terminal, dia. 6.5 mm, 6 mm², stainless steel

The a/m leads are available cut in requested lengths with usual terminals and/or connectors.



Downloads:

  • Chapter Accessories
    Chapter Accessories

    Small quantities, perfect supplement: It´s not just the heaters that count - everything around does, too. We supply connection components and accessories in order to optimise the use of our heating elements.
